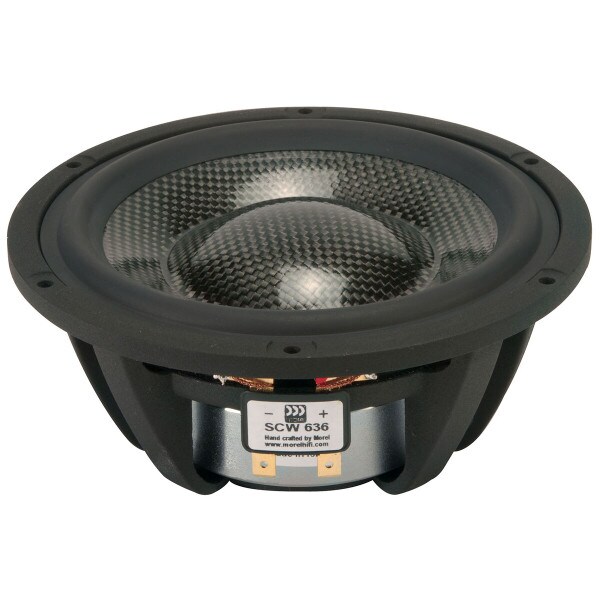

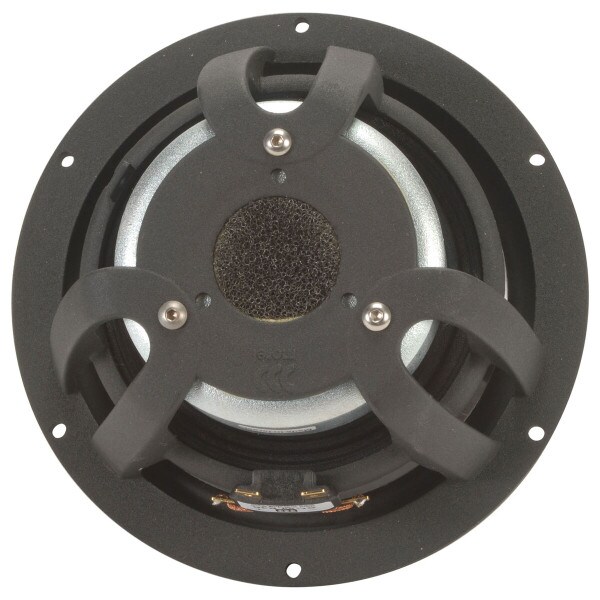

Morel Supreme SCW 636 6" Woofer

Morel
Part #297-114

Morel Supreme SCW 636 6" Woofer

Morel
Part #297-114
Model: Supreme SCW 636
The Morel Supreme Series SCW636 woofer features a 16 mm long, 3" diameter Hexatech voice coil that provides plenty of deep bass punch, and a copper-covered pole piece design reduces inductance.
Key Features
  • Carbon fiber/Rohacell/carbon fiber composite sandwich cone
  • 3" Hexatech&#153 aluminum voice coil
  • Copper pole piece sleeve reduces inductance
  • Hybrid&#153 neodymium/ferrite magnet
  • Uniflow&#153 aluminum diecast chassis
  • High power handling
Your Price: $512.00
+ FREE SHIPPING
MSRP: $634.99
Save $122.99 (19%)
Bulk Pricing
Order in the next 13 hr 22 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel Supreme SCW 636 6" Woofer

The Morel Supreme Series SCW636 woofer features a 16 mm long, 3" diameter Hexatech voice coil that provides plenty of deep bass punch, and a copper-covered pole piece design reduces inductance. Morel's Uniflow open frame virtually eliminates diaphragm back pressure and excursion noise.

Product Details

BrandMorel
ModelSupreme SCW 636
Part Number297-114
UPC844632070839
Unit of MeasureEach
Weight3.1

Product Specifications

Nominal Diameter6"
Power Handling (RMS)150 Watts
Power Handling (MAX)1000 Watts
Impedance6Ω
Frequency Response30 to 5,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)40Hz
DC Resistance (Re)4.5Ω
Voice Coil Inductance (Le)0.29mH
Mechanical Q (Qms)1.76
Electromagnetic Q (Qes)0.35
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)0.65ft³
Mechanical Compliance of Suspension (Cms)0.97mm/N
BL Product (BL)7.2T·m
Diaphragm Mass Inc. Airload (Mms)16g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)119cm²

Materials of Construction

Cone MaterialCarbon Fiber Composite
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.3"
Baffle Cutout Diameter5.512"
Depth2.72"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.26ft³
Sealed F374.4Hz
Vented Volume0.5ft³
Vented F338.4Hz
