Morel MW-1075 10" Woofer

Morel
Part #297-045

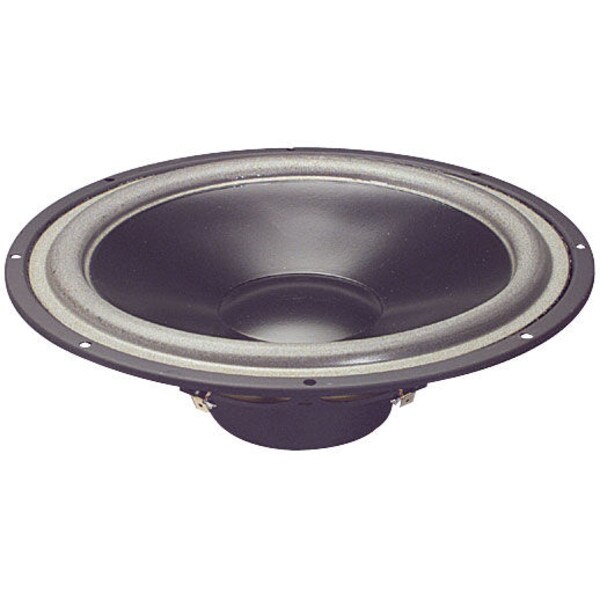

Morel MW-1075 10" Woofer

Morel
Part #297-045
Model: MW 1075
Excellent for both 2 and 3-way systems, this 10" woofer features a damped polymer composite cone with a smooth transition to the rubber surround, vented double magnet, and a 3" Hexatech voice coil. Smooth response to 3 kHz with excellent bass reproduction.
Key Features
  • Double magnet system mounted inside the divers voice coil for maximum flux density
  • Large 3 " voice coil wound with hexagional wire impoves power handling
  • Vented pole piece allow ample ammonts or air to the voice coil.
  • Low profile poly cone has amazing damping characteristics
Your Price: $227.00
+ FREE SHIPPING
MSRP: $307.99
Save $80.99 (26%)
Bulk Pricing
Order in the next 5 hr 41 min to ship today. Details

Only 2 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel MW-1075 10" Woofer

Morel's MW-1075 10" woofer features a damped polymer composite cone with a rubber surround, vented double magnet, and a 3" Hexatech voice coil. Smooth response to 3 kHz with excellent bass reproduction makes this woofer ideal for use in 3-way speaker systems.

Product Details

BrandMorel
ModelMW 1075
Part Number297-045
UPC844632019821
Unit of MeasureEach
Weight3.96

Product Specifications

Nominal Diameter10"
Power Handling (RMS)180 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response20 to 1,600Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)29Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.63mH
Mechanical Q (Qms)2.48
Electromagnetic Q (Qes)0.83
Total Q (Qts)0.62
Compliance Equivalent Volume (Vas)4.34ft³
Mechanical Compliance of Suspension (Cms)0.84mm/N
BL Product (BL)6.3T·m
Diaphragm Mass Inc. Airload (Mms)32.6g
Maximum Linear Excursion (Xmax)4.3mm
Surface Area of Cone (Sd)324cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.35"
Baffle Cutout Diameter9"
Depth3.125"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.64ft³
Sealed F343.6Hz
Vented Volume2.25ft³
Vented F335.6Hz
