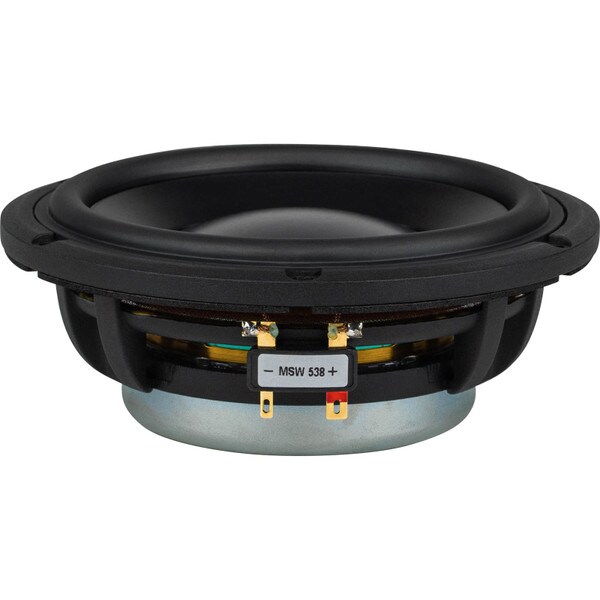

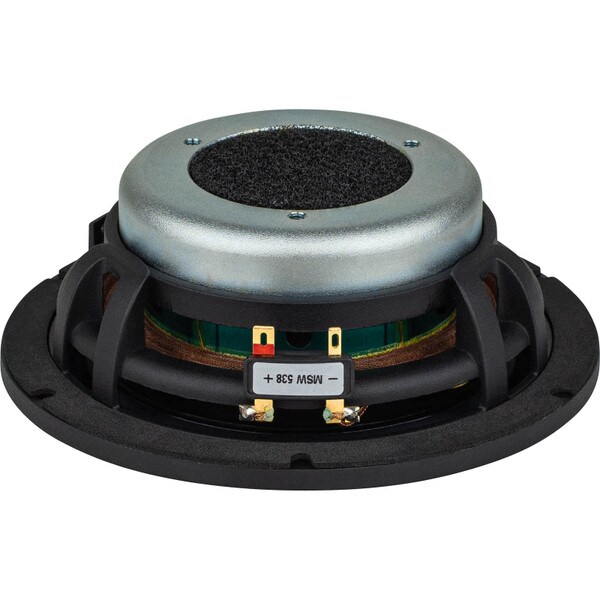

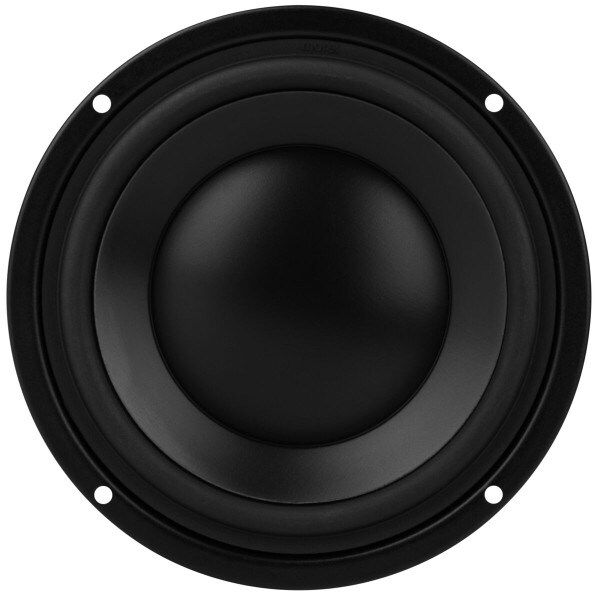

Morel MSW 538 Shallow Classic Series 5" DPC Cone Woofer 8 Ohms

6 Questions, 6 Answers or
Morel
Part #297-004

Morel MSW 538 Shallow Classic Series 5" DPC Cone Woofer 8 Ohms

Morel
Part #297-004
Model: MSW 538
6 Questions, 6 Answers or

With a cast frame upgrade from the Morel MSW 144, MSW 538 5" woofer delivers all the quality and performance you have come to expect from Morel's Classic Series with less mounting depth. At only 2" deep, this driver will provide excellent sound in the shallowest installations.

Key Features
  • Shallow profile Damped Polymer Cone for smooth on and off axis response
  • 2" mounting depth for use in the shallowest enclosures
  • Extensive frame, coil, and motor venting lowers compression and distortion
  • Optimized for use in the smallest enclosures
  • Upgraded cast frame for better rigidity and strength
Your Price: $158.00
+ FREE SHIPPING
MSRP: $192.99
Save $34.99 (18%)
Bulk Pricing

Back-Ordered

Estimated back in stock 1/31/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel MSW 538 Shallow Classic Series 5" DPC Cone Woofer 8 Ohms

With the emphasis today on smaller speaker designs, Morel has re-engineered the Classic Series woofers to minimize depth without sacrificing their sonic characteristics. At only 2" deep, MSW 538 5" has been optimized for use in the smallest enclosures. With a shallow profile Damped Polymer Cone this driver will provide smooth response both on and off axis for natural, room filling response. The huge 3" Hexatech™ voice coil has extensive venting in the former, frame, and magnet to ensure high power handling and low power compression. The MSW 538 is the perfect woofer for use in extremely compact 2-way speaker designs.

Product Details

BrandMorel
ModelMSW 538
Part Number297-004
UPC848864043593
Unit of MeasureEach
Weight1.5

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter5.31
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Frequency Response50 to 4,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.43ft³
Diaphragm Mass Inc. Airload (Mms)13.68g
Maximum Linear Excursion (Xmax)3.5mm

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.625"
Baffle Cutout Diameter4.625"
Depth2"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3100.7Hz
Vented Volume0.25ft³
Vented F346.4Hz
