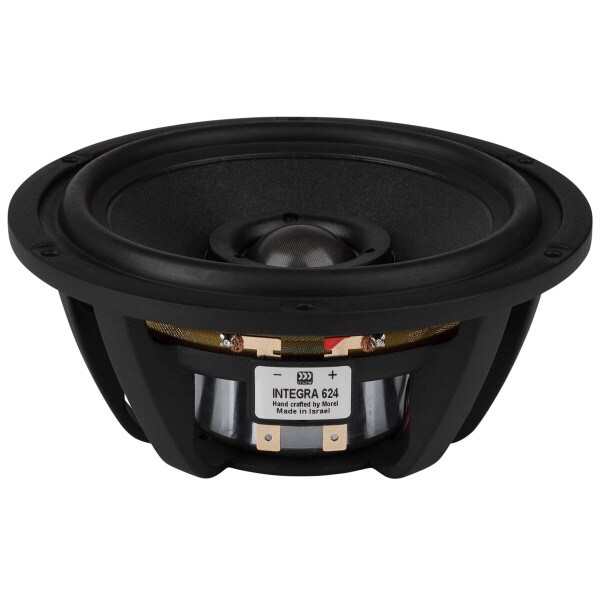

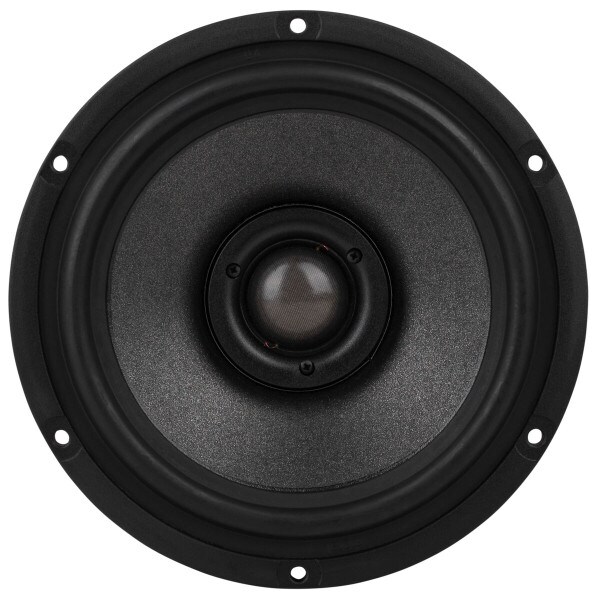

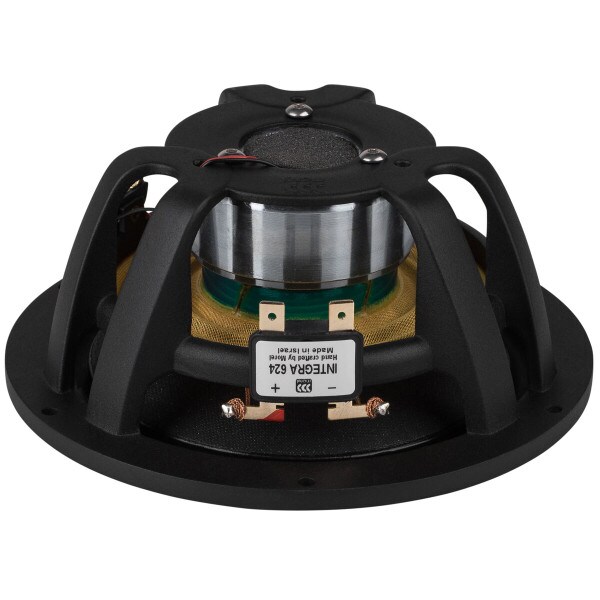

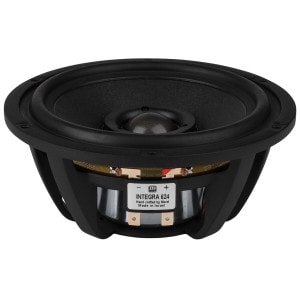

Morel Integra 624 Hybrid Series 6" Point Source Coaxial Full-Range

Morel
Part #297-028

Morel Integra 624 Hybrid Series 6" Point Source Coaxial Full-Range

Morel
Part #297-028
Model: Integra 624
Morel designed the Integra 624 6" driver from the ground up to push the limits of what is possible with coaxial drivers. By using a huge 2.1" voice coil on the woofer, Morel concentrically mounted the 1.1" soft dome tweeter allowing for near perfect time-alignment with amazing off axis consistency.
Key Features
  • Time aligned woofer and tweeter configuration minimizes off axis anomalies
  • Massive 2.1" Hexatech™ voice coil is driven by a powerful hybrid neodymium/ferrite motor
  • 1.1" Accuflex™ soft dome tweeter produces little distortion even at high output
  • Uniflow™ frame allows ample airflow to minimize compression and cool the voice coils
Your Price: $332.00
+ FREE SHIPPING
MSRP: $346.99
Save $14.99 (4%)
Bulk Pricing

Back-Ordered

Estimated back in stock 12/6/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel Integra 624 Hybrid Series 6" Point Source Coaxial Full-Range

Morel's Integra 624 6" coaxial driver is unlike any other coaxial driver. By using a large voice coil on the woofer, Morel was able to mount the 1.1" Accuflex™ soft dome tweeter concentrically within the woofer cone. This results in minimal phase errors compared to conventional coaxial designs and allows the combined response to be ideal in all directions resulting from the near perfect time-alignment.

The Integra 624 features a large 28 mm Acuflex™ soft dome tweeter. Morel's innovative Acuflex™ is a specially engineered damping compound that allows for controlled accurate flexing, meaning each break-up mode is counteracted by another in the opposite direction. This action allows for the natural pure sound that has made Morel tweeters famous. The woofer uses a large 2.1" Hexatech™ aluminum voice coil to drive the low profile composite paper cone that excels in both on and off axis response.

The motor designed for the Integra 624 driver is an unconventional, innovative and highly effective Hybrid™ magnet system that uses a ferrite magnet together with a very powerful neodymium magnet. Combined they create a compact, lightweight motor system that is up to four times more powerful than conventional designs of the same size.

Specifications (Woofer): • Power handling: 80 watts RMS/500 watts max • VC dia: 2.1" • Le: 0.53 mH • Impedance: 4 ohms • Re: 3.68 ohms • Frequency response: 55-4,000 Hz • Fs: 58 Hz • SPL: 90.3 dB 2.83V/1m • Vas: 0.54 cu. ft. • Qms: 1.84 • Qes: 0.43 • Qts: 0.35 • Xmax: 3 mm.

Specifications (Tweeter): • Power handling: 80 watts RMS/200 watts max (with recommended crossover of 2,500 Hz/12 dB slope) • VCdia: 1.1" • Le: 0.84 mH • Impedance: 4 ohms • Re: 3.73 ohms • Frequency response: 2,200-20,000 Hz • Fs: 1124 Hz • SPL: 89 dB 2.83V/1m.

Product Details

BrandMorel
ModelIntegra 624
Part Number297-028
UPC848864043654
Unit of MeasureEach
Weight2.35

Product Specifications

Nominal Diameter6"
Bolt Circle Diameter5.98
Power Handling (RMS)80 Watts
Power Handling (MAX)200 Watts
Impedance4Ω
Frequency Response55 to 20,000Hz
Sensitivity90.3dB 2.83V/1m
Voice Coil Diameter2.13"

Thiele-Small Parameters

Resonant Frequency (Fs)58Hz
DC Resistance (Re)3.68Ω
Voice Coil Inductance (Le)0.53mH
Mechanical Q (Qms)1.84
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.54ft³
Mechanical Compliance of Suspension (Cms)0.77mm/N
BL Product (BL)5.4T·m
Diaphragm Mass Inc. Airload (Mms)9.62g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)119cm²

Materials of Construction

Cone MaterialSoft Dome
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.31"
Baffle Cutout Diameter5.51"
Depth2.48"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.22ft³
Sealed F3133Hz
Vented Volume0.41ft³
Vented F355Hz
