Morel ET 338 1-1/8" Soft Dome Tweeter Matched Pair

Morel
Part #277-070

Morel ET 338 1-1/8" Soft Dome Tweeter Matched Pair

Morel
Part #277-070
Model: ET 338

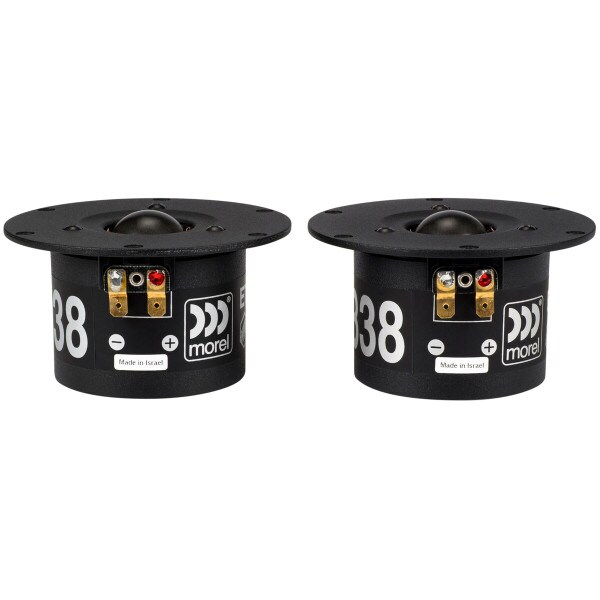

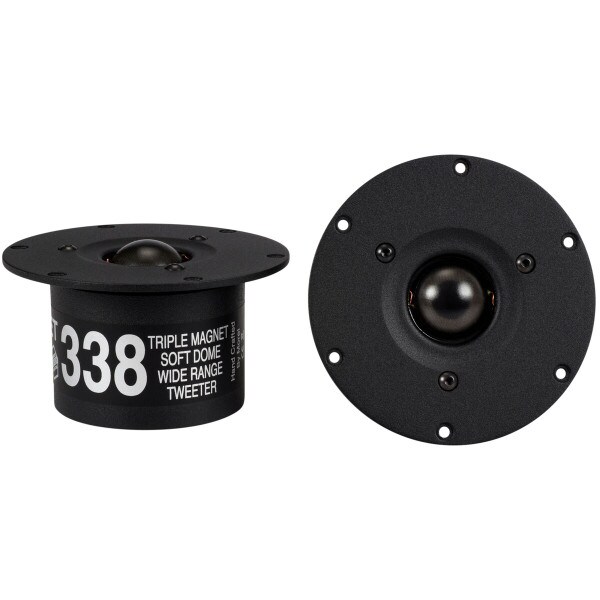

This pair of Morel ET338 Elite tweeters is acoustically matched from the manufacturer and based on the unique qualities of the famous Morel MDT 33.
Key Features
  • Acoustically matched pair
  • IDR™ (Improved Dispersion Recess)
  • Large Hexatech™ aluminum voice coil
  • Triple magnet system
  • Replaceable Accuflex™ diaphragm
  • High power handling
  • Gold plated terminals
Similar items that may interest you:
Your Price: $483.00
+ FREE SHIPPING
MSRP: $630.99
Save $147.99 (23%)
Bulk Pricing
Ships next business day. Details

Only 4 In Stock

More due any day

Free Shipping available on orders over $99.00 in the US. Details

Overview

Morel ET 338 1-1/8" Soft Dome Tweeter Matched Pair

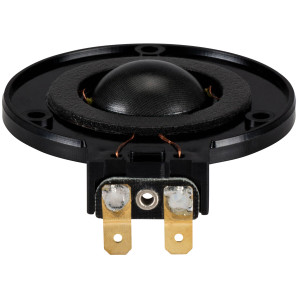

This pair of Morel ET338 Elite tweeters is acoustically matched from the manufacturer and based on the unique qualities of the famous Morel MDT 33. The new IDR™ (Improved Dispersion Recess) technology enables wider high frequency off-axis dispersion, resulting in a smoother overall performance. An aluminum faceplate with a newly refined texture offers extraordinary acoustical characteristics and exceptional quality finish. Also available in a 104 mm diameter faceplate (277-072). Replacement diaphragm (277-019).

Product Details

BrandMorel
ModelET 338
Part Number277-070
UPC844632065941
Unit of MeasurePairs
Weight3

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter2.99
Tweeter TypeSoft Dome
Power Handling (RMS)200 Watts
Impedance
Frequency Response1,800 to 20,000Hz
Sensitivity92.5dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)700Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.09mH

Mounting Information

Overall Outside Diameter4.33"
Depth2.59"
