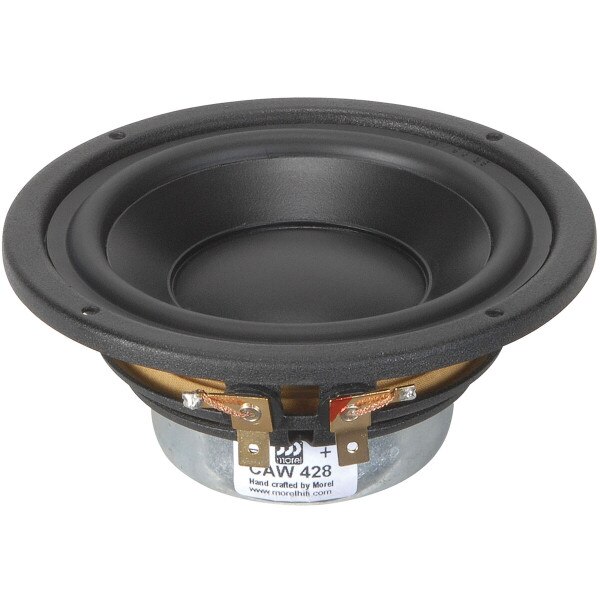

CLEARANCE Morel CAW 428 4" Classic Woofer

Morel
Part #297-080

CLEARANCE Morel CAW 428 4" Classic Woofer

Morel
Part #297-080
Model: CAW 428
The Classic Advanced woofers are based on Morel's renowned MW series. This woofer features an aerodynamic Uniflow™ open chassis, large diameter spider, powerful neodymium magnets, and low resonance frequency and Qts point.
Key Features
  • Large 2.1" Hexatech™ aluminum voice coil
  • Uniflow™ stamped steel chassis
  • Neodymium motor with vented pole
  • Shallow profile DPC cone
  • High excursion
CLEARANCE $99.00
MSRP: $207.99
Save $108.99 (52%)
Bulk Pricing
Order in the next 13 hr 3 min to ship today. Details

52In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel CAW 428 4" Classic Woofer

The Classic Advanced woofers is based on Morel's renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spider. This woofer uses a powerful neodymium magnet system, delivering higher magnetic flux and resulting in a low resonance frequency and Qts point.

Product Details

BrandMorel
ModelCAW 428
Part Number297-080
UPC844632065996
Unit of MeasureEach
Weight1.2

Product Specifications

Nominal Diameter4"
Power Handling (RMS)150 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response50 to 6,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter2.1"

Thiele-Small Parameters

Resonant Frequency (Fs)74Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)0.32mH
Mechanical Q (Qms)2.33
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.16ft³
Mechanical Compliance of Suspension (Cms)1.01mm/N
BL Product (BL)5T·m
Diaphragm Mass Inc. Airload (Mms)4.55g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)57cm²

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.67"
Baffle Cutout Diameter3.7"
Depth1.77"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3158.4Hz
Vented Volume0.2ft³
Vented F369.5Hz
