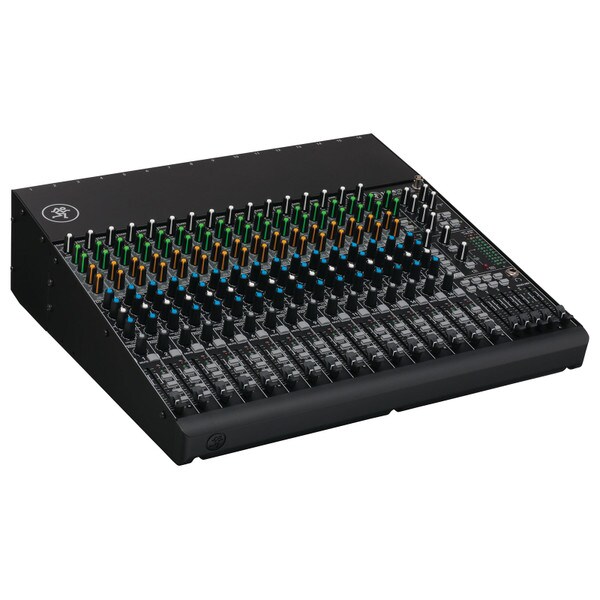

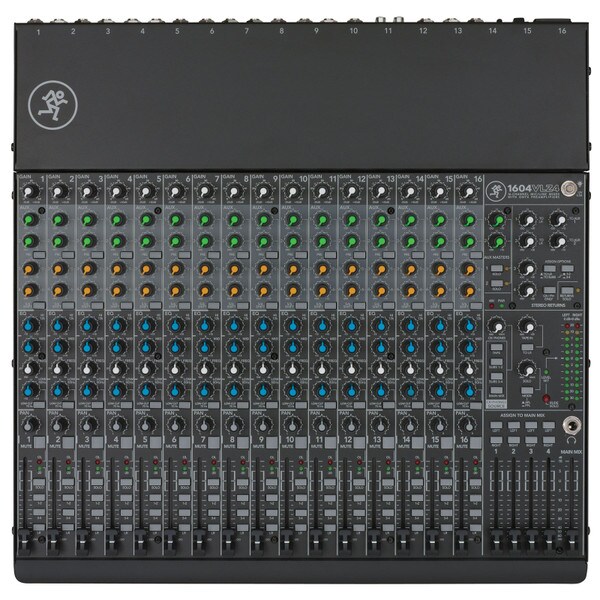

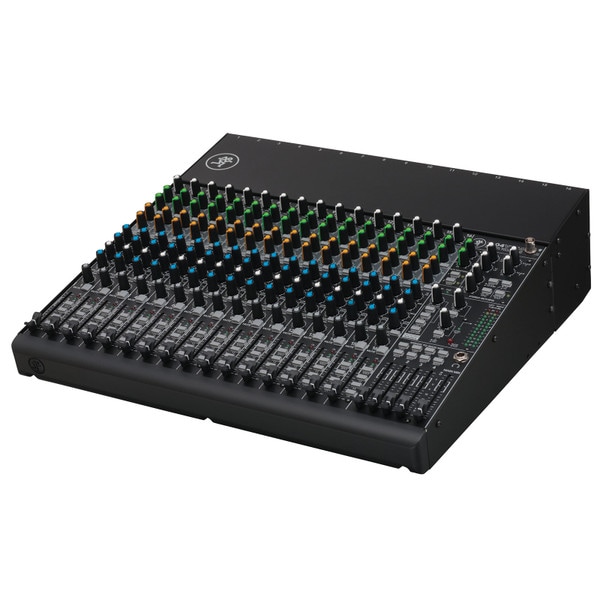

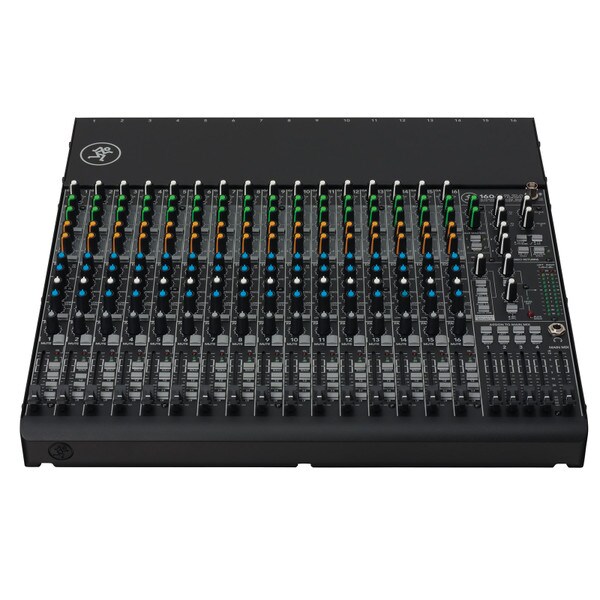

Mackie 1604VLZ4 16-Channel Compact 4-Bus Mixer A legend in compact mixer design, the Mackie 1604VLZ4 now combines the proven performance of Onyx preamps with the no-compromise high-headroom/low-noise design that made the 1604 an industry mainstay. All 16 channels feature an Onyx mic pre, line input and insert in a compact 4-bus design built for application flexibility and professional performance. Plus, it is truly "Built-Like-A-Tank" with a ridiculously rugged solid steel chassis that includes high-contrast controls for ultimate tactile control. Found in countless professional broadcast and post facilities and easily the most proven band-friendly analog mixer ever, the Mackie 1604 stands alone in the world of compact mixing.
Specifications:
• 16-channel mixer featuring Mackie signature high-headroom/low-noise design
• 16 boutique-quality Onyx mic preamps
• Ultra-wide 60 dB gain range
• 128.5 dB dynamic range
• +22 dBu line input handling
• Extended frequency response
• Distortion under 0.0007% (20 Hz - 50 kHz)
• Phantom power for studio condenser mics
• Improved RF rejection perfect for broadcast applications
• Phantom power for condenser mics
• 16 high-headroom line inputs with +4/-10 operation control
• 16 balanced inserts perfect for integrating outboard gear
• 18 dB/oct 75 Hz low-cut filter on mic input channels
• 4 aux sends, level, pan, solo and overload/mute LEDs on each channel
• 4 stereo returns, 8 direct outs and 4 group/bus outputs
• 60mm long-wearing log-taper faders
• Control room / phones multi-input source matrix
• High-resolution 12-segment stereo meters
• Sealed rotary control resist dust and grime
• "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient "at-a-glance" visual feedback
• Rack-mountable design with three physical configurations via Rotopod accessory (sold separately)
• Multi-voltage power supply for worldwide use
Specifications:
• Type: Analog
• Channels: 16
• Inputs (mic): 16

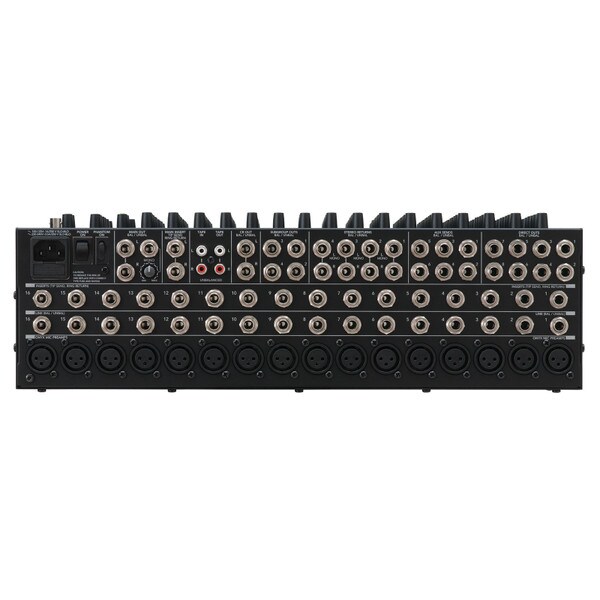

• Inputs (line): TRS x 16, RCA x 2
• Outputs (main): XLR x 2, TRS x 2, (Mono) TRS x 1
• Outputs (other): (Subgroup) TRS x 4, (CR) TRS x 2, RCA x 2
• Direct Outputs: Channels 1-8
• Channel Inserts: Channels 1-16, Main L/R
• Aux sends: Pre/Post x 2, Post x 2
• Send/ Return: (Send) TRS x 6, (Return Stereo) TRS x 4
• Headphones: 1/4" x 1
• EQ: 3-band sweepable mid (80 Hz, 100 Hz - 8 kHz, 12 kHz) w/ low cut filter (75 Hz)
• Phantom power: yes

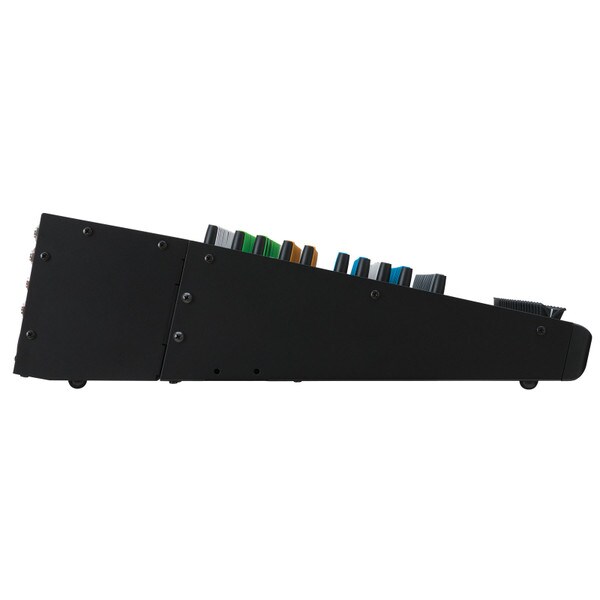

• Dimensions: 17.3" W x 17" D x 5.1" H
• Weight: 20 lbs.
