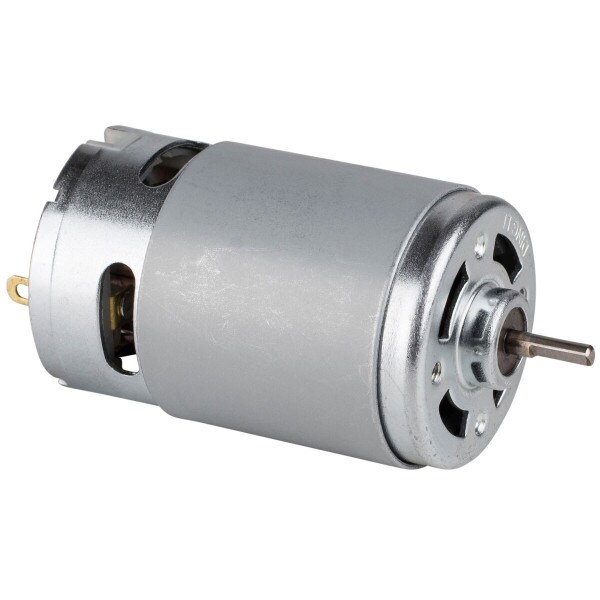

Mabuchi Type Motor RS-555SH 12V DC Motor (9-15V) 57mm x 36mm

Parts Express
Part #125-566

Mabuchi Type Motor RS-555SH 12V DC Motor (9-15V) 57mm x 36mm

Parts Express
Part #125-566
This robust 12 VDC motor is perfect for any number of electronic projects, including modelling, R/C, and robotics.
Key Features
  • High speed of 5100 RPM, with no load, at 12 VDC
  • Wrap-around shield reduces electrical interference
  • Easily front mount with two M3 screws (sold separately)
  • Voltage range is 9 - 15 VDC for versatility
  • Notched shaft for gear installation
Your Price: $6.49
MSRP: $9.99
Save $3.50 (35%)
Bulk Pricing
Order in the next 6 hr 7 min to ship today. Details

Only 139 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Mabuchi Type Motor RS-555SH 12V DC Motor (9-15V) 57mm x 36mm

Originally offered as a high torque motor for ink jet printers and electric drills, this motor satisfies those requirements and more. Many hobbyist projects such as radio controlled vehicles, robotics, model-building, home automation are all perfect fit for this stout 12 VDC motor. The 5-pole construction utilizes permanent magnets, so the motor produces high torque with high efficiency. Simply mount the motor with two M3 screws into the two threaded 3 mm holes on the face of the motor.

Specifications: • Speed at 12 VDC: 5100 rpm +/- 3% • Speed / Torque: 4500 rpm / 420 g-cm • Stall torque: 980 g-cm • Dimensions including shaft: 3.035" L x 1.48" Dia. • Shaft dimensions: 0.43" L x 0.13" Dia. • Shaft notch: 0.314" L x 0.04" D.

Product Details

BrandParts Express
Part Number125-566
UPC848864056517
Unit of MeasureEach
Weight0.45
