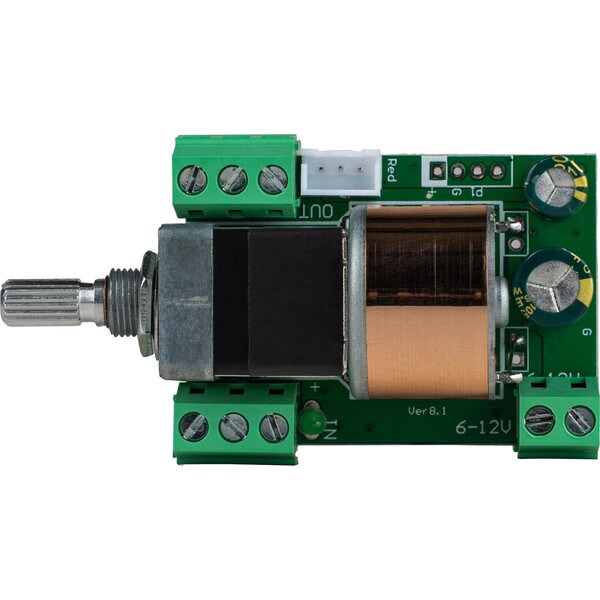

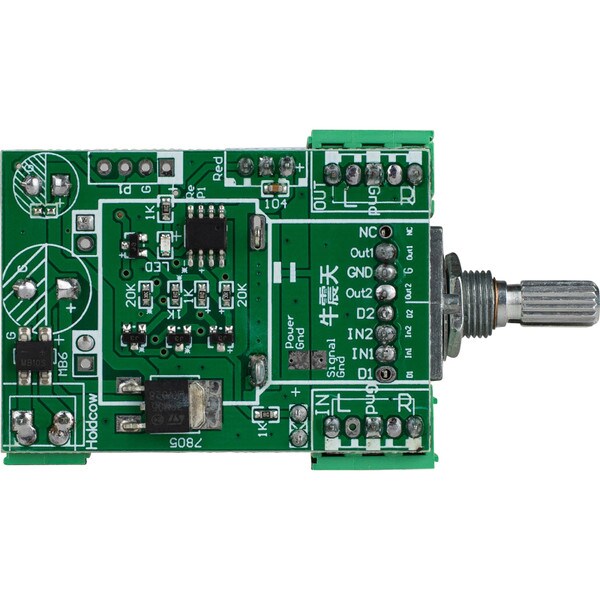

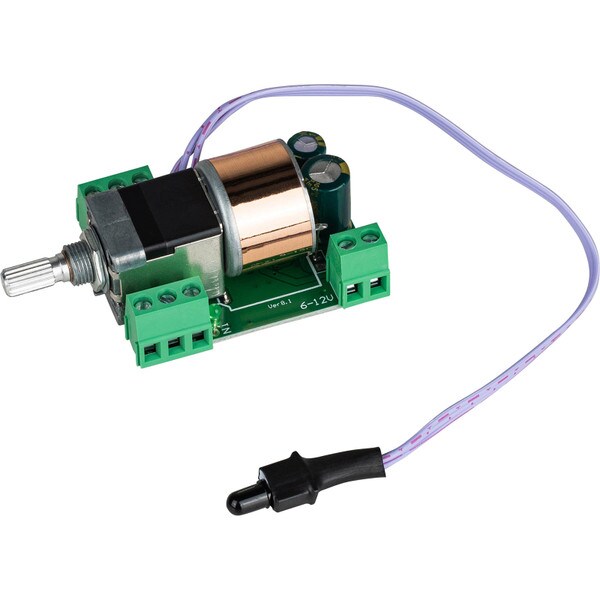

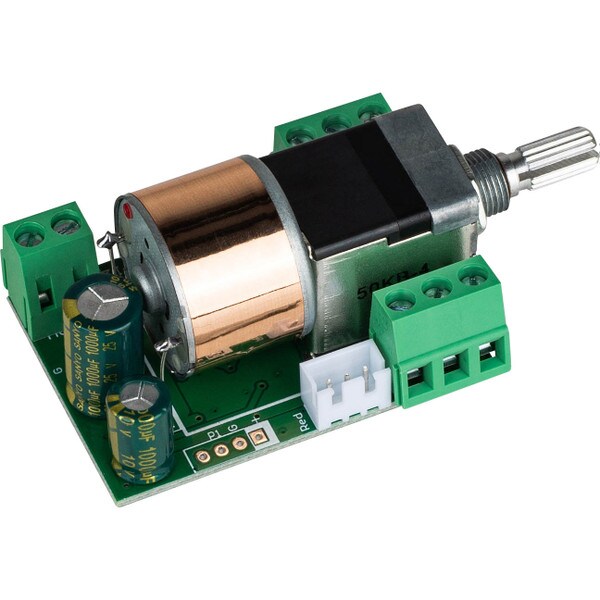

Line Input Passive Motorized Volume Control Preamp Board with Remote 6-12 VDC

Parts Express
Part #320-6012

Line Input Passive Motorized Volume Control Preamp Board with Remote 6-12 VDC

Parts Express
Part #320-6012
Are you tired of constantly getting up and adjusting the volume on your audio project? Well, fret no more! I have the perfect solution for you - a wireless motorized remote control. This little device works wonders with ICEpower and other amplifier boards that lack a wireless volume control option.
Key Features

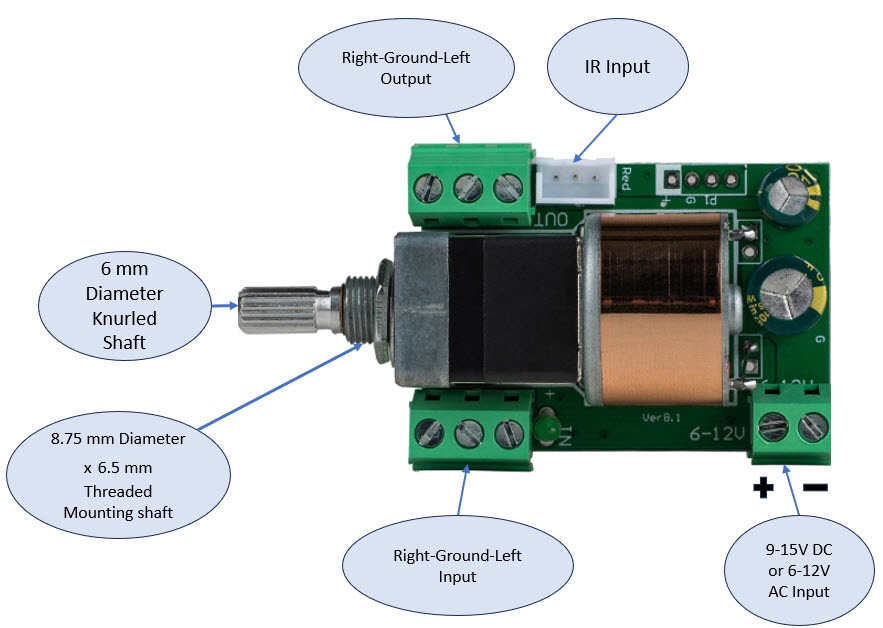

  • Pheonix wire connectors make it easy to insert the board into your amplifier or portable speaker project

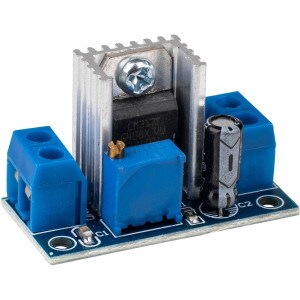

  • 6 to 12V AC or 9-15V DC operation makes it easy to power with voltage regulator board (sold separately) if needed
  • Increase/decrease the volume manually or with the IR wireless remote which always stays in sync verses other non-motorized analog remotes
  • Power button cuts the signal to the amp board for standby operation
  • Standard 6 mm Knurled shaft for convenience

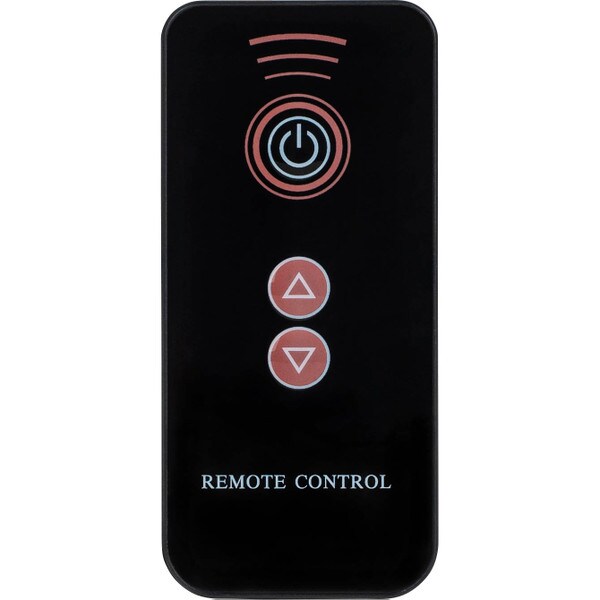

  • IR remote includes a CR2025 battery for instant operation
Your Price: $23.98
MSRP: $49.99
Save $26.01 (52%)
Bulk Pricing
Order in the next 6 hr 14 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Line Input Passive Motorized Volume Control Preamp Board with Remote 6-12 VDC

Synchronized Wireless Volume Control

By adding this wireless motorized remote control to your audio setup, you can easily control the volume from the comfort of your seat. No more interruptions or distractions. Simply sit back, relax, and enjoy your favorite tunes without having to constantly get up and down to adjust the volume.

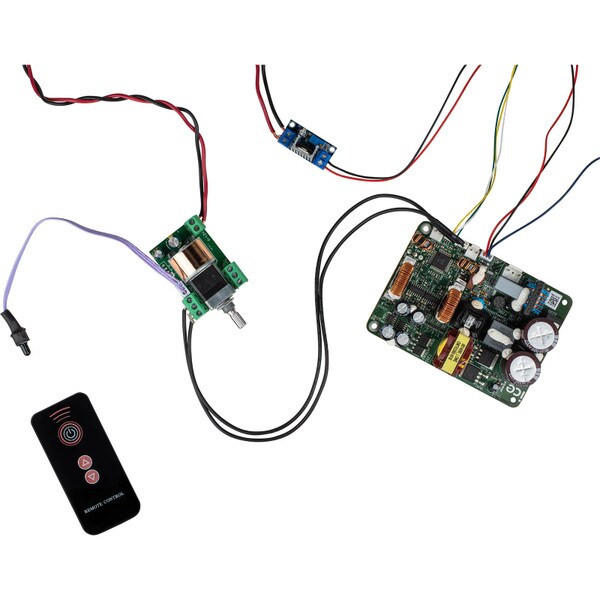

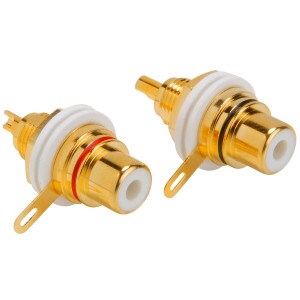

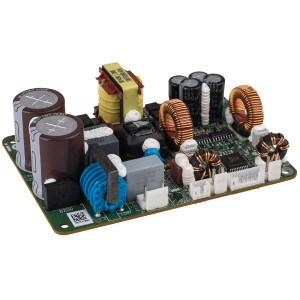

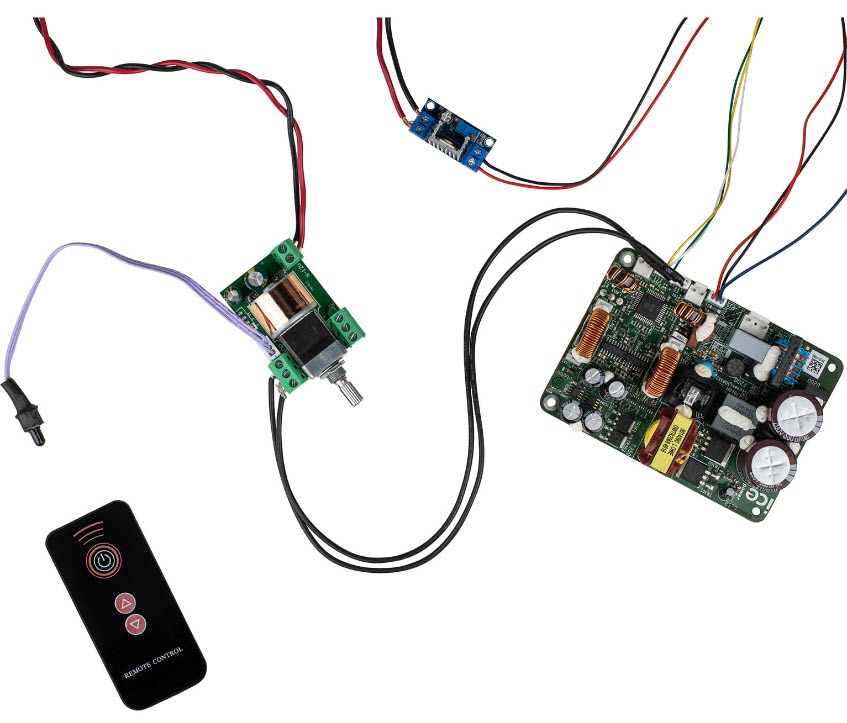

Not only does it provide you with a hassle-free way to adjust the volume, but it also works seamlessly with ICEpower and other amplifier boards that lack built-in wireless control options. This compatibility ensures that you can enjoy the benefits of wireless control without any technical difficulties. Just add RCA jacks to the line output of the volume control board to hook up your CD player, tuner, computer, mixer or other components. Amplifier boards with higher than 12V auxiliary power output will need to add a voltage regulator board (sold separately) to the convenient phoenix connectors.

So, why continue with the inconvenience of manual or no volume adjustments when a simple solution is within reach? Upgrade your audio project today with this wireless motorized remote control and experience a whole new level of ease and enjoyment. Your audio experience will never be the same again!

Note: This is a passive preamp. The power input is for the motor and LED indicator.

Specifications: • Input voltage: 6-12V AC or 9-15V DC • Potentiometer value: 50K • Board dimensions without shaft: 2.09" D x 1.53" W x 1.18" H (53 x 39 x 30 mm) • Shaft total length: 8" (20 mm) • Shaft thread: 0.35" Dia. x 0.25" L (8.75 x 6.5 mm) • Shaft knurled Diameter: 0.236" (6 mm) • IR lens diameter: 0.197" (5 mm).

Product Details

BrandParts Express
Part Number320-6012
UPC848864074856
Unit of MeasureEach
Weight0.2

Product Specifications

Board TypePreamp
