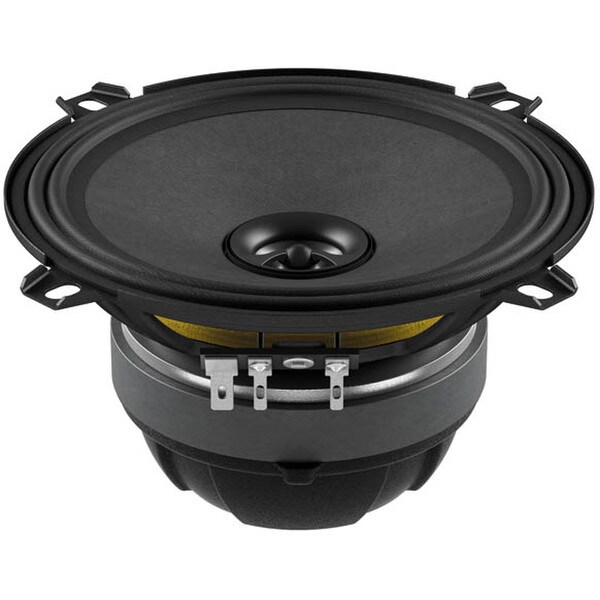

Lavoce CSF051.21 5" Coaxial Woofer

1 Question, 3 Answers or
Lavoce
Part #293-790

Lavoce CSF051.21 5" Coaxial Woofer

Lavoce
Part #293-790
Model: CSF051.21
1 Question, 3 Answers or

Featuring a 5" cone woofer with an integrated 1" tweeter, the CSF051.21 combines the best of both worlds to provide a harmonious balance between lows, mids, and highs. Experience a seamless transition between frequencies, allowing every note to resonate with exceptional accuracy and naturalness.

Key Features
  • Built-in optimized crossover makes installation a breeze
  • High 92dB sensitivity means this requires minimal power
  • 100 watt program power handling for incredible output from a small driver
Your Price: $35.00
MSRP: $52.24
Save $17.24 (33%)
Bulk Pricing

Back-Ordered

Estimated back in stock 7/10/2024
Alert Me When Available
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Lavoce CSF051.21 5" Coaxial Woofer

Prepare to be captivated by the CSF051.21's remarkable performance. With its robust construction and premium materials, this coaxial woofer is built to withstand the test of time while delivering a powerful and immersive sound. Whether you're a music enthusiast or a professional audio engineer, this speaker is a game-changer.

The CSF051.21 is more than just a speaker – it's a masterpiece of engineering. Equipped with advanced technologies, including high-quality voice coils and a precisely engineered magnetic circuit, this woofer ensures optimal performance across the entire frequency range.

Installation is a breeze with the CSF051.21's user-friendly design. Its compact size allows for easy integration into any speaker system or custom enclosure, making it a versatile choice for car audio installations, home theaters, and professional sound setups. Get creative and elevate your audio experience to new heights.

The Lavoce CSF051.21 5" Coaxial Woofer is not just a speaker - it's a masterpiece of sound reproduction. Elevate your listening experience and bring your music to life like never before. Immerse yourself in crystal-clear audio and let the powerful bass reverberate through your soul. With the CSF051.21, every beat is felt, every note is heard, and every moment becomes unforgettable.

Unleash the power of sound with the Lavoce CSF051.21 5" Coaxial Woofer. Upgrade your audio system today and discover a whole new world of sonic excellence.

Product Details

BrandLavoce
ModelCSF051.21
Part Number293-790
UPC848864072685
Unit of MeasureEach
Weight2.1

Product Specifications

Nominal Diameter5"
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance8Ω
Frequency Response110 to 22,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1.2"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)0.74
Total Q (Qts)0.65
Compliance Equivalent Volume (Vas)0.15ft³
Mechanical Compliance of Suspension (Cms)0.32mm/N
BL Product (BL)5.9T·m
Maximum Linear Excursion (Xmax)3.1mm
Surface Area of Cone (Sd)97cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.41"
Baffle Cutout Diameter4.69"
Depth2.86"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.15ft³
Sealed F3139.5Hz
Vented Volume0.35ft³
Vented F381.3Hz
