LaVoce WAN153.01 15" Professional Neodymium Woofer 8 Ohm

Read 2 Reviews or
LaVoce
Part #293-782

LaVoce WAN153.01 15" Professional Neodymium Woofer 8 Ohm

LaVoce
Part #293-782
Model: WAN153.01
Read 2 Reviews or

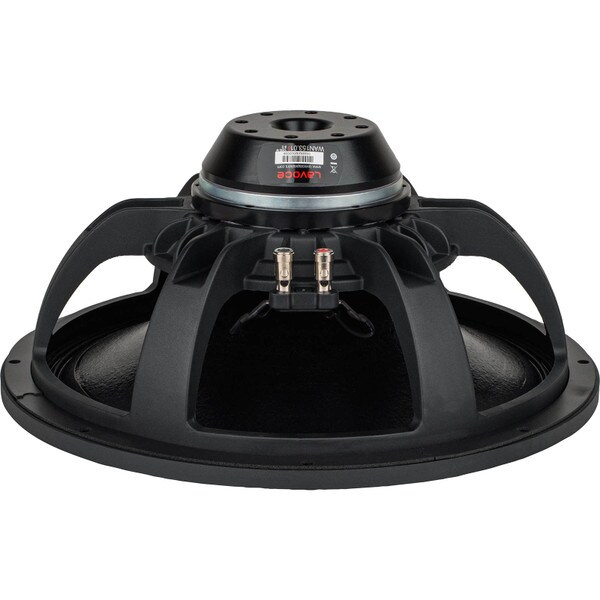

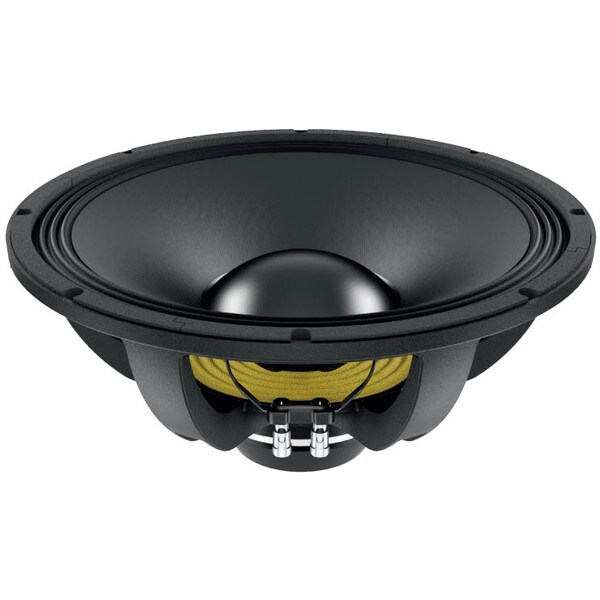

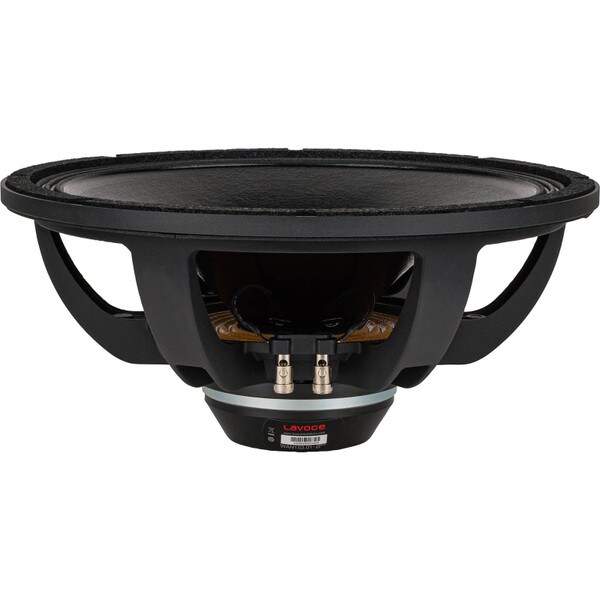

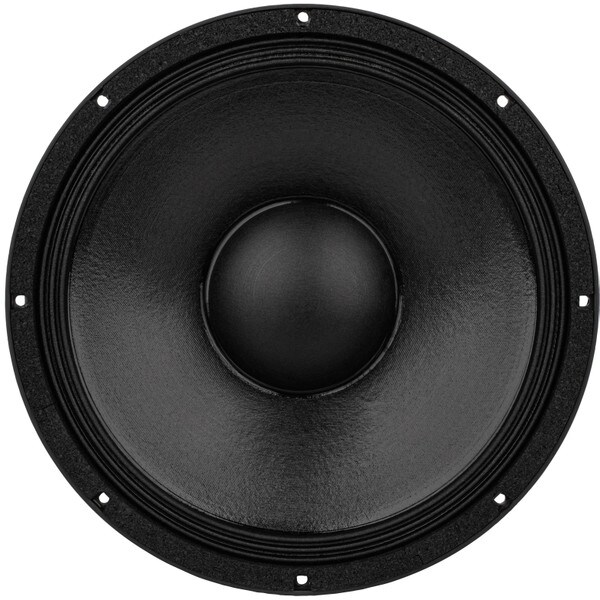

Lavoce’s WAN153.01 15” professional neodymium woofer combines high efficiency with low distortion to produce incredibly natural response with extreme output capability. With a 3” copper voice coil, dual aluminum shorting rings, powerful neodymium motor, and vented cast aluminum frame, the WAN153.01 features everything you expect from a high-performance professional woofer, except for the high price. The high output capability and low weight makes this driver ideal for everything from portable DJ speakers to light-weight professional bass bins.
Key Features
  • Dual aluminum shorting rings for low inductance and minimal distortion
  • Waterproof treated paper cone delivers smooth and natural response and resists exposure to weather
  • Vented former, frame, and motor assembly to dissipate excess heat for reliable performance
  • Compact but powerful neodymium motor for minimal weight with maximum efficiency
  • Large 3” voice coil with extensive venting for high power handling and low power compression
Similar items that may interest you:
Your Price: $289.00
+ FREE SHIPPING
MSRP: $431.34
Save $142.34 (33%)
Bulk Pricing
Order in the next 0 hr 11 min to ship today. Details

Only 4 In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

LaVoce WAN153.01 15" Professional Neodymium Woofer 8 Ohm

For premium performance without the high price tag, the WAN153.01 15” professional woofer from Lavoce is an excellent choice. Thanks to the powerful neodymium motor assembly this driver weighs in at under 13 lbs, making it possible to get extreme output without excessive weight. The large 3” copper voice coil is wound on a heat resistant fiberglass former and is vented through the motor and frame to handle up to 600 watts RMS without significant power compression. In addition, the motor assembly includes dual aluminum shorting rings keeping inductance under control for minimal stored energy and exceedingly low distortion. The naturally damped paper cone has been costed with a waterproof treatment allowing the WAN153.01 to be used in less-than-optimal installations where it may be exposed to the elements. Holding everything together is a rugged non-resonant cast aluminum frame that can hold up to the use (and occasional abuse) of the professional sound environment. This durable construction and attention to detail makes Lavoce’s WAN153.01 ideal for use in portable high output 3-way systems and even high-fidelity design capable of incredibly dynamic response.

Product Details

BrandLavoce
ModelWAN153.01
Part Number293-782
UPC848864068244
Unit of MeasureEach
Weight16.7

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance
Frequency Response40 to 2,000Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)46.3Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)1mH
Mechanical Q (Qms)5.58
Electromagnetic Q (Qes)0.3
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)4ft³
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)23.9T·m
Diaphragm Mass Inc. Airload (Mms)114.4g
Maximum Linear Excursion (Xmax)6.6mm
Surface Area of Cone (Sd)881.4cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter15.47"
Baffle Cutout Diameter13.85"
Depth6.92"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume3.75ft³
Vented F342Hz
