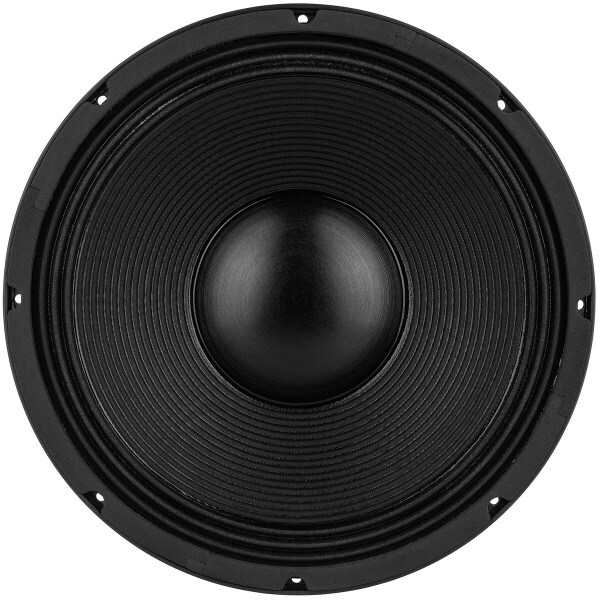

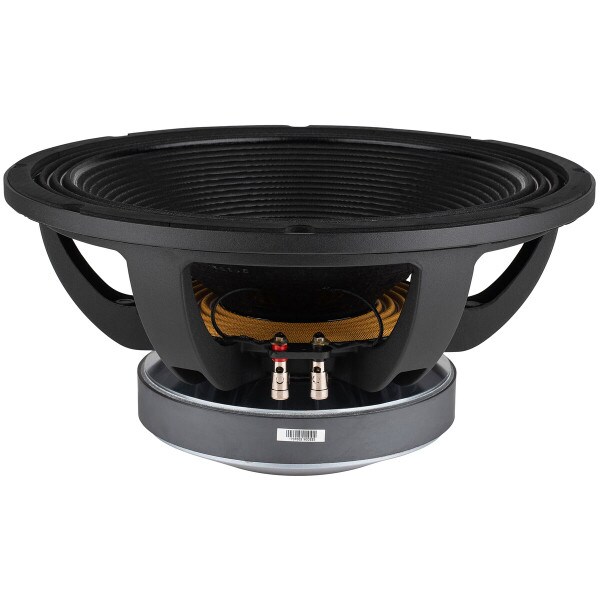

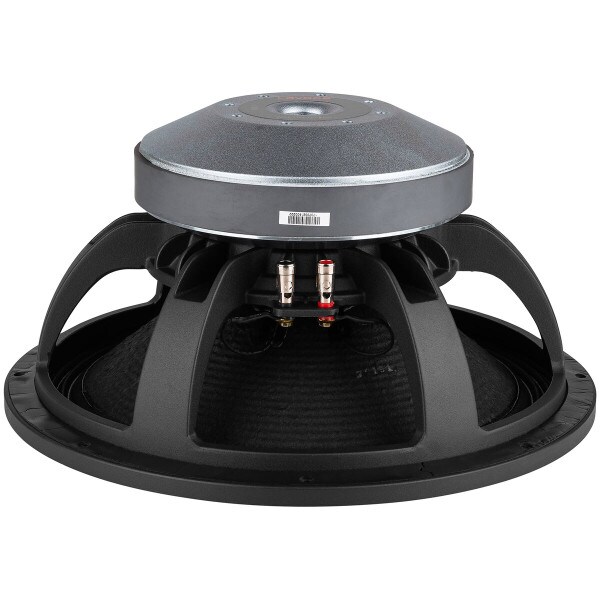

LaVoce WAF154.00 15" Subwoofer 8 Ohm

8 Questions, 20 Answers or
LaVoce
Part #293-725

LaVoce WAF154.00 15" Subwoofer 8 Ohm

LaVoce
Part #293-725
Model: WAF154.00
8 Questions, 20 Answers or
The LaVoce WAF154.00 is an impressive 15" subwoofer that features an inredible 43 mm peak to peak excursion. The excellent 97 dB sensitivity is perfect for mating to other high-efficiency drivers.
Key Features
  • FEM optimized Ferrite motor and suspensions
  • 43 mm of peak to peak excursion
  • Large 4" voice coil for improved power handling
  • Resonance-free, heavy-duty aluminum basket demonstrates excellent build quality
Your Price: $299.00
+ FREE SHIPPING
MSRP: $446.27
Save $147.27 (33%)
Bulk Pricing
Order in the next 6 hr 16 min to ship today. Details

Only 2 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce WAF154.00 15" Subwoofer 8 Ohm

The LaVoce WAF154.00 is an impressive 15" subwoofer that features an incredible 43 mm peak to peak excursion. The excellent 97 dB sensitivity is perfect for mating to other high-efficiency drivers. The WAF154.00 also features a double silicone spider for improved linearity. The gasket on this driver allows it to be rear mounted easily, providing additional installation flexibility. To add to the versatility of this driver, the cone has been treated to be waterproof, making it ideal for outdoor cabinets.

Product Details

BrandLavoce
ModelWAF154.00
Part Number293-725
UPC848864057484
Unit of MeasureEach
Weight39.65

Product Specifications

Nominal Diameter15"
Bolt Circle Diameter14.69
Power Handling (RMS)1500 Watts
Power Handling (MAX)3000 Watts
Impedance8Ω
Frequency Response40 to 1,000Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)38Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)1.8mH
Mechanical Q (Qms)5.7
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.29
Compliance Equivalent Volume (Vas)3.64ft³
Mechanical Compliance of Suspension (Cms)0.1mm/N
BL Product (BL)27.3T·m
Diaphragm Mass Inc. Airload (Mms)167g
Maximum Linear Excursion (Xmax)12.1mm
Surface Area of Cone (Sd)830cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.47"
Baffle Cutout Diameter13.93"
Depth7.73"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.46ft³
Sealed F370.7Hz
Vented Volume3.25ft³
Vented F341.8Hz
