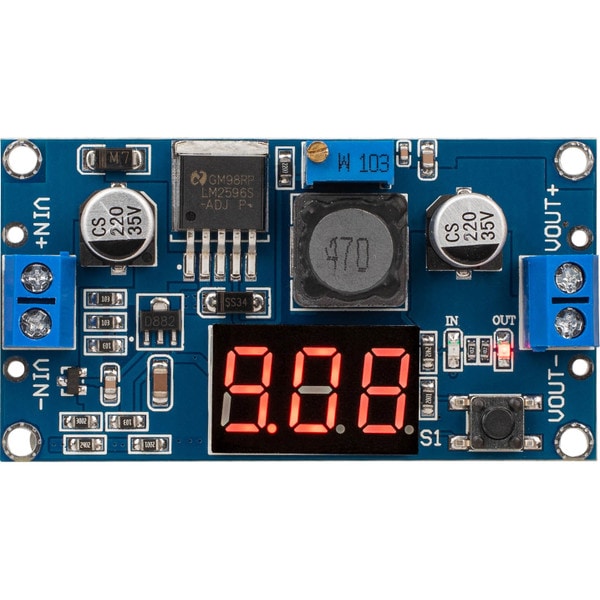

LM2596 DC-DC Step-Down Module with Digital Voltmeter Display 3A 4 to 40VDC In and 1.25-37V Out

Parts Express
Part #320-609

LM2596 DC-DC Step-Down Module with Digital Voltmeter Display 3A 4 to 40VDC In and 1.25-37V Out

Parts Express
Part #320-609
Model: LM2596
Drop your voltage from up to 40 VDC down to 1.25 VDC with this DC-to-DC buck converter. Perfect for projects that the main board needs high voltage, but the accessory or preamp boards need less voltage and require low current.
Key Features
  • Built-in variable voltage LM2596S regulator keeps the desired setting constant
  • Handles up to 3A of constant current for small amp or preamp boards
  • Thermal shutdown and current limit protection
  • Digital readout accurately identifies input and output voltage without additional equipment
  • Small 2.61" x 1.42" board fits in small projects
  • Eliminates extra power supplies due to DC voltage differences
  • Red LEDs identify input versus output voltage reading adjusted by the pushbutton switch
Your Price: $3.68
MSRP: $9.99
Save $6.31 (63%)
Bulk Pricing
Quantity:Qty: 1-9 $3.68/ea
Quantity:Qty: 10+$3.31/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LM2596 DC-DC Step-Down Module with Digital Voltmeter Display 3A 4 to 40VDC In and 1.25-37V Out

This DC-to-DC buck board enables you to add lower voltage preamp/amp boards to high powered amp board projects requiring two to three times more voltage. Therefore, it eliminates the need for two separate power supplies. This buck board converts up to 40 VDC input down to 1.25 VDC output. If the high power amp board in your audio project requires 24 VDC, the buck board takes the voltage down to 12 VDC for your lower power preamp/small amp boards. The output voltage will stay at 12 VDC for these boards even if the power is turned off and back on. The LM2596S maximum current/power capacity is 3A or 20W. You need a fan or extra ventilation if your device draws the full 20W.

Instructions

1. Hook up a power supply between 4 and 40 VDC to the VIN + and the VIN -
2. Press the black pushbutton until the OUT LED is lit above the button
3. Lightly turn the bronze trimming screw with a small slot screwdriver to the desired output voltage. (Output voltage needs to be at least 1V less than the input voltage. Check the input voltage by pressing the pushbutton until the IN LED is lit).
4. Unhook or turn the power supply off. Hook up your device that needs less voltage to the VOUT + and VOUT -. Make sure the voltage trimming screw stays in the same position you left it. Plug in or turn on the power supply and push the black button on the converter board until the voltage OUT LED is lit to verify your output voltage. Turn on your device if it's not already on. Make sure your device doesn't draw more than 20W. If your device has a voltage and current rating multiply them together to get the wattage.

Specifications: • Input voltage: DC 4.2 to 40V • Output voltage: 1.25 to 37 VDC • Maximum output current: 3A with extra ventilation • Normal output current: 2A • Maximum output power: 20W • Oscillator frequency: 150 kHz • Input: VIN positive input stage, GND negative input • Output: VOUT output positive level, GND output negative • Operating temperature: -40 to 140 F° • Dimensions: 2.61" W x 1.42" L x 0.5" H.

Product Details

BrandParts Express
ModelLM2596
Part Number320-609
UPC848864070353
Unit of MeasureEach
Weight0.05

Product Specifications

Board TypeBattery & Power

Specifications
