  • Kustom Groove 215H Bi-Radial 90x90 Horn 1-3/8"-18 TPI

BUYOUT Kustom Groove 215H Bi-Radial 90x90 Horn 1-3/8"-18 TPI

Read 1 Review or
Factory Buyouts
Part #299-2264

BUYOUT Kustom Groove 215H Bi-Radial 90x90 Horn 1-3/8"-18 TPI

Factory Buyouts
Part #299-2264
Model: 215H
Read 1 Review or

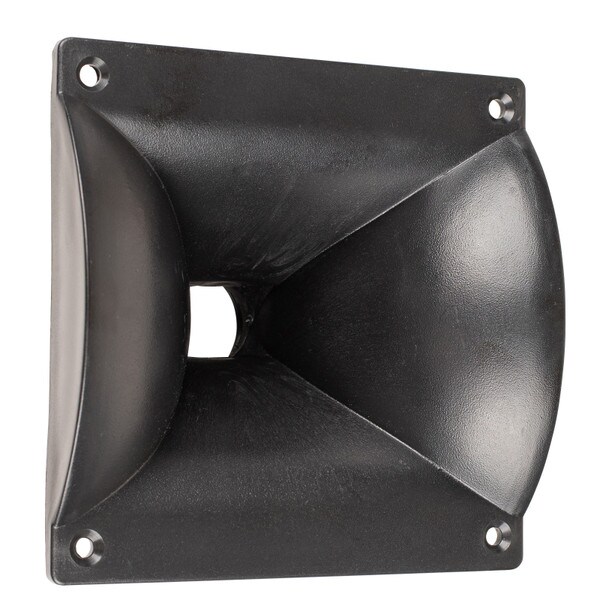

Originally used in the Kustom Groove 215H bass cabinet, this 90° x 90° bi-radial horn uses a 1-3/8” 18 TPI mount making it compatible with many popular compression drivers. With a controlled dispersion pattern and rugged ABS construction this horn will work well in any high efficiency speaker design.
Key Features
  • Maintains controlled dispersion down to 1,300 Hz
  • 90° x 90° dispersion pattern help to minimize unwanted reflection
  • Compact size makes it easy to integrate in smaller speakers

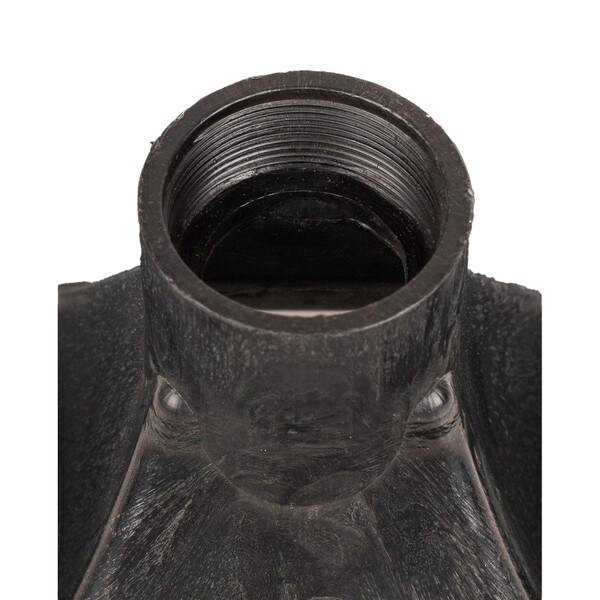

  • 1-3/8” 18-TPI mount for use with many popular compression drivers
Similar items that may interest you:
See all items in Horns & Waveguides
BUYOUT $4.88
Bulk Pricing
Order in the next 4 hr 50 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Kustom Groove 215H Bi-Radial 90x90 Horn 1-3/8"-18 TPI

The Kustom Groove 215H bi-radial horn produces a 90° x 90° dispersion pattern to concentrate the high frequency right where you need it while reducing unwanted reflections. With a standard 1-3/8” 18 TPI threaded mount this horn is easily compatible with many popular high frequency drivers. Thick ABS construction can accommodate the weight of your driver while being able to stand up to the demanding touring sound environment. Measuring less than 6” x 6”, this is an easy horn to integrate into your next high output speaker design.

Specifications: • Throat diameter: 1" • Driver mounting: 1-3/8” 18 TPI • Nominal coverage: 90°H x 90° V • Cutoff frequency: 1,300 Hz • Dimensions: 5.9" H x 5.9" W x 3.5" D • Cutout dimensions: 4.75" H x 4.5" W.

Note: This new old stock horn is from a factory buyout. At such an economical price, these horns won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
Model215H
Part Number299-2264
UPC848864077390
Unit of MeasureEach
Weight1

Product Specifications

ConstructionABS
Entry / Throat Diameter1"
Mounting Type1-3/8"-18 TPI
