  • Knock-Down MDF 4 ft³ Subwoofer Cabinet with Blank Baffle

NEW Knock-Down MDF 4 ft³ Subwoofer Cabinet with Blank Baffle

Parts Express
Part #300-5026

NEW Knock-Down MDF 4 ft³ Subwoofer Cabinet with Blank Baffle

Parts Express
Part #300-5026

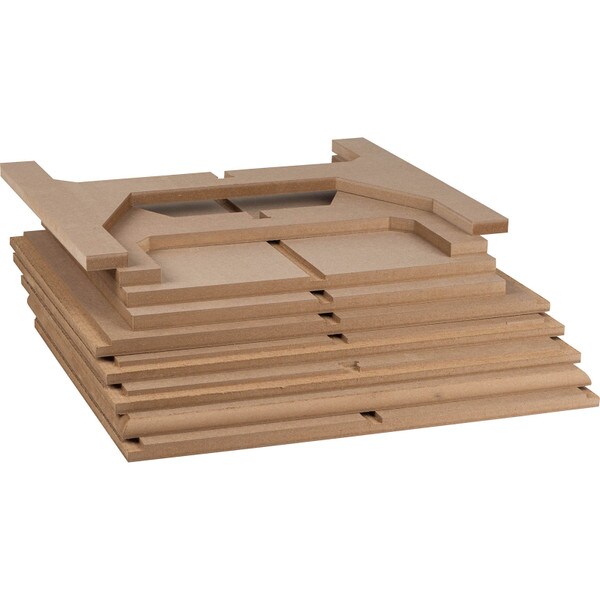

Every good subwoofer needs a solid enclosure, and with this 4.0 cubic foot knock-down box most of the work has been done for you. This cabinet includes precision-machined 3/4" MDF panels, a double thick front baffle, and a unique three-piece brace system.

Key Features
  • CNC-machined dadoes and a unique bracing system that increases cabinet rigidity
  • Double-thick 1-1/2" front baffle allows easy flush mounting of driver
  • 4.0 cubic foot cabinet suitable for up to 18" drivers
  • Dadoes panels for easy alignment of pieces
  • Made in U.S.A.
NEW $249.98
+ FREE SHIPPING
Bulk Pricing
Order in the next 0 hr 4 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

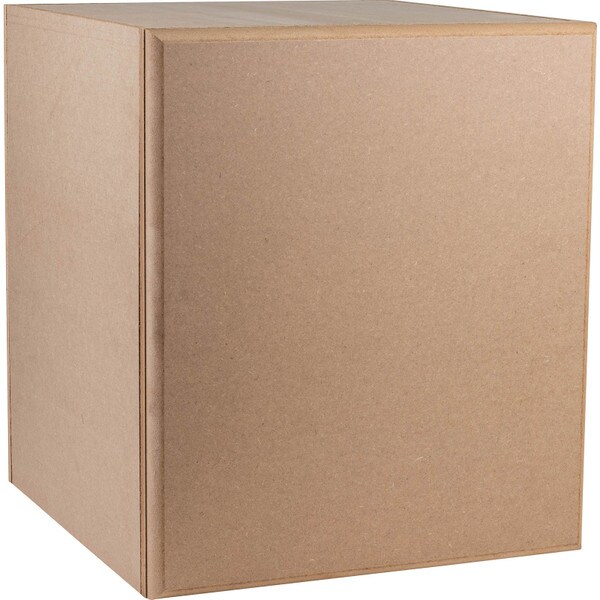

Knock-Down MDF 4 ft³ Subwoofer Cabinet with Blank Baffle

Even the easiest do-it-yourself subwoofer can turn into an arduous project; from uneven cuts, to measuring mistakes. CNC knock-down cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills. This cabinet is designed for speaker builders and designers who don't have access to expensive tools or a woodshop.

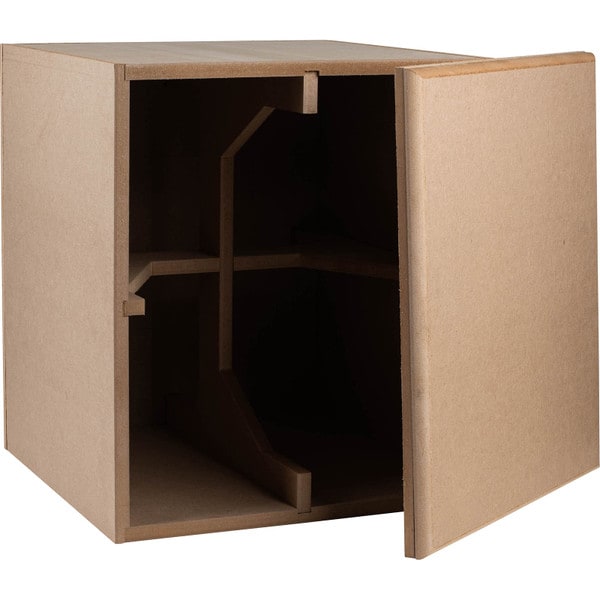

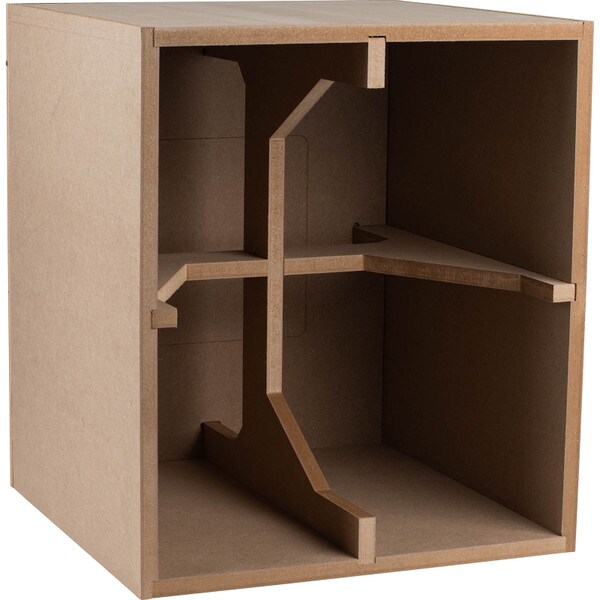

During the CNC manufacturing process, rabbets dadoes are cut into the back and side panels ensuring precise alignment. A unique interlocking two-piece brace adds superior rigidity without affecting the subwoofer's performance. In addition, the initial baffle includes rabbets and dadoes ensuring perfect installation of the first part of the two-part, double thick baffle. Plate amplifier installation is made easy by following the scribed interior guide with a jig saw (scribed amplifier cutout is for the Dayton Audio SPA1000 or SPA500).

Specifications: • Panel thickness: 3/4", front baffle is 1-1/2" • Panel material: Medium Density Fiberboard (MDF) • Finished net cabinet volume (subtracting the double thick baffle, bracing, and estimated woofer volume): 4.0 cubic feet • External dimensions: 23" H x 20" W x 20.75" D • Mounting depth (mounting baffle to brace): 11" • Weight: 63 lbs. • Made in the U.S.A.

Product Details

BrandParts Express
Part Number300-5026
UPC848864075754
Unit of MeasureEach
Weight70
