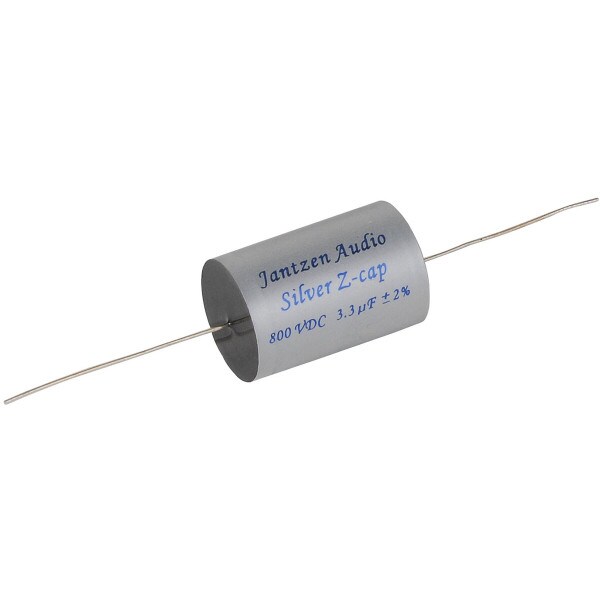

Jantzen Audio 3.3uF 800V Silver Z-Cap Crossover Capacitor

Name: Jantzen Audio 3.3uF 800V Silver Z-Cap Crossover Capacitor
Brand: Jantzen Audio
SKU: 027-776
Price: 43.78 USD
Availability: OutOfStock
Rating: 5 (3 reviews)

Read 3 Reviews | 1 Question, 5 Answers or

Jantzen Audio

Part #027-776

Jantzen Audio 3.3uF 800V Silver Z-Cap Crossover Capacitor

Jantzen Audio

Part #027-776

Model: 001-0654

Read 3 Reviews | 1 Question, 5 Answers or

0.10uf 0.22uf 0.39uf 0.47uf 1.0uf 1.5uf 2.2uf 3.3uf 3.9uf 4.7uf 5.6uf 6.8uf 10uf 12uf 15uf 18uf 22uf

Jantzen Audio Silver capacitors are possibly the most detailed caps on the market. These caps are constructed of a specially wound metallized polypropylene, high purity silver leads for the absolute best signal transfer, resin-sealed end caps to protect against humidity, and flame-retardant tape wrap. Truly, an outstanding audio component!

Key Features

Dimensions: 30mm x 45mm
Silver provides a high and tight quality and unparalleled connectivity
Rated Voltage: 1200 VDC / 800 VAC
Pure silver lead wires
A tolerance of ±2% (on nominal value)

Frequently Bought Together

This Product: Jantzen Audio 3.3uF 800V Silver Z-Cap Crossover Capacitor	$43.78
Harrison Labs FMOD Inline Crossover Pair 50 Hz Low Pass RCA	$28.00
Solder Sucker Desoldering Bulb One Ounce Teflon Tip	$3.98
Electronic Solder 60/40 0.8mm (0.031") Diameter 1 lb. Spool	$32.98

Total Price: $108.74

This Product:Jantzen Audio 3.3uF 800V Silver Z-Cap Crossover Capacitor$43.78

Harrison Labs FMOD Inline Crossover Pair 50 Hz Low Pass RCA$28.00

Solder Sucker Desoldering Bulb One Ounce Teflon Tip$3.98

Electronic Solder 60/40 0.8mm (0.031") Diameter 1 lb. Spool$32.98

4 ItemsTotal Price: $108.74

Overview

Jantzen Audio 3.3uF 800V Silver Z-Cap Crossover Capacitor

Product Features

Dimensions: (Ø 30mm - L: 45mm)
Where the Superior Z-Cap is made with pure copper lead-wires, the Silver Z-Cap is made with pure silver lead-wires, changing the sound characteristics of the capacitor slightly.
Highly recommended for tweeters and mid-range application for high-end passive speakers and as coupling capacitors in tube and power amplifiers.
The Silver Z-Cap is a metalized polypropylene foil capacitor but made as special construction we call a “Super MPK Capacitor”.
Super MKP capacitors are made with a double lane of metalized polypropylene foil, hence a double foil construction.

By using special winding machines and winding techniques, two capacitors are connected in series within one capacitor housing,
When making this type of capacitor you therefore need 4 times the foil used in standard type metalized polypropylene foil capacitors.
Compared to standard type metalized polypropylene foil capacitors, the Superior Z-Cap is on a higher audiophile level, where even finest nuance improvements can be heard.
An extremely well made and precise MKP capacitor with a tolerance on capacitance of only +/- 2%.
Jantzen does not fill their capacitors with any dielectric fluid, which eliminates all risks of evaporation or leakage that can shorten longevity and quality of the capacitor.

Technical Data

Type: Non-polarized super MKP (double foil lanes)
Dielectric: Polypropylene film
Construction: Double-layer round tubular type axial leads
Winding: Bifilar extended metalized foil
Test Voltage: 150% rated voltage
Electrodes: Aluminum metallized vacuum deposited
Contacts: Non-inductive zinc thermally sprayed extended film
Coating: Silver plastic tape wrapped black resin, sealed in an anodized aluminum tube
Leads: Pure silver
Voltage rating: 1200 VDC / 800 VAC from 0.1 μF to 0.39μF
800 VDC / 630 VAC from 0.47 μF to 22μF

Capacitance tolerance: ±2% (on nominal value)
Dielectric constant: Non-polar dielectric
Dissipation factor: Extremely low 4 / 6
Dielectric absorption factor: ＜0.5% @20℃
Dielectric thickness: PB=6µm
Equivalent series resistance: Extremely low
Self-inductance: 0 nH
Insulation resistance: ＞100.000 MΩ@20℃
Temperature coefficient: -200℃x10-6/℃
Temperature Range: -55℃to +85℃
Metal layer thickness: PB=0.4µm
Metal layer conductivity: PB =2.5 Ω/cm2

Product Details
Brand	Jantzen Audio
Model	001-0654
Part Number	027-776
UPC	844632062216
Unit of Measure	Each
Weight	0.05

Product Specifications
Capacitance	3.3 uF
Tolerance	2%
Voltage Rating	800V
