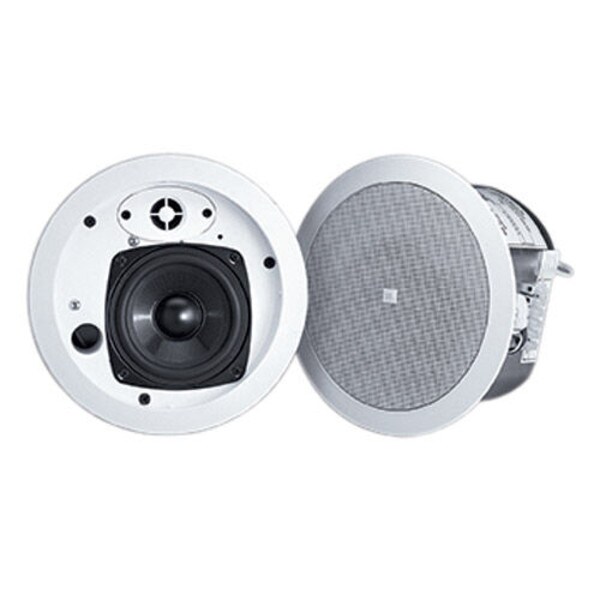

JBL Control 24CT Micro 4" 2-Way Ceiling Speaker Pair

JBL Professional
Part #246-702

JBL Control 24CT Micro 4" 2-Way Ceiling Speaker Pair

JBL Professional
Part #246-702
Model: Control 24CT Micro
Low distortion and a smooth, natural frequency response make the Control 24CT Micro ideal for medium-volume business music systems as well as for the medium to low SPL segments of larger or louder systems.
Key Features
  • Extremely wide 150° coverage
  • Smooth frequency response
  • 4-1/2" woofer, injection molded graphite cone with butyl rubber surround
  • 1/2" polycarbonate tweeter for extended response
  • 8 watt multitap transformer for 70V/100V systems
  • Shallow 4" depth
  • Packaged with grill, backcan and tile rails for fast installation and easy dealer stocking
Similar items that may interest you:
See all items in Commercial Ceiling Speakers
Your Price: $192.00
+ FREE SHIPPING
MSRP: $236.34
Save $44.34 (19%)
Bulk Pricing

Back-Ordered

Estimated back in stock 9/5/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

JBL Control 24CT Micro 4" 2-Way Ceiling Speaker Pair

The Control 24CT Micro is a compact in-ceiling speaker, providing full, high quality sound for background music and music-plus-paging systems. These speakers are ideally suited for a wide variety of applications, from restaurants and specialty retail stores to professional offices and airports. Low distortion and a smooth, natural frequency response make the Control 24CT Micro ideal for medium volume business music systems as well as for the medium to low SPL segments of larger or louder systems. Low frequency output can be augmented with the addition of one of the Control Contractor subwoofer models. Similar mid/high frequency voicing to other JBL Control Contractor loudspeakers can, in many systems, allow for mixing and matching of models within zones without requiring separate equalization.

Installation of the Control 24CT Micro is quick and easy. The loudspeaker is packaged with the backcan, grill, support backing bracket and tile rails. In addition, optional new
construction brackets are available. The entire installation can be accomplished without requiring access above the ceiling. A template is provided for marking the cutout. An innovative C-shaped support backing plate can be installed from below through the cutout to reinforce the top of the ceiling material. Tile bridge rails are included which can be screwed onto the C-plate to extend support to the T-channel grid in suspended ceiling installations. After the speaker is fitted through the cutout, it is held securely in place via mounting tabs which tighten onto the C-plate, if used, or directly onto the ceiling material. The Control 24CT Micro backcan is made of formed steel and the speaker is suitable for use in air handling spaces per UL2043. An attachment loop is provided on the backcan for cabling. A seismic tab is provided as a secondary support.

The Control 24CT Micro trim and baffle are paintable to match any decor.

Specifications: • Frequency response: 85 Hz to 20 kHz (-10 dB) • Power handling: 30 watts continuous program power (15 watts pink noise) • Sensitivity: 86 dB (1W/1m) • 70V/100V taps: 8W, 4W, 2W, 1W (and 0.5W for 70V only) • Dimensions: 4.2" H x 7.7" Dia. • Weight: 4.4 lbs.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandJBL Professional
ModelControl 24CT Micro
Part Number246-702
UPC050036904650
Unit of MeasurePairs
Weight4.85

Product Specifications

Input Rating70V|100V
Mounting StyleIn-ceiling
Woofer Diameter4"
Special FeaturesEnclosed Back-UL1480-UL2043
