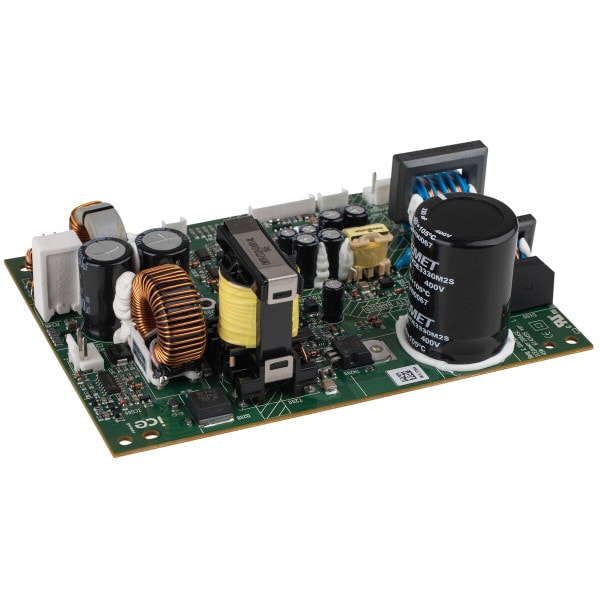

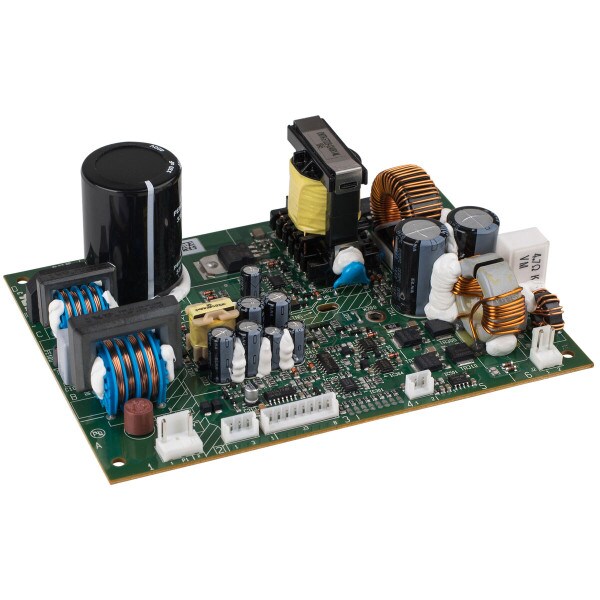

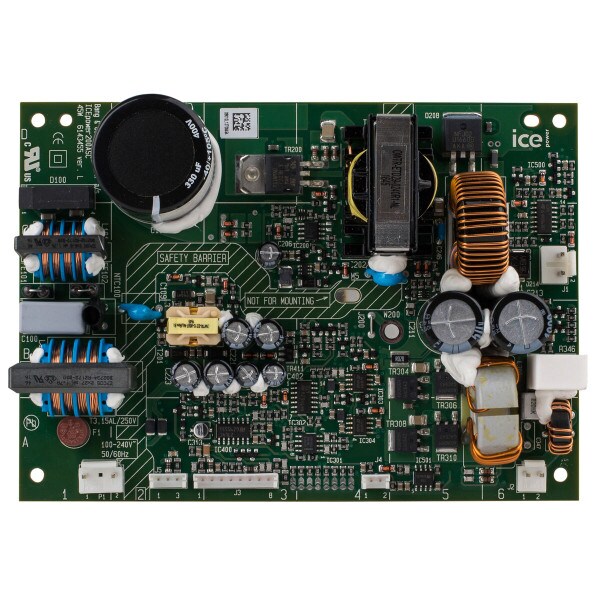

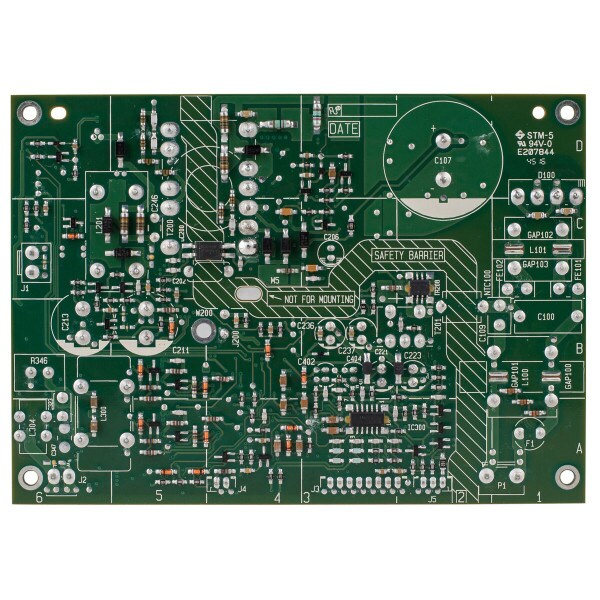

ICEpower 200ASC Class D Audio Amplifier with Power Supply Module 1 x 200W

ICEpower
Part #326-208

ICEpower 200ASC Class D Audio Amplifier with Power Supply Module 1 x 200W

ICEpower
Part #326-208
Model: 200ASC
The 200ASC combines an efficient forward type power supply with a 1x 200W high quality class D amplifier.
Key Features
  • ICEpower's patented COM modulation and MECC control techniques ensure excellent audio performance
  • Power supply and amp board built into one small PC board
  • Integrated ICEpower supply with separate AUX and standby functionality makes for a compact, turnkey power solution
  • Plug-and-play JST connectors and optional 200AC amp modules for a wide range of speaker and amplifier applications
  • 47 VDC and 12 VDC output for powering 200AC and preamp boards
  • Quiet running fanless operation
Your Price: $129.99
+ FREE SHIPPING
Bulk Pricing
Quantity:Qty: 1-3 $129.99/ea
Quantity:Qty: 4-9 $125.51/ea
Quantity:Qty: 10+$121.02/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEpower 200ASC Class D Audio Amplifier with Power Supply Module 1 x 200W

The 200ASC combines an efficient forward type power supply with a 1x 200W high quality class D amplifier. It includes a DC hanger bus for powering up to two 200AC hanger amplifiers. On its own it is therefore perfect for single channel applications such as subwoofers, bass and guitar amplifiers. Combined with 200AC hanger amplifiers, it can be used for 2- and 3-way PA speakers, studio monitors, hi-fi and home automation amplifiers.

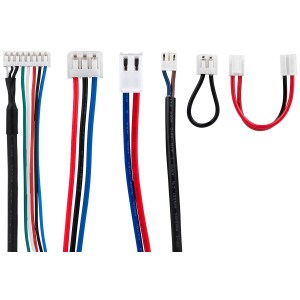

Note:Requires the 326-140 ICEpower Amplifier Module 200ASC Wiring Harness Kitfor full stand-alone functionality (sold separately).

Specifications: • Wattage output: 1 x 200W @ 4 ohms 0.2% THD+N, 10-20,000 Hz • Frequency response: 10-20,000 Hz all loads • Dynamic range: 110 dBA • Total efficiency: 79% @ 200W 4 ohm • DC-Bus: 47 VDC and +/-12 VDC @ 0.4A maximum • Input voltage: 10~240 VAC 50/60 Hz • Maximum output current limit: 12.5A • Dimensions: 5.9" W x 4.25" D x 1.8" H.

Product Details

BrandICEpower
Model200ASC
Part Number326-208
UPC848864053820
Unit of MeasureEach
Weight1.8

Product Specifications

Board Type1 Channel Mono Amp
Power (RMS/Channel 8 ohms)51 - 100 Watts
