HiVi RT2H-A Planar Isodynamic Tweeter

HiVi
Part #297-407

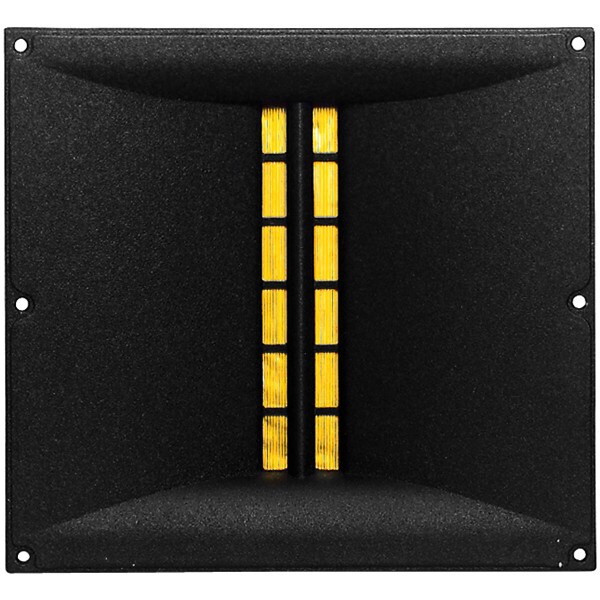

HiVi RT2H-A Planar Isodynamic Tweeter

HiVi
Part #297-407
Model: RT2H-A
• Planar • Power handling: 30 watts RMS/60 watts max • Nominal impedance: 8 ohms • DC resistance: 7 ohms • Frequency response: 1,700-25,000 Hz • SPL: 94 dB 1W/1m
Key Features
  • Nearly weightless Kapton diaphragm for incredible transient response
  • Semi-horn loaded faceplate for improved efficiency
  • Large diaphragm can accommodate crossovers as low as 3,000 Hz
Your Price: $104.98
+ FREE SHIPPING
MSRP: $136.99
Save $32.01 (23%)
Bulk Pricing
Quantity:Qty: 1-3 $104.98/ea
Quantity:Qty: 4-9 $99.73/ea
Quantity:Qty: 10+$94.48/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HiVi RT2H-A Planar Isodynamic Tweeter

Why Isodynamic? Contrary to a conventional dynamic driver, these transducers have a driving force distributed evenly over the whole area of their vibrating elements. The key feature of the RT2C-A and the RT2H-A is the membrane, which consists of Kapton film with a pattern of aluminum conductors. The conductors cover about 90% of the whole vibrating area. The membrane assembly is placed precisely between two rows of Neodymium and Barium Ferrite bar magnets. A larger membrane area provides higher power handling and substantially extended low-end cut-off frequency. The aluminum mounting flange, with flared waveguide, controls the frequency response and directivity of the tweeter. These tweeters are magnetically shielded and are extremely flat with a depth only 27mm including the mounting flange.

Product Details

BrandHiVi
ModelRT2H-A
Part Number297-407
UPC844632021787
Unit of MeasureEach
Weight1

Product Specifications

Cutout Diameter6.25" W x 6.13" H
Tweeter TypePlanar
Power Handling (RMS)30 Watts
Impedance8Ω
Frequency Response1,700 to 25,000Hz
Sensitivity94dB 2.83V/1m

Mounting Information

Overall Outside Diameter7.19" W x 6.63" H"
Depth1.75"
