HDMI 2.0 7.1 Channel DAC Audio Extractor D-Embedder

Parts Express
Part #180-1104

HDMI 2.0 7.1 Channel DAC Audio Extractor D-Embedder

Parts Express
Part #180-1104
More television manufacturers are omitting RCA analog and digital audio outputs, leaving owners without HDMI input equipment in the lurch. The solution is this HDMI audio extractor that extracts 7.1 audio out of your HDMI signal, while allowing the full signal to pass through.
Key Features
  • Pulls the audio signal from HDMI source and converts to analog and digital signals to use with audio equipment without HDMI ports
  • Built-in EDID emulator for 2, 5.1 and 7.1-channel audio
  • HDMI passes through with no loss in video resolution
  • Four standard 3.5 mm jacks for analog multi-channel audio output
  • Compatible with HDMI, HDCP 1.2 and DVI 1.0
  • HDMI and Optical S/PDIF audio sampling rate up to 192 kHz
  • HDMI output doesn't need to be hooked up for digital and audio output signal
Your Price: $39.98
MSRP: $45.88
Save $5.90 (13%)
Bulk Pricing
Quantity:Qty: 1-9 $39.98/ea
Quantity:Qty: 10+$35.98/ea
Order in the next 3 hr 0 min to ship today. Details

47In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

HDMI 2.0 7.1 Channel DAC Audio Extractor D-Embedder

Adding equipment to your home theater system is difficult when devices don't share the same technology. It is often necessary to find a work-around such as connecting an HDMI to the television and running a Toslink cable back to the AV receiver. This can be a difficult and costly exercise, and you might not get the audio signal that you want.

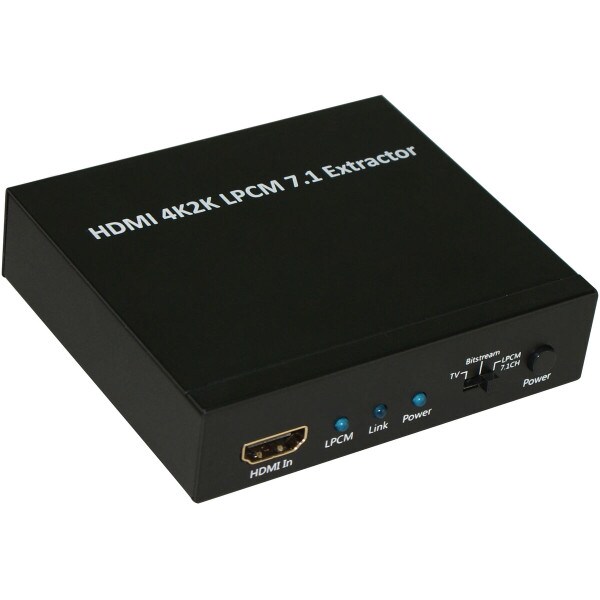

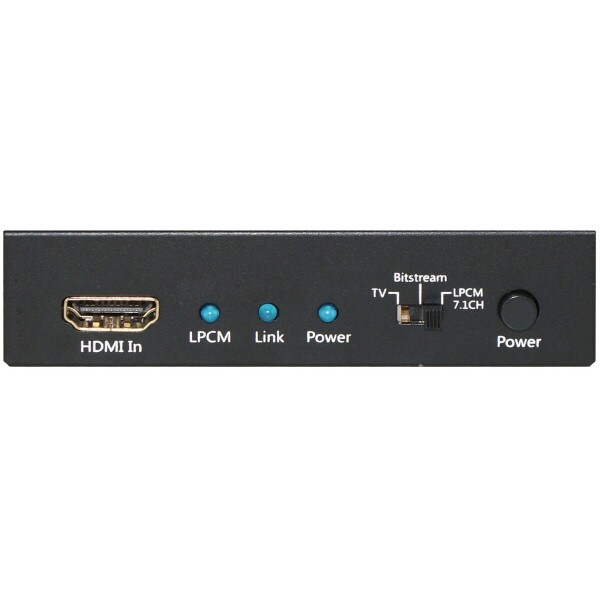

The HDMI 4K2K LPCM extractor enables you to extract audio signals from your HDMI source. When connecting to a TV or display you don't always get the best audio, or in the case of a PC monitor, no audio at all. With this audio extractor you take your original HDMI audio signal and convert it to digital optical or analog multi-channel audio. This lets you send and audio signal to external speakers or extend your audio signal pathway. Use the three position switch on the front of the extractor to match the sources audio EDID. Meanwhile, the HDMI output sends a true 4K2K video without down grading the resolution.

Specifications: • HDMI video support: Up to 1080p + 3D • Power Requirements: Includes 5 VDC, 2A AC adapter • HDMI audio formats: LPCM 2/5.1/7.10 Ch, DTS 2~5.1 Ch, and DTS-HD master audio • Optical format: LPCM 2 Ch, and DTS 2~5.1 Ch • L/R audio format: 4 x 3.5 mm 3-conductor phone jacks with output format 7.1 Ch analog audio • Video bandwidth: 300 Mbps / 10 Gbps • Dimensions: 3.74" W x 3.23" D x 0.945" H (95 x 82 x 24 mm).

Product Details

BrandParts Express
Part Number180-1104
UPC848864056579
Unit of MeasureEach
Weight0.85
