Goldwood GW-8003/8 8" Full Range Driver w/Whizzer

Goldwood
Part #290-379

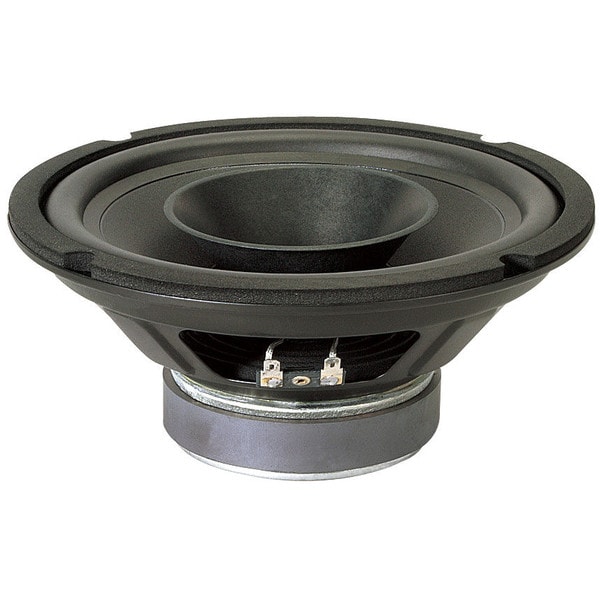

Goldwood GW-8003/8 8" Full Range Driver w/Whizzer

Goldwood
Part #290-379
Model: GW-8003/8
Poly cone 8" driver with unique paper whizzer cone. The frequency range that this driver covers is extremely wide, making it useful as a ceiling speaker, background music speaker, or as a single-driver hi-fi speaker.
Key Features
  • Vented pole piece keeps the 1-1/2" voice coil cool for high power handling
  • Unique poly cone with paper whizzer cone and rubber surround
  • Bumped back plate protects the voice coil during moments of over excursion
  • Qts of 0.79 is ideal for infinite baffle configurations
Your Price: $27.98
MSRP: $45.99
Save $18.01 (39%)
Bulk Pricing
Order in the next 19 hr 36 min to ship today. Details

16In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Goldwood GW-8003/8 8" Full Range Driver w/Whizzer

Poly cone 8" driver with unique paper whizzer cone. The frequency range that this driver covers is extremely wide, making it useful as a ceiling speaker, background music speaker, or as a single-driver hi-fi speaker. The rubber surround provides reliable, long-lasting performance while the 1-1/2" voice coil ensures good power handling.

Product Details

BrandGoldwood
ModelGW-8003/8
Part Number290-379
UPC643420100730
Unit of MeasureEach
Weight3.6

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter7.56
Power Handling (RMS)130 Watts
Power Handling (MAX)260 Watts
Impedance8Ω
Frequency Response28 to 20,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)41.5Hz
DC Resistance (Re)7.3Ω
Voice Coil Inductance (Le)0.62mH
Mechanical Q (Qms)3.23
Electromagnetic Q (Qes)1.04
Total Q (Qts)0.79
Compliance Equivalent Volume (Vas)1.57ft³
Mechanical Compliance of Suspension (Cms)0.69mm/N
BL Product (BL)6.26T·m
Diaphragm Mass Inc. Airload (Mms)21.2g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)214.08cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8"
Baffle Cutout Diameter7.125"
Depth3.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1ft³
Sealed F351.1Hz
Vented Volume1.5ft³
Vented F338.7Hz
