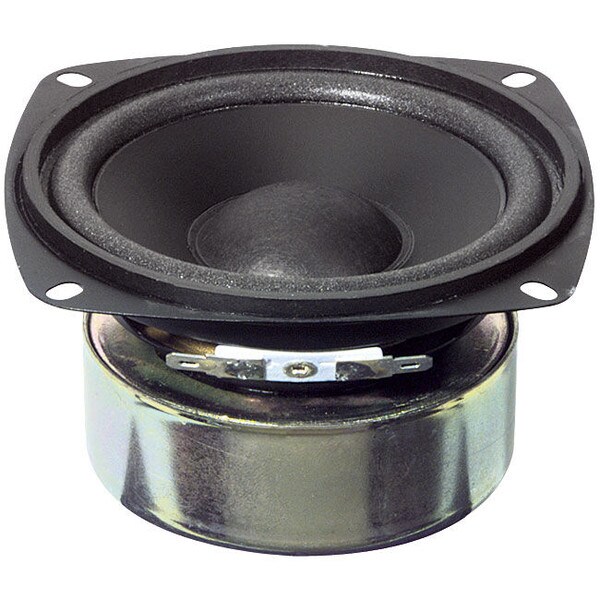

Goldwood GW-204/8S 4" Shielded Poly Woofer 8 Ohm

Goldwood
Part #290-372

Goldwood GW-204/8S 4" Shielded Poly Woofer 8 Ohm

Goldwood
Part #290-372
Model: GW-204/8S
The poly-laminated paper cone, treated foam surround, and polymer dustcap give these drivers a very smooth frequency response with minimal cone breakup. The shielded magnet structure of this driver makes it great for A/V applications.
Key Features
  • Shielded design for extra sensitivity and close placement to sensitive TVs or computers
  • Smooth frequency response
  • Pincushion frame for close center-to-center speaker placement
Your Price: $13.19
MSRP: $21.99
Save $8.80 (40%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Goldwood GW-204/8S 4" Shielded Poly Woofer 8 Ohm

The poly-laminated paper cone, treated foam surround, and polymer dustcap give these drivers a very smooth frequency response with minimal cone breakup. The shielded magnet structure of this driver makes it great for A/V applications.

Product Details

BrandGoldwood
ModelGW-204/8S
Part Number290-372
UPC643420100365
Unit of MeasureEach
Weight1.4

Product Specifications

Nominal Diameter4-1/2"
Power Handling (RMS)40 Watts
Power Handling (MAX)70 Watts
Impedance
Frequency Response70 to 13,000Hz
Sensitivity83.7dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)136.9Hz
DC Resistance (Re)7.3Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)6.82
Electromagnetic Q (Qes)2.02
Total Q (Qts)1.56
Compliance Equivalent Volume (Vas)0.04ft³
Mechanical Compliance of Suspension (Cms)0.28mm/N
BL Product (BL)3.9T·m
Diaphragm Mass Inc. Airload (Mms)4.9g
Maximum Linear Excursion (Xmax)1.5mm
Surface Area of Cone (Sd)53.52cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.125"
Baffle Cutout Diameter4"
Depth2.5625"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.05ft³
Sealed F3127.3Hz
