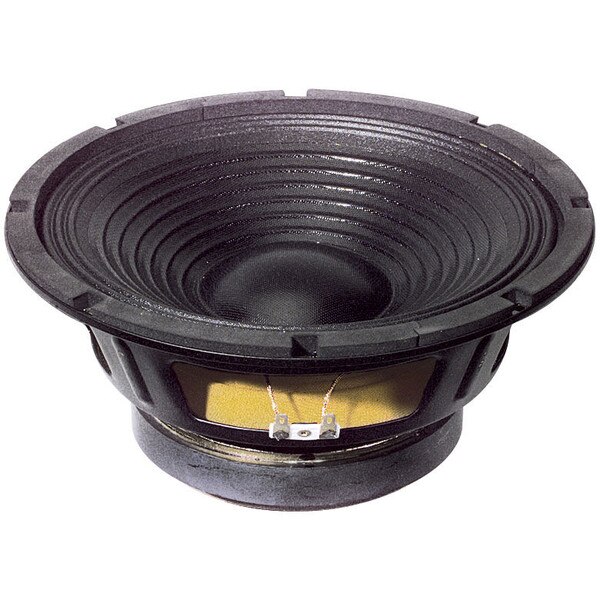

Goldwood GW-1058 10" Pro Woofer

Goldwood
Part #290-380

Goldwood GW-1058 10" Pro Woofer

Goldwood
Part #290-380
Model: GW-1058
Designed for sound reinforcement systems, lead guitar and rhythm guitars, practice amplifiers for bass guitar, stage monitors, and vocal PA systems. They feature accordion paper surround, poly laminated paper cone, and a vented pole piece.
Key Features
  • 94 dB sensitivity for high output capabilities
  • Perfect replacement driver in 4 x 10" bass cabinets
  • Vented pole piece keeps voice coil cool and lowers compression
  • Treated paper cone and accordion surround can withstand years of abuse
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $63.98
MSRP: $83.99
Save $20.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $63.98/ea
Quantity:Qty: 4-9 $60.78/ea
Quantity:Qty: 10+$57.58/ea
Ships next business day. Details

Only 2 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Goldwood GW-1058 10" Pro Woofer

Designed for sound reinforcement systems, lead guitar and rhythm guitars, practice amplifiers for bass guitar, stage monitors, and vocal PA systems. They feature accordion paper surround, poly laminated paper cone, and a vented pole piece.

Product Details

BrandGoldwood
ModelGW-1058
Part Number290-380
UPC643420100082
Unit of MeasureEach
Weight9.125

Product Specifications

Nominal Diameter10"
Power Handling (RMS)180 Watts
Power Handling (MAX)255 Watts
Impedance8Ω
Frequency Response45 to 4,000Hz
Sensitivity94.2dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)43.4Hz
DC Resistance (Re)5.3Ω
Voice Coil Inductance (Le)0.28mH
Mechanical Q (Qms)2.7
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)2.25ft³
Mechanical Compliance of Suspension (Cms)0.36mm/N
BL Product (BL)10.83T·m
Diaphragm Mass Inc. Airload (Mms)37.39g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)355.42cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialPaper
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.125"
Baffle Cutout Diameter9.25"
Depth5"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.12ft³
Sealed F390.4Hz
Vented Volume1.7ft³
Vented F347.8Hz
