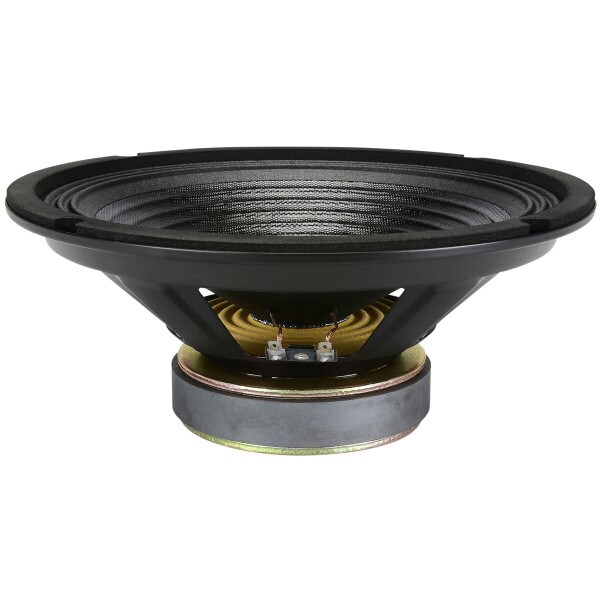

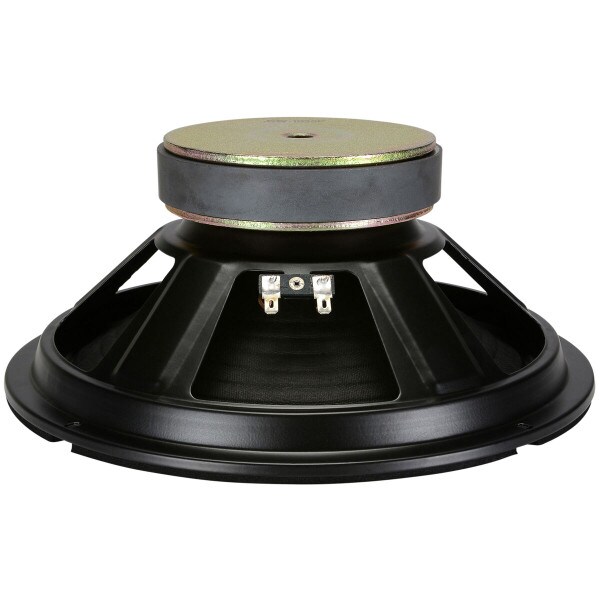

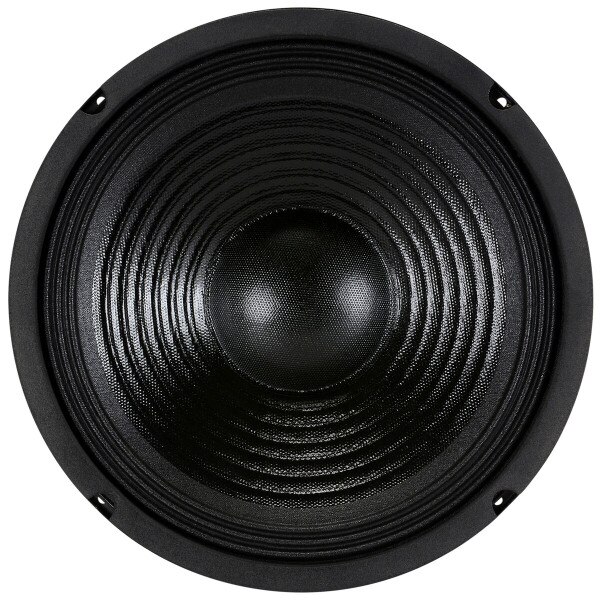

Goldwood GW-1038/PA 10" PA / Musical Instrument Speaker

Goldwood
Part #290-390

Goldwood GW-1038/PA 10" PA / Musical Instrument Speaker

Goldwood
Part #290-390
Model: GW-1038P/A
The Musical Instrument Series by Goldwood is a versatile loudspeaker range for guitar, keyboard and bass instrument sound as well as for PA use. Purists know that only a paper accordion edge transducer delivers the characteristic presence power needed to bring out the best in musical instruments.
Key Features
  • 120 watt power handling for high output capabilities
  • Rising frequency response for detail and attack
  • Flat response to 60 Hz to deliver a low frequency growl when needed
  • 8 ohm impedance is perfect for use in 4 x 10" amps
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $51.98
MSRP: $67.99
Save $16.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $51.98/ea
Quantity:Qty: 4-9 $49.38/ea
Quantity:Qty: 10+$46.78/ea
Ships next business day. Details

Only 2 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Goldwood GW-1038/PA 10" PA / Musical Instrument Speaker

The Musical Instrument Series by Goldwood is a versatile loudspeaker range for guitar, keyboard and bass instrument sound as well as for PA use. Purists know that only a paper accordion edge transducer delivers the characteristic presence power needed to bring out the best in musical instruments.

Product Details

BrandGoldwood
ModelGW-1038P/A
Part Number290-390
UPC643420100129
Unit of MeasureEach
Weight5

Product Specifications

Nominal Diameter10"
Power Handling (RMS)120 Watts
Power Handling (MAX)210 Watts
Impedance8Ω
Frequency Response28 to 8,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)63.3Hz
DC Resistance (Re)7.3Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)4.19
Electromagnetic Q (Qes)1.21
Total Q (Qts)0.94
Compliance Equivalent Volume (Vas)1.66ft³
Mechanical Compliance of Suspension (Cms)0.26mm/N
BL Product (BL)7.65T·m
Diaphragm Mass Inc. Airload (Mms)24.5g
Maximum Linear Excursion (Xmax)2.5mm
Surface Area of Cone (Sd)360.7cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialPaper
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.125"
Baffle Cutout Diameter9.25"
Depth5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F369.6Hz
