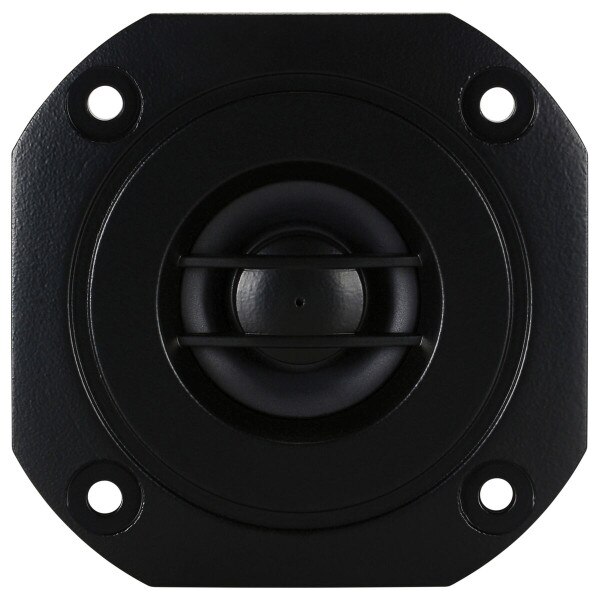

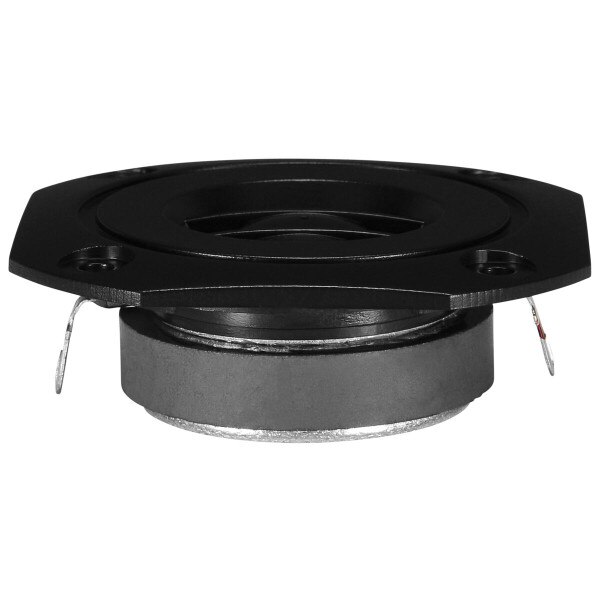

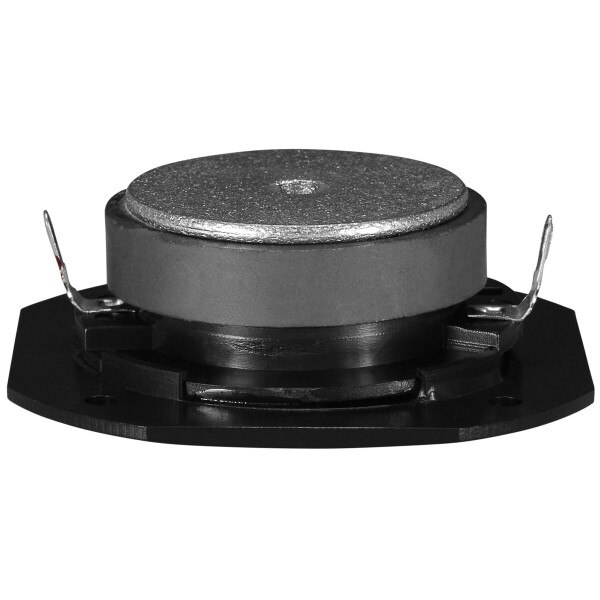

Goldwood GT-302 1/2" Mylar Dome Tweeter

Name: Goldwood GT-302 1/2" Mylar Dome Tweeter
Brand: Goldwood
SKU: 270-170
Price: 3.98 USD
Availability: InStock
Rating: 3.8 (42 reviews)

Read 42 Reviews | 11 Questions, 83 Answers or

Goldwood

Part #270-170

Goldwood GT-302 1/2" Mylar Dome Tweeter

Goldwood

Part #270-170

Model: GT-302

Read 42 Reviews | 11 Questions, 83 Answers or

Choose Goldwood's GT-302 for replacing blown tweeters in classic 2 and 3-way speakers. The 1/2" Mylar dome with acoustic lens offers great off-axis response, while ferrofluid cooling improves power handling.

Key Features

1/2" Mylar dome for great off-axis response
Ferrofluid cooled for high power handling
High 90 dB sensitivity

Product Details

Brand

Goldwood

Model

GT-302

Part Number

270-170

UPC

643420500158

Unit of Measure

Each

Weight

0.2

Product Specifications

Cone / Dome Diameter

0.5"

Cutout Diameter

1-15/16

Tweeter Type

Poly / Mylar Dome

Power Handling (RMS)

30 Watts

Impedance

8Ω

Frequency Response

4,000 to 19,000Hz

Sensitivity

90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)

2600Hz

Mounting Information

Overall Outside Diameter

2-3/8"

Depth

0.875"
