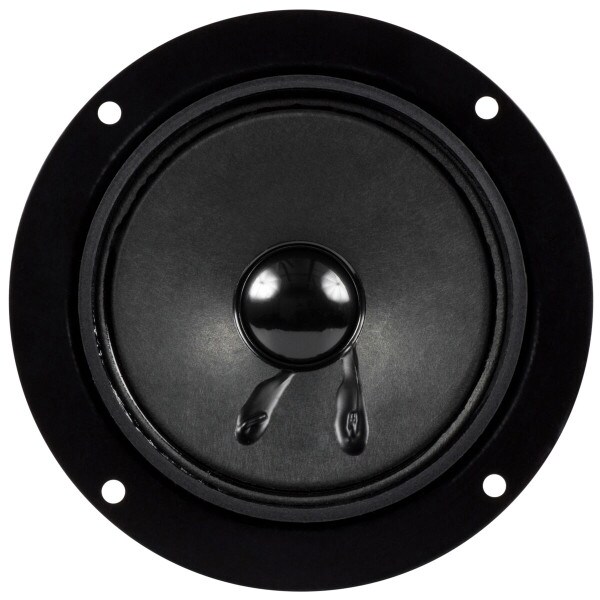

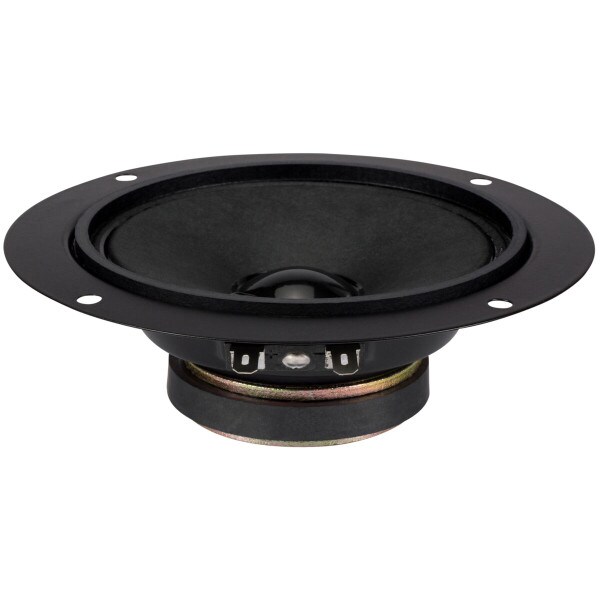

Great general-purpose 5" sealed back midrange driver. Features a paper cone, treated paper surround, and black aluminum dust cap. Offers a smooth and extended response, and mates well with cone tweeters.
Product Details | |
|---|---|
| Brand | Goldwood |
| Model | GM-35 |
| Part Number | 280-012 |
| UPC | 643420300000 |
| Unit of Measure | Each |
| Weight | 0.7986 |
Product Specifications | |
|---|---|
| Nominal Diameter | 5" |
| Power Handling (RMS) | 35 Watts |
| Power Handling (MAX) | 50 Watts |
| Impedance | 8Ω |
| Frequency Response | 1,500 to 10,000Hz |
| Sensitivity | 90dB 2.83V/1m |
| Voice Coil Diameter | 0.75" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 800Hz |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Paper |
| Voice Coil Former | Kapton® / Polyimide |
| Basket / Frame Material | Steel |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 5.13" |
| Baffle Cutout Diameter | 4.0625" |
| Depth | 1.625" |
| # Mounting Holes | 4 |
