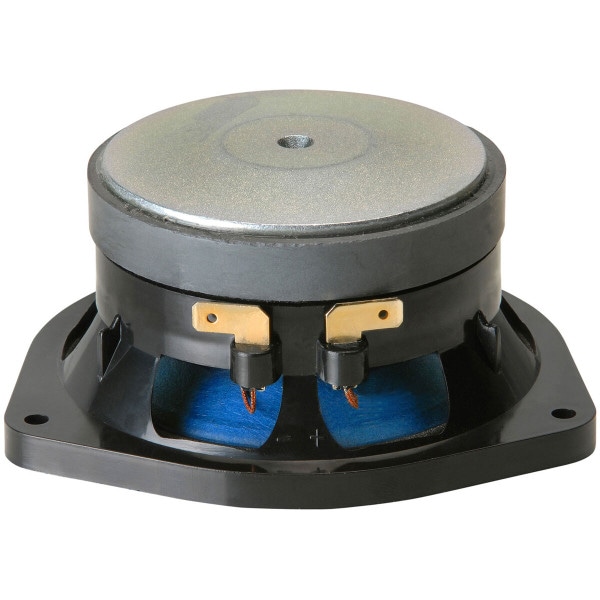

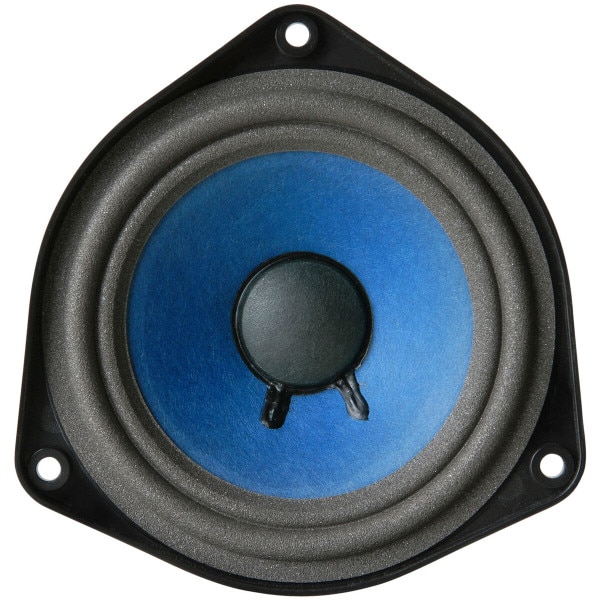

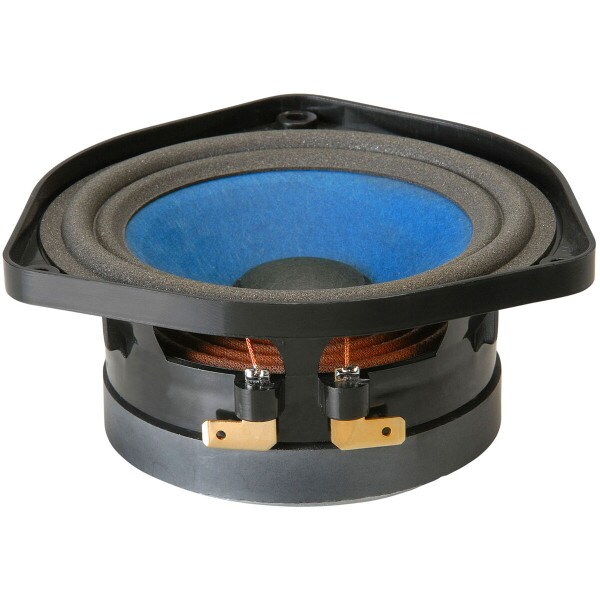

Replacement Speaker Driver for Bose 901 4-1/2" 1 Ohm

GRS
Part #290-922

Replacement Speaker Driver for Bose 901 4-1/2" 1 Ohm

GRS
Part #290-922
Model: RSB901-1
This driver's parameters were carefully optimized to match the performance of the classic Bose® 901® loudspeaker systems. Individually or in multiples, replacing your legendary but aging speakers has never been easier—or achieved better results.
Key Features
  • Drop-in replacement for Bose 901 drivers
  • Each individual driver is hand checked and tested
  • Fits Series III, IV, V and VI models, and more
  • Optimized cone/coil/suspension for linearity and reliability
  • 1 ohm nominal impedance
  • Premium-quality motor structure maximizes performance
Your Price: $34.98
MSRP: $45.99
Save $11.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $34.98/ea
Quantity:Qty: 4+$31.48/ea
Order in the next 1 hr 34 min to ship today. Details

1493In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Replacement Speaker Driver for Bose 901 4-1/2" 1 Ohm

This driver's parameters were carefully optimized to match the performance of the classic Bose® 901® loudspeaker systems. Individually or in multiples, replacing your legendary but aging speakers has never been easier—or achieved better results. The top plate and T-yoke are Japanese-made cold forged low carbon steel. The flat back plate provides a uniform surface area to which the magnet is bonded, and the outside of the back plate is chamfered to maximize flux density in the gap. Critical attention has been paid to the pole piece and voice coil tolerances, thereby assuring high yield and immunity to mechanical issues. High-grade Y-35 strontium ferrite magnet material is utilized in the motor structure to ensure consistent motor force. The cone is made of long fiber New Zealand blue color pulp paper, an ideal material for cone applications and the foam surround of this driver make it almost identical to the original manufacturers appearance, design and performance. It's rigid and just "lossy" enough to produce full, accurate sound. A 2-layer low oxygen copper voice coil is wound on a high temperature resistant polyimide former. Every driver is hand checked and tested, based on a ±2 dB window.

NOTE: This driver has an impedance of 1 ohm, and should be used only to replace the 4-1/2" driver in the Bose 901 (Series III or later) and Bose 802™ loudspeakers. Compatibility with other Bose loudspeaker models or automotive audio systems has not been verified. This product is not manufactured or distributed by Bose Corporation™, the owner of the registered trademarks BOSE®, BOSE 802™ and BOSE 901®.

Product Details

BrandGRS
ModelRSB901-1
Part Number290-922
UPC844632085055
Unit of MeasureEach
Weight1.8

Product Specifications

Nominal Diameter4-1/2"
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance1Ω
Frequency Response83 to 15,000Hz
Sensitivity91.5dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)83.44Hz
DC Resistance (Re)0.76Ω
Voice Coil Inductance (Le)0.11mH
Mechanical Q (Qms)2.4
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.24ft³
Mechanical Compliance of Suspension (Cms)1.08mm/N
Diaphragm Mass Inc. Airload (Mms)3.38g

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.2"
Baffle Cutout Diameter4.02"
Depth2.17"
# Mounting Holes3

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.08ft³
Sealed F3181.1Hz
Vented Volume0.15ft³
Vented F391.8Hz
