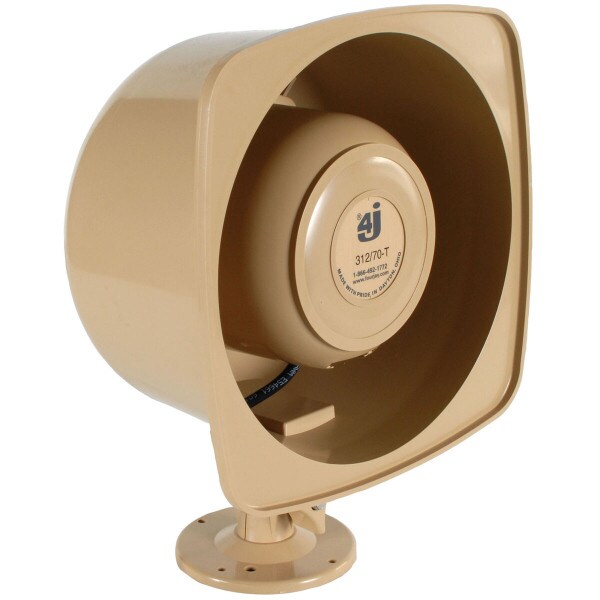

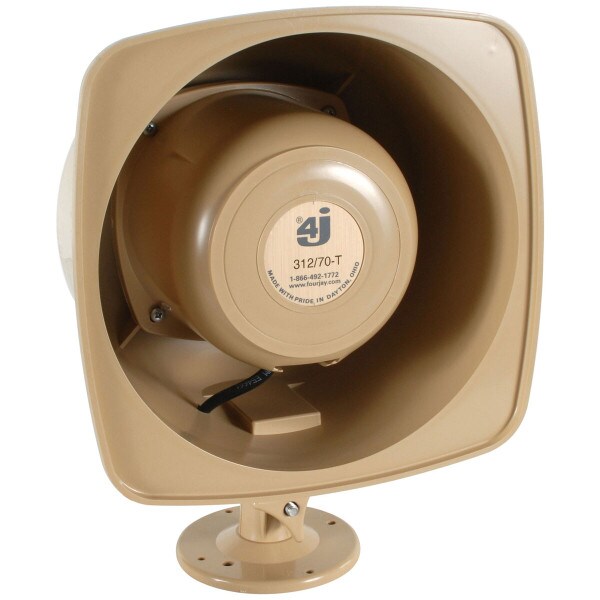

Rated at 12 watts continuous duty, the 312 series reflex horn speaker offers good frequency range for music and paging applications in moderately noisy environments. With a strong but lightweight construction of impact resistant ABS, it is strong enough to be mounted with a stud gun or concrete nails. The unique polycarbonate mounting base assembly and stainless steel fasteners offer two hole patterns for quick and easy mounting and adjustments allowing assembly to various electrical boxes. May also be recess mounted using the hole locations dimpled on the back of the flange. Tan in color. Available in 8 ohm and 70.7V versions. Made in the U.S.A.
Specifications: • Rated input: 70.7V line • Power taps: 12, 6, 3 & 1 watts • Frequency range: 400-5,000 Hz • Sensitivity: 97 dB • Mfg. #312/70-T • Net weight: 2-1/2 lbs.
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
Product Details | |
|---|---|
| Brand | Fourjay Industries |
| Model | 312/70-T |
| Part Number | 300-074 |
| UPC | 844632007361 |
| Unit of Measure | Each |
| Weight | 4.2 |
Product Specifications | |
|---|---|
| Speaker Type | PA Horn Speaker |
