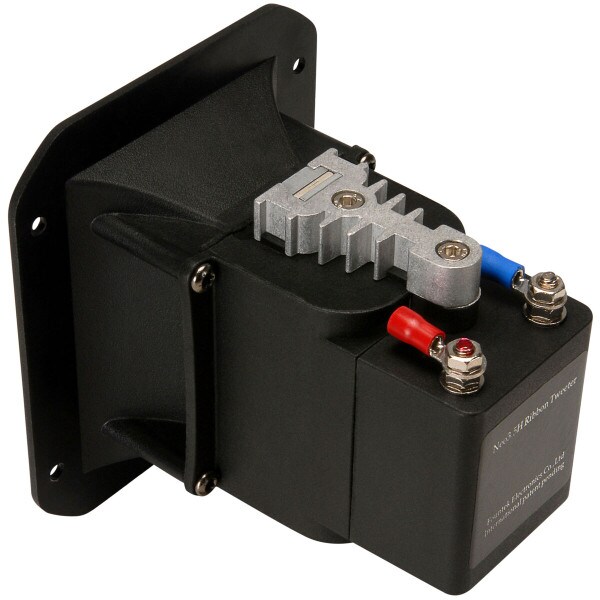

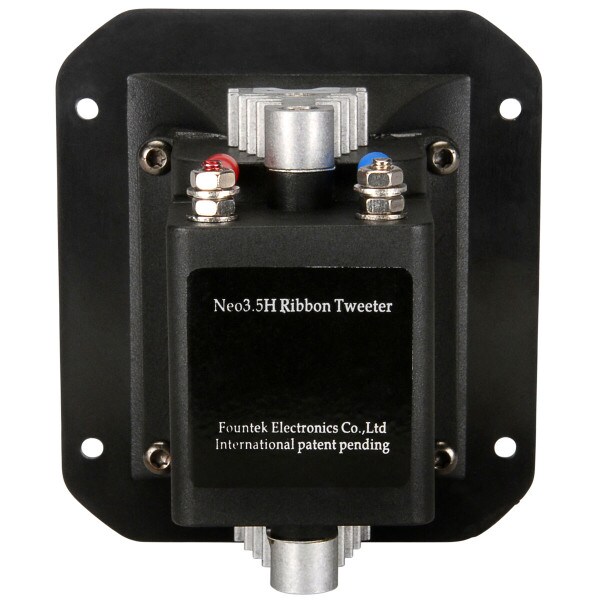

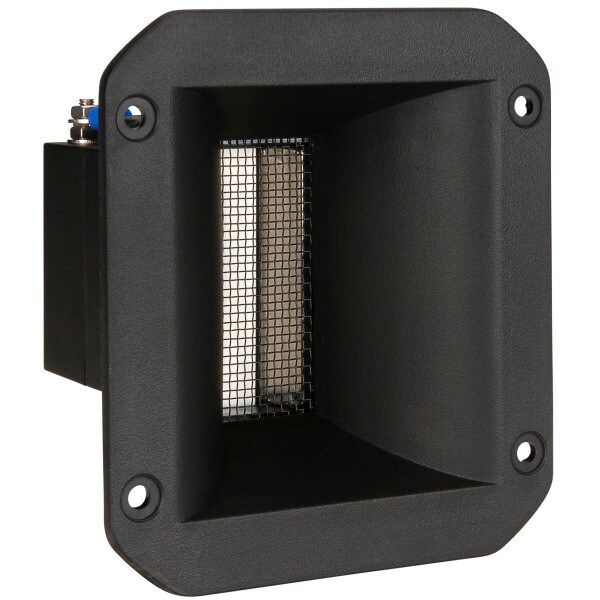

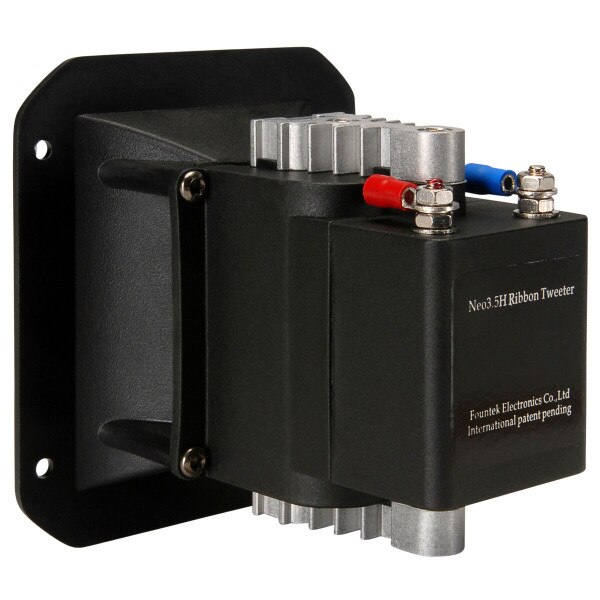

CLEARANCE Fountek NeoCD3.5H Horn Loaded Ribbon Tweeter

Fountek
Part #296-703

CLEARANCE Fountek NeoCD3.5H Horn Loaded Ribbon Tweeter

Fountek
Part #296-703
Model: NeoCD3.5H
Fountek’s NeoCD3.5H is a unique horn-loaded true ribbon tweeter that combines high sensitivity with the exceptional speed and detail of ribbon technology.
Key Features
  • Horn-loaded, true ribbon design
  • 2.36" H x 0.35" W ribbon element
  • 95.5 dB sensitivity combined with 1,100 to 30,000 Hz frequency response
  • Extremely fast transient response with wide horizontal dispersion
60 Day No Hassle Return Policy

Overview

Fountek NeoCD3.5H Horn Loaded Ribbon Tweeter

Fountek, an innovator in ribbon transducer technology, is the first to mate true ribbon technology with horn-loading for high efficiency and low distortion with their NeoCD3.5H . A reinforced sandwiched-aluminum ribbon diaphragm and strong neodymium motor structure are extremely responsive, and deliver musical detail with speed and accuracy, from 1,100 to 30,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot.

A taller element is used in the NeoCD3.5H, which tames vertical off-axis dispersion. This helps to minimize ceiling and floor bounce reflections for world-class, pin-point precise imaging, while the focused output also reduces the amount of sound pressure level drop over distance. Recommended minimum crossover frequency: 2,500 Hz @ 18 dB/octave.

Product Details

BrandFountek
ModelNeoCD3.5H
Part Number296-703
UPC848864004105
Unit of MeasureEach
Weight1.55

Product Specifications

Cutout Diameter3.39" x 2.70
Tweeter TypeRibbon
Power Handling (RMS)12 Watts
Impedance7Ω
Frequency Response1,100 to 30,000Hz
Sensitivity95.5dB 2.83V/1m

Thiele-Small Parameters

DC Resistance (Re)0.02Ω

Mounting Information

Overall Outside Diameter4.33" x 3.86"
Depth3.94"
