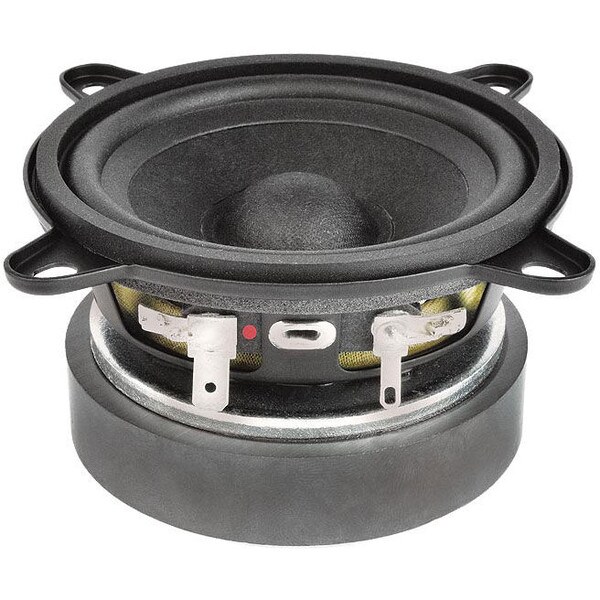

FaitalPRO 3FE25 3" Professional Full-Range Woofer 4 Ohm

FaitalPRO
Part #294-1103

FaitalPRO 3FE25 3" Professional Full-Range Woofer 4 Ohm

FaitalPRO
Part #294-1103
Model: 3FE25
FaitalPRO's do-it-all 3FE25 ceramic ferrite 3" full-range speaker has high sensitivity and flat frequency response. Perfect for use in pro, home, and car audio applications.
Key Features
  • Great for use as a midrange, midbass, or full-range driver
  • Ferrite version of the 3FE22
  • Ultra-flat frequency response
  • Copper cap in the motor for reduced distortion
  • Made in Italy
Your Price: $24.50
Bulk Pricing

Back-Ordered

Estimated back in stock 4/25/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 3FE25 3" Professional Full-Range Woofer 4 Ohm

FaitalPRO's 3FE25 3" ceramic ferrite professional woofer has exceptionally flat response from 100 Hz to 20,000 Hz, both on and off-axis, and features a 91 dB sensitivity due to a large ferrite magnet. Distortion is reduced through the use of a copper cap to create a demodulation circuit in the motor.

Great for use in compact professional line array speakers, the 3FE25 is also right at home in home audio, personal audio, and car audio applications. It's also ideal for fixed installation applications as a midbass, midrange, or full-range speaker. Made in Italy.

Product Details

BrandFaitalPRO
Model3FE25
Part Number294-1103
UPC848864011165
Unit of MeasureEach
Weight1.25

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.62
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response100 to 20,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.04mH
Mechanical Q (Qms)3.9
Electromagnetic Q (Qes)0.7
Total Q (Qts)0.6
Compliance Equivalent Volume (Vas)0.04ft³
Mechanical Compliance of Suspension (Cms)0.89mm/N
Diaphragm Mass Inc. Airload (Mms)2.4g
Maximum Linear Excursion (Xmax)1.73mm
Surface Area of Cone (Sd)30.2cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.16" (mounting tabs), 3.19"
Baffle Cutout Diameter2.82"
Depth2.15"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.04ft³
Sealed F3147.1Hz
Vented Volume0.05ft³
Vented F396.2Hz
