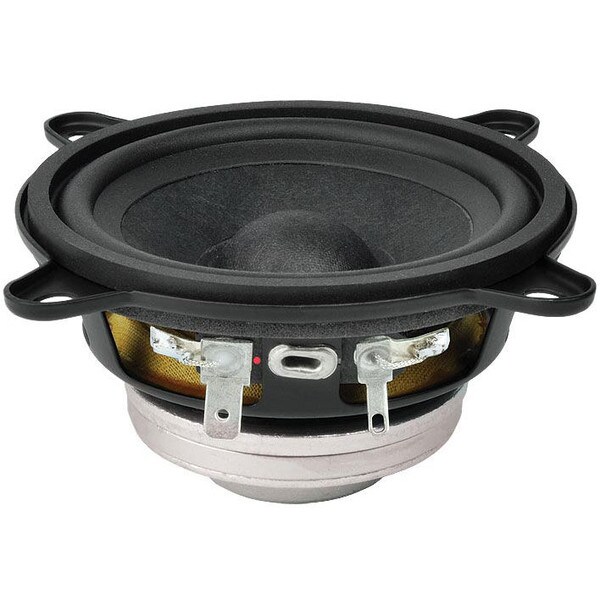

FaitalPRO 3FE22 3" Neodymium Professional Full-Range Woofer 4 Ohm

FaitalPRO
Part #294-1100

FaitalPRO 3FE22 3" Neodymium Professional Full-Range Woofer 4 Ohm

FaitalPRO
Part #294-1100
Model: 3FE22
FaitalPRO's do-it-all 3FE22 neodymium 3" full range speaker has high sensitivity and flat frequency response. Perfect for use in pro, home, and car audio applications.
Key Features
  • Wideband output from 100 to 20,000 Hz
  • Amazing off-axis frequency response
  • High 91 dB sensitivity
  • Great for use as point source drivers in compact line arrays
  • Made in Italy
Your Price: $37.50
Bulk Pricing
Ships next business day. Details

64In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 3FE22 3" Neodymium Professional Full-Range Woofer 4 Ohm

FaitalPRO's 3FE22 3" neodymium professional woofer has exceptionally flat response from 100 Hz to 20,000 Hz, both on and off-axis, and features a 91 dB sensitivity due to a powerful neodymium ring motor. Great for use in compact professional line array speakers, the 3FE22 is also right at home in home audio, personal audio, and car audio applications.

The superbly-balanced nature of this speaker is evidenced in the motor's Qts rating of 0.36, making it ideal for fixed installation applications, where high fidelity is required, as a midbass, midrange, or full-range speaker. Made in Italy.

Product Details

BrandFaitalPRO
Model3FE22
Part Number294-1100
UPC848864011134
Unit of MeasureEach
Weight0.53

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.62
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response100 to 20,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)110Hz
DC Resistance (Re)3.7Ω
Voice Coil Inductance (Le)0.1mH
Mechanical Q (Qms)3.57
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.04ft³
Mechanical Compliance of Suspension (Cms)0.86mm/N
Diaphragm Mass Inc. Airload (Mms)2.4g
Maximum Linear Excursion (Xmax)1.73mm
Surface Area of Cone (Sd)30.2cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.16" (mounting tabs), 3.19"
Baffle Cutout Diameter2.82"
Depth1.81"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.02ft³
Sealed F3247.4Hz
Vented Volume0.035ft³
Vented F3116Hz
