  • FaitalPRO 10FE200 10" Professional Woofer 8 Ohm

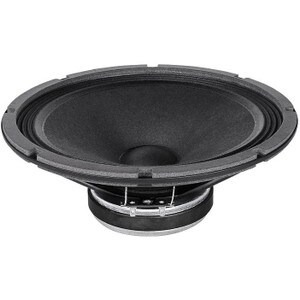

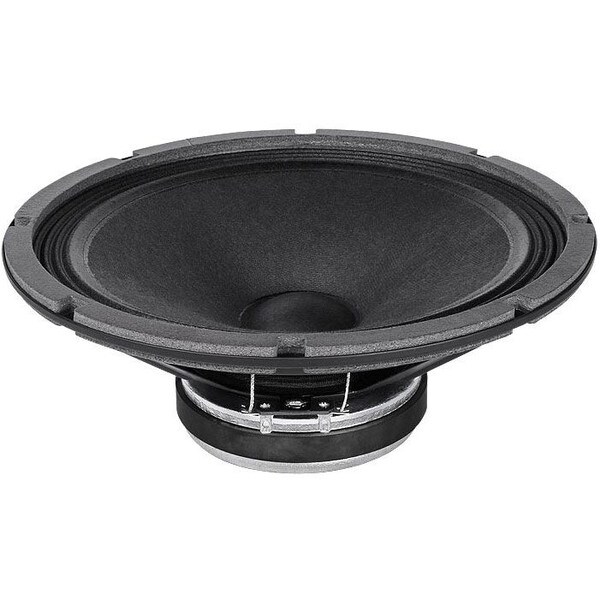

FaitalPRO 10FE200 10" Professional Woofer 8 Ohm

FaitalPRO
Part #294-1201

FaitalPRO 10FE200 10" Professional Woofer 8 Ohm

FaitalPRO
Part #294-1201
Model: 10FE200
FaitalPRO's economical 10FE200 10" woofer has the output and linear frequency response needed to use it as a large format midrange. The 8 ohm impedance also makes it great for use in high output home audio applications.
Key Features
  • Stamped steel frame and cloth accordion surround
  • High 96 dB sensitivity
  • Flat frequency response from 50 to 4,500 Hz
  • Made in Italy
Your Price: $71.00
Bulk Pricing
Ships next business day. Details

Only 3 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 10FE200 10" Professional Woofer 8 Ohm

The 10FE200 10" woofer from FaitalPRO features a high sensitivity of 96 dB (1W/1m), extremely flat frequency response from 50 to 4,500 Hz, and a shallow profile making it a natural choice for use as a large format midrange or midbass in multi-way professional speaker cabinets.

Good off-axis response and a mid-Qts rating of 0.7 allows the 10FE200 to be used in small and large-sized ported or sealed cabinets as a woofer. An 8 ohm impedance makes this version of the 10FE200 a great selection for high output home audio systems. Durability is insured by the treated paper cone and accordion surround. Made in Italy.

Product Details

BrandFaitalPRO
Model10FE200
Part Number294-1201
UPC848864008639
Unit of MeasureEach
Weight5.8

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.6
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Frequency Response50 to 4,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter1.46"

Thiele-Small Parameters

Resonant Frequency (Fs)55Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.42mH
Mechanical Q (Qms)11.3
Electromagnetic Q (Qes)0.74
Total Q (Qts)0.7
Compliance Equivalent Volume (Vas)1.89ft³
Mechanical Compliance of Suspension (Cms)0.34mm/N
BL Product (BL)8.2T·m
Diaphragm Mass Inc. Airload (Mms)24.5g
Maximum Linear Excursion (Xmax)4.67mm
Surface Area of Cone (Sd)332cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.11"
Baffle Cutout Diameter9.13"
Depth4.02"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F368.4Hz
Vented Volume2ft³
Vented F349.8Hz
