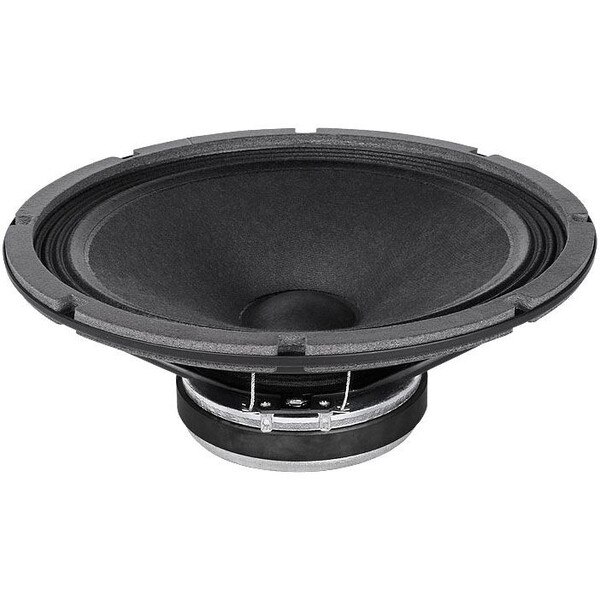

FaitalPRO 10FE200 10" Professional Woofer 4 Ohm

FaitalPRO
Part #294-1200

FaitalPRO 10FE200 10" Professional Woofer 4 Ohm

FaitalPRO
Part #294-1200
Model: 10FE200
FaitalPRO's economical 10FE200 10" woofer has the output and linear frequency response needed to use it as a large format midrange. The 4 ohm impedance also makes it great for use in high output car audio applications.
Key Features
  • Stamped steel frame and cloth accordion surround
  • High 96 dB sensitivity
  • Flat frequency response from 50 to 4,500 Hz
  • Made in Italy
Your Price: $71.00
Bulk Pricing
Order in the next 15 hr 30 min to ship today. Details

Only 4 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

FaitalPRO 10FE200 10" Professional Woofer 4 Ohm

The 10FE200 10" woofer from FaitalPRO features a high sensitivity of 96 dB (1W/1m), extremely flat frequency response from 50 to 4,500 Hz, and a shallow profile making it a natural choice for use as a large format midrange or midbass in multi-way professional speaker cabinets.

Good off-axis response and a mid-Qts rating of 0.5 allows the 10FE200 to be used in small and large-sized ported or sealed cabinets as a woofer. A 4 ohm impedance makes this version of the 10FE200 a great selection for high output car audio systems. Durability is insured by the treated paper cone and accordion surround. Made in Italy.

Product Details

BrandFaitalPRO
Model10FE200
Part Number294-1200
UPC848864008622
Unit of MeasureEach
Weight5.75

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter9.6
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance4Ω
Frequency Response50 to 4,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter1.46"

Thiele-Small Parameters

Resonant Frequency (Fs)55Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)9
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.5
Compliance Equivalent Volume (Vas)1.87ft³
Mechanical Compliance of Suspension (Cms)0.34mm/N
BL Product (BL)7T·m
Diaphragm Mass Inc. Airload (Mms)24.8g
Maximum Linear Excursion (Xmax)4.62mm
Surface Area of Cone (Sd)332cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.11"
Baffle Cutout Diameter9.13"
Depth4.02"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.2ft³
Sealed F387.4Hz
Vented Volume1.63ft³
Vented F355.6Hz
