  • Eminence NSW6021-6 21" Professional Neodymium Tour Grade Subwoofer Driver

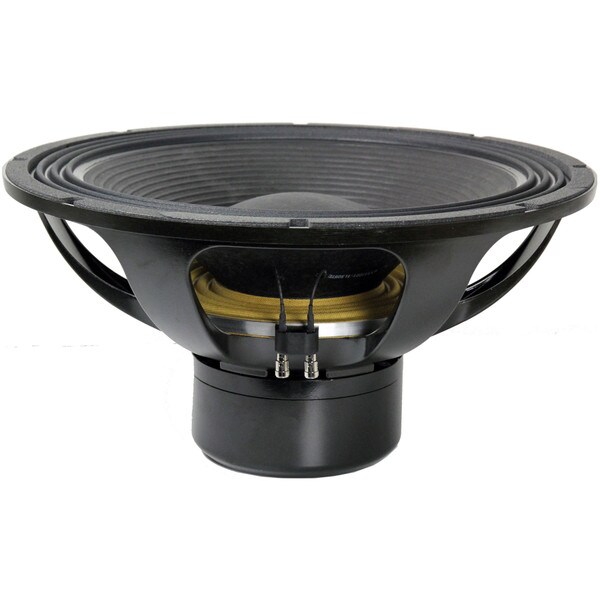

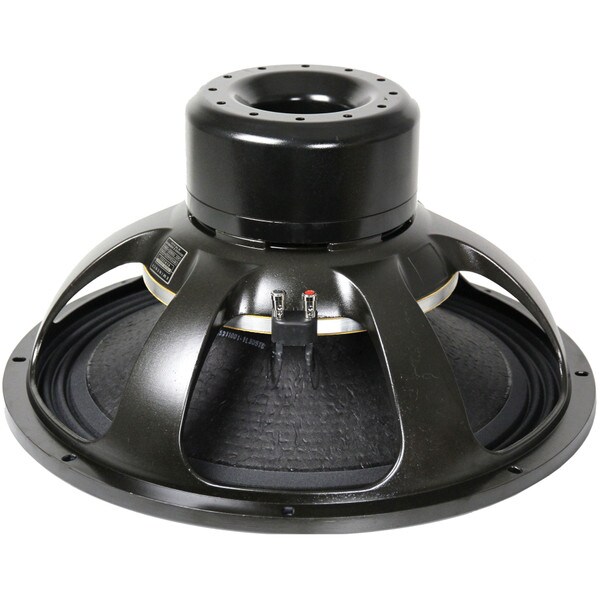

Eminence NSW6021-6 21" Professional Neodymium Tour Grade Subwoofer Driver

Eminence Speaker
Part #290-5662

Eminence NSW6021-6 21" Professional Neodymium Tour Grade Subwoofer Driver

Eminence Speaker
Part #290-5662
Model: NSW6021-6
The Eminence NSW6021-6 is arguably the best 21-inch professional subwoofer on the market. With a massive 6" voice coil, powerful neodymium motor, double spiders, and extensive venting this driver has 21 mm Xmax and handles up to 2,500 watts RMS. The result is unrivaled displacement and exceptionally high output capability with top of the line performance.
Key Features
  • 6" voice coil handles up to 2,500 watts RMS (5,000 watts peak) for unmatched output capability
  • 21mm Xmax allows for remarkable displacement potential
  • True double spider suspension keeps cone linear even under high excursion
  • Extreme output capability with minimal distortion
  • 6 ohm impedance provides an easy load for most amplifiers
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $1,209.99
+ FREE SHIPPING
MSRP: $1,299.99
Save $90.00 (7%)
Bulk Pricing
Order in the next 12 hr 39 min to ship today. Details

Only 2 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence NSW6021-6 21" Professional Neodymium Tour Grade Subwoofer Driver

If you need more bass, a lot more, then Eminence's NSW6021-6 is the driver for you. This massive 21" professional subwoofer is the ultimate of combination of efficiency and displacement making it one of the highest output subwoofer driver ever made. With an Xmax of 21 mm and sensitivity of 97 dB, this subwoofer is something special. Using a 6" voice coil with extensive venting, the NSW6021-6 can safely handle up to 2,500 watts RMS (5,000 watts peak) for the most extreme situations, while keeping power compression to a minimum. To keep weight reasonable the motor uses a huge neodymium magnet to drive the voice coil. The revolutionary wet pressed X5 pulp cone and dust cap provides the superior strength and rigidity required to support the excessive amount of force the motor and voice coil can produce. If you need unmatched output, low frequency capability, and long term durability, then the Eminence NSW6021-6 is the driver you have been looking for.

Eminence was founded during the days when American Muscle ruled the road. There was no replacement for displacement, and for those of us in the professional audio industry, that statement still holds true. Professional audio is experiencing staggering growth. In anticipation of that growth, Eminence charged thier engineering team to design the best professional audio loudspeakers in the world. We insisted that they beat the performance and durability of every competitor.

The Eminence family of TOUR GRADE loudspeakers, designed and assembled in the USA, represents maximum power handling, maximum displacement, maximum SPL, and unequaled reliability. Advanced measurement systems and FEA optimization tools were implemented on this next generation of subwoofers.

Product Details

BrandEminence Speaker
ModelNSW6021-6
Part Number290-5662
UPC876358004386
Unit of MeasureEach
Weight62.2

Product Specifications

Nominal Diameter21"
Power Handling (RMS)2500 Watts
Power Handling (MAX)5000 Watts
Impedance6Ω
Frequency Response25 to 600Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter6"

Thiele-Small Parameters

Resonant Frequency (Fs)29Hz
DC Resistance (Re)3.8Ω
Voice Coil Inductance (Le)1.38mH
Mechanical Q (Qms)15.35
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)7.93ft³
Mechanical Compliance of Suspension (Cms)0.06mm/N
BL Product (BL)33.79T·m
Diaphragm Mass Inc. Airload (Mms)508g
Maximum Linear Excursion (Xmax)21mm
Surface Area of Cone (Sd)1642cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter21.65"
Baffle Cutout Diameter19.83"
Depth10.39"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume7ft³
Vented F332.6Hz
