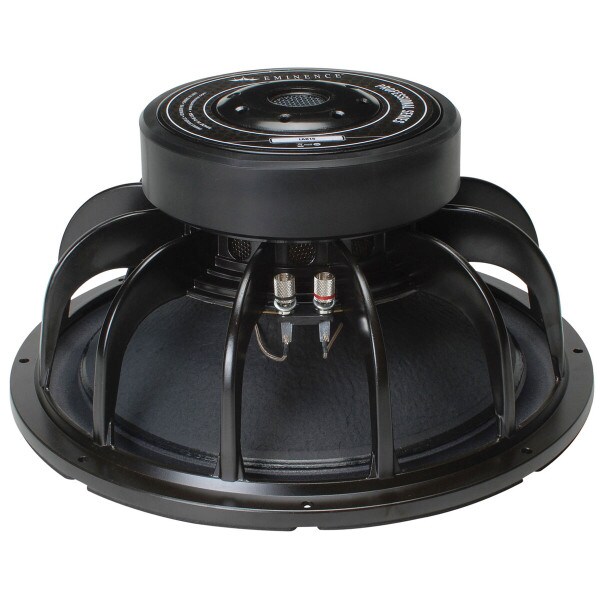

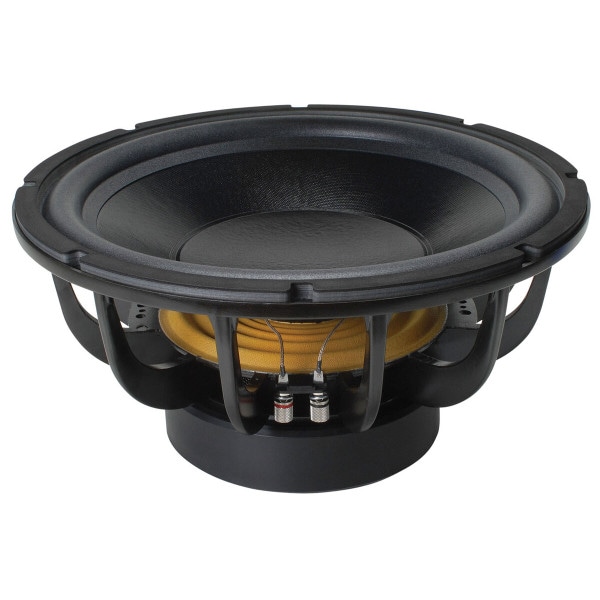

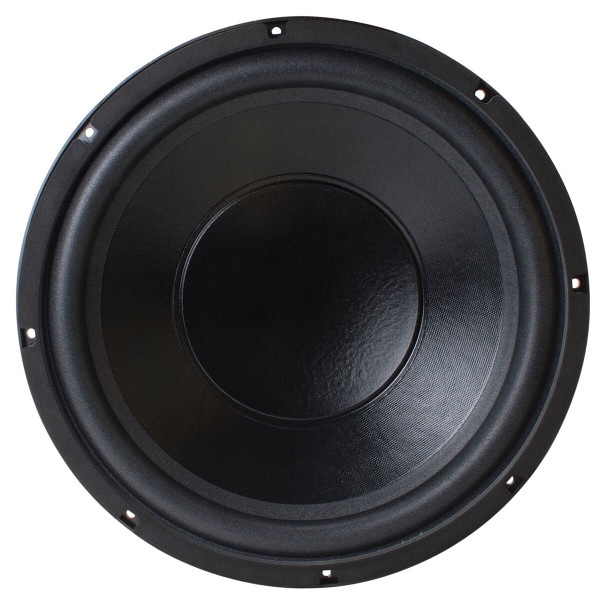

Eminence LAB15 15" Pro Audio Subwoofer Speaker

Eminence Speaker
Part #290-575

Eminence LAB15 15" Pro Audio Subwoofer Speaker

Eminence Speaker
Part #290-575
Model: LAB15
The Lab15 is a high-power, high excursion 15" subwoofer driver for applications requiring very deep bass at pro sound levels.
Key Features
  • Extensive venting keeps the 3" voice coil cool with minimal power compression
  • 11.8 mm of excursion for moving a large volume of air
  • Kevlar reinforced treated paper cone with foam surround for natural response
  • Rigid 12 spoke cast aluminum frame can take the abuse of pro sound
Your Price: $334.99
+ FREE SHIPPING
MSRP: $379.99
Save $45.00 (12%)
Bulk Pricing
Ships next business day. Details

Only 4 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence LAB15 15" Pro Audio Subwoofer Speaker

The Lab15 is a high-power, high excursion 15" subwoofer driver for applications requiring very deep bass at pro sound levels. Features include a 3" voice coil wound on a double layer aluminum former, an epoxy-reinforced apex/neck joint, and a double-laminated spider. This speaker also features a vented motor, both under the spider and through the backplate. Recommended for medium to large sized vented cabinets or horn-loaded designs for PA, sound reinforcement, or dance club applications. The Lab 15 is also suitable for small sealed cabinets for automotive use.

Product Details

BrandEminence Speaker
ModelLAB15
Part Number290-575
UPC876358001729
Unit of MeasureEach
Weight27.2

Product Specifications

Nominal Diameter15"
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance6Ω
Frequency Response20 to 100Hz
Sensitivity88.5dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)28Hz
DC Resistance (Re)4.9Ω
Voice Coil Inductance (Le)3.23mH
Mechanical Q (Qms)5.36
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)3.66ft³
Mechanical Compliance of Suspension (Cms)0.11mm/N
BL Product (BL)26.7T·m
Diaphragm Mass Inc. Airload (Mms)308g
Maximum Linear Excursion (Xmax)11.8mm
Surface Area of Cone (Sd)823.7cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.34"
Baffle Cutout Diameter14"
Depth7.75"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.5ft³
Sealed F364.3Hz
Vented Volume3ft³
Vented F330.7Hz
