Eminence APT-150 Super Tweeter with Horn 100 x 50

Eminence Speaker
Part #290-534

Eminence APT-150 Super Tweeter with Horn 100 x 50

Eminence Speaker
Part #290-534
Model: APT-150
The APT high-power super tweeter possesses extraordinary sensitivity thanks to a phenolic diaphragm, which has unique properties of stiffness and damping. By fluid cooling the voice coil, increased power handling and controlled low frequency behavior are assured.
Similar items that may interest you:
Your Price: $59.99
MSRP: $79.99
Save $20.00 (25%)
Bulk Pricing

Back-Ordered

Estimated back in stock 4/11/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Eminence APT-150 Super Tweeter with Horn 100 x 50

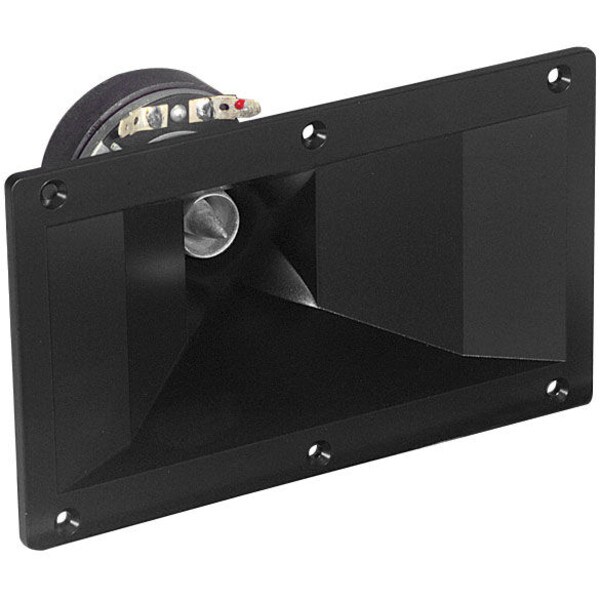

The APT high-power super tweeter possesses extraordinary sensitivity thanks to a phenolic diaphragm, which has unique properties of stiffness and damping. By fluid cooling the voice coil, increased power handling, controlled low frequency behavior and long-term reliability are assured. The APT-150 super tweeter is pre-mounted on an 100° H x 50° V horn.

Specifications: • Power handling: 45 watts RMS (crossover frequency 3.5 kHz, 18 dB/octave), 85 watts RMS (crossover frequency 5 kHz, 18 dB/octave) • Impedance: 8 ohms • Useable range: 3,500-20,000 Hz • Fs: 2,500 Hz • Recommended crossover: 3,500 Hz • Mfg. #APT-150 • Dimensions: 4-1/2" H x 7-1/2" W x 5" D • Cutout dimensions: 3-3/8" H x 6-5/8" W.

Product Details

BrandEminence Speaker
ModelAPT-150
Part Number290-534
UPC876358001347
Unit of MeasureEach
Weight2

Product Specifications

Diaphragm MaterialPhenolic
Power Handling (RMS)45 Watts
