Dayton Audio Tactile Transducer Mini Bass Shaker 16 Ohm 4 Pack TT25-16 PUCK

Dayton Audio
Part #300-389

Dayton Audio Tactile Transducer Mini Bass Shaker 16 Ohm 4 Pack TT25-16 PUCK

Dayton Audio
Part #300-389
Model: TT25-16-4

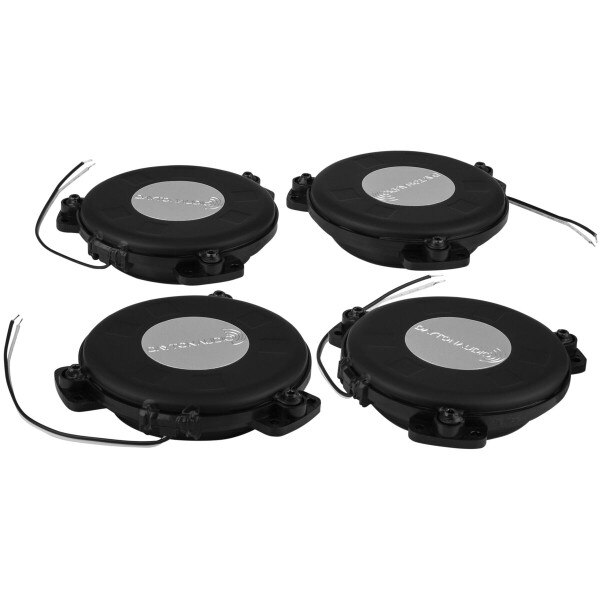

Get the Four-Puck-Pack and save! Enhance the sensation of your favorite games, music and movies with the PUCK™ by Dayton Audio. Now includes convenient surface mounting kits for quick and easy installation onto any flat surface.
Key Features
  • Add realistic tactile feedback to video games, movies, and music
  • Includes surface mounting rings for quick installation onto flat surfaces
  • Feel the bass without high sound pressure levels
  • High quality construction to provide reliable performance
  • Compact design to put the impact right were you need it
Your Price: $49.98
MSRP: $79.99
Save $30.01 (38%)
Bulk Pricing
Quantity:Qty: 1-3 $49.98/ea
Quantity:Qty: 4+$44.98/ea
Order in the next 3 hr 44 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio Tactile Transducer Mini Bass Shaker 16 Ohm 4 Pack TT25-16 PUCK

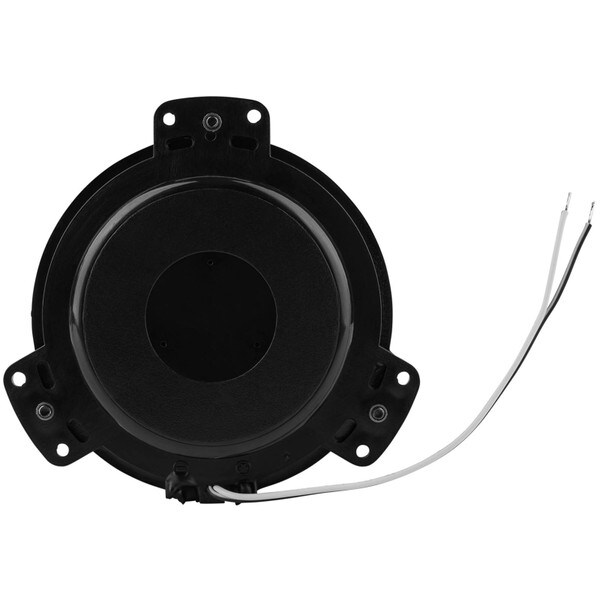

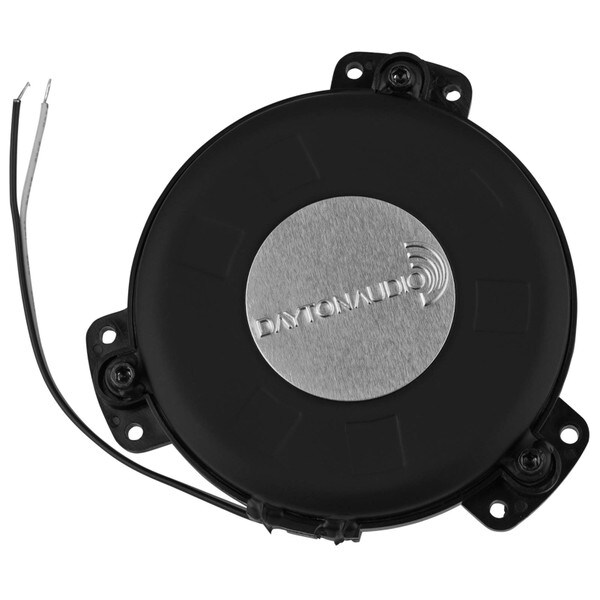

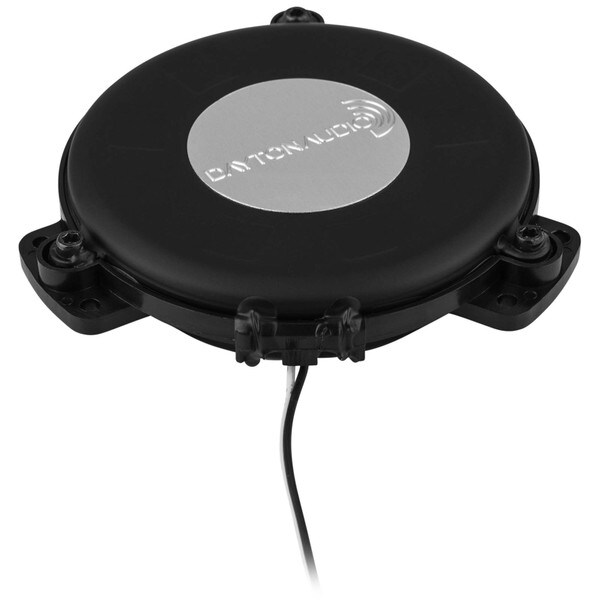

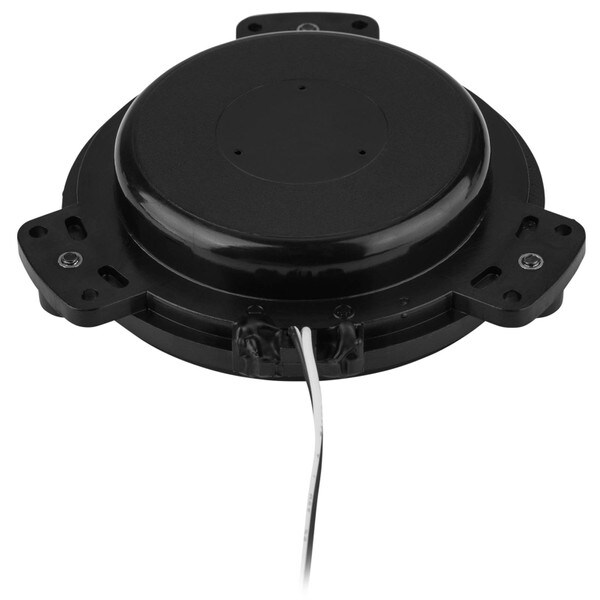

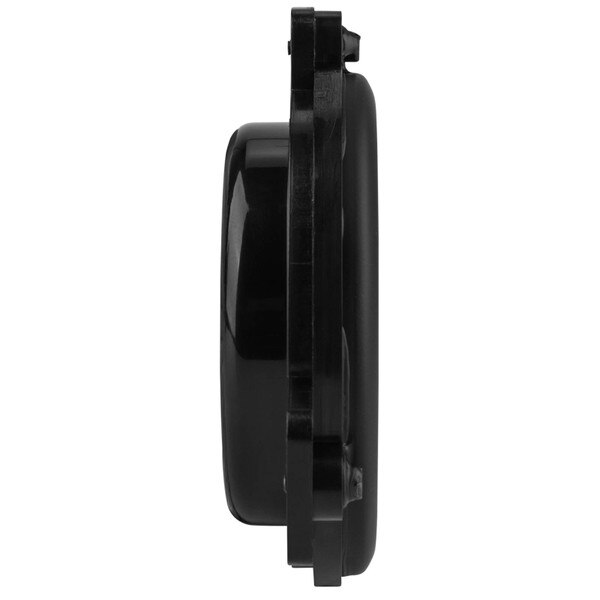

The PUCK™ by Dayton Audio is an inexpensive, small tactile transducer otherwise known as a mini bass shaker that is intended to be used in Home Theater, Gaming, and Auto Sound applications. This mini bass shaker has the unique ability to transfer low frequency sound waves directly to the listener by mounting the PUCK™ to surface areas that a listener's body will come into contact with. Because the listener "feels" the low frequency, the volume of the overall sound can be kept to a minimum without sacrificing the audio quality. The PUCK™ measures a mere 3-1/2" diameter and 1" depth, nearly identical in size to an ice hockey puck. The small depth and diameter of the PUCK™ mini bass shaker make it uniquely suited for tight spaces and unobtrusive applications. 4 layer Voice Coil with 1" aluminum former. Requires 6 #6 wood or sheet metal screws for surface mounting. Four PUCK™ transducers can be wired for Stereo 8 Ohm Right/Left 2 channel wiring or as a 4 Ohm 1 channel system.

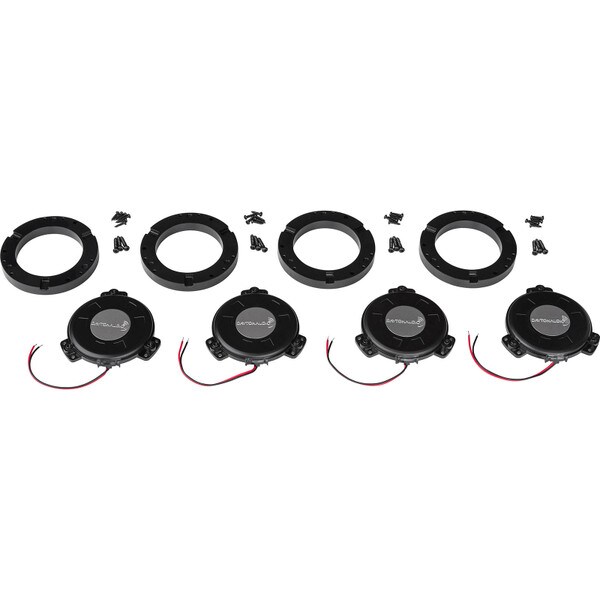

Includes 4 Surface Mount Ring Kits (300-3882) to allow you to mount the PUCK transducers to any flat surface without the need for a mounting hole.

Specifications: • Power handling: 15 watts RMS/30 watts max • Impedance: 16 ohms • Voice coil: 1" diameter, 4-layer on aluminum former • Usable frequency response: 20-80 Hz • Fs: 40 Hz • Force peak: 30 lbs. per ft total when used in 4 PUCK configuration • Dimensions: 3.5" dia. x 1" H • Cutout Dimension: 70 mm with 25 mm slot for wire pass through. Consult owners manual for cut-out template and wiring information.

To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audio's Understanding and Using Dayton Audio Exciters Buyer's Guide.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelTT25-16-4
Part Number300-389
UPC844632091452
Weight3

Product Specifications

ApplicationLow Frequency Bass Shaker
Power Handling (RMS)15 Watts
Impedance16Ω
