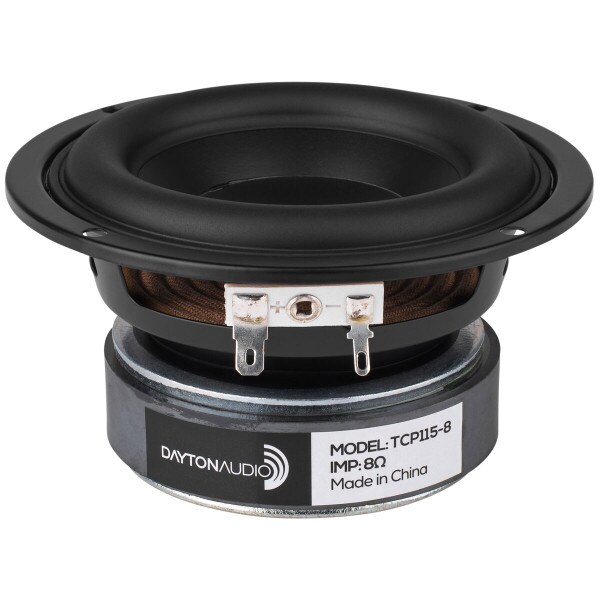

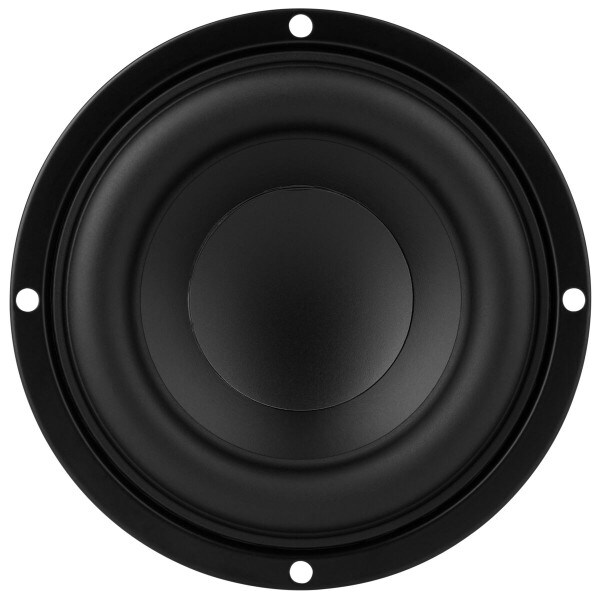

Dayton Audio TCP115-8 4" Treated Paper Cone Midbass Woofer 8 Ohm

Dayton Audio
Part #295-416

Dayton Audio TCP115-8 4" Treated Paper Cone Midbass Woofer 8 Ohm

Dayton Audio
Part #295-416
Model: TCP115-8
With high excursion capabilities and low Fs, Dayton Audio's TCP115-8 can produce a surprising amount of bass for a 4" woofer. In addition to its low frequency performance, this driver also performs very well through the midrange, making this driver ideal for use in smaller 2-way designs.
Key Features
  • Powerful motor for efficiency and compact enclosure
  • 1" diameter 4-layer voice coil improves power handling and low frequency response
  • Aluminum former keeps voice coil cool for high power handling
  • Extended pole piece creates symmetrical magnetic field for lower distortion
  • Cosmetic low-profile mounting flange looks good without flush mounting
Similar items that may interest you:
See all items in Woofers
Your Price: $11.99
MSRP: $18.99
Save $7.00 (37%)
Bulk Pricing
Order in the next 6 hr 19 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio TCP115-8 4" Treated Paper Cone Midbass Woofer 8 Ohm

The TCP115-8 combines a large motor, 1" 4-layer voice coil, vented pole, and a sizable rubber surround to make use of its 4 mm of Xmax. This combination of features makes it a very versatile driver which can be used as a bass driver in a small 2-way system, center channel, or even portable Bluetooth speaker designs.

Learn More
Request Quote

Product Details

BrandDayton Audio
ModelTCP115-8
Part Number295-416
UPC848791004971
Unit of MeasureEach
Weight2

Product Specifications

Nominal Diameter4"
Bolt Circle Diameter4.25
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance8Ω
Frequency Response55 to 6,000Hz
Sensitivity81.9dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)59.2Hz
DC Resistance (Re)7.8Ω
Voice Coil Inductance (Le)1.9mH
Mechanical Q (Qms)2.3
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)0.09ft³
Mechanical Compliance of Suspension (Cms)0.71mm/N
BL Product (BL)7.4T·m
Diaphragm Mass Inc. Airload (Mms)10.16g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)50cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.57"
Baffle Cutout Diameter3.77"
Depth2.32"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.06ft³
Sealed F3127Hz
Vented Volume0.13ft³
Vented F346Hz
