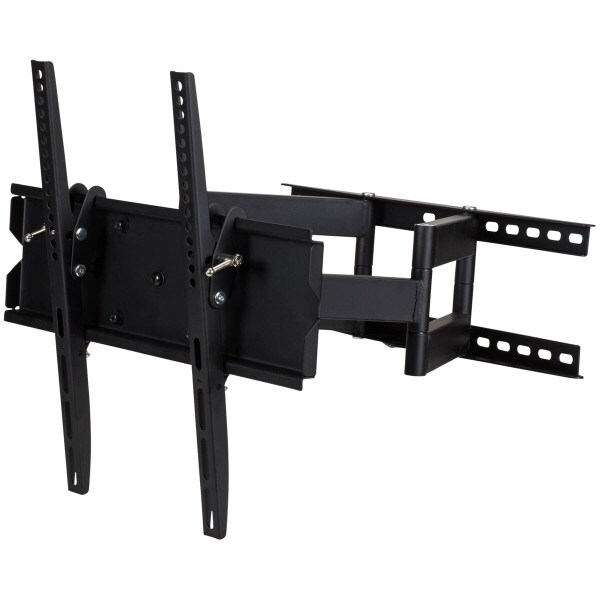

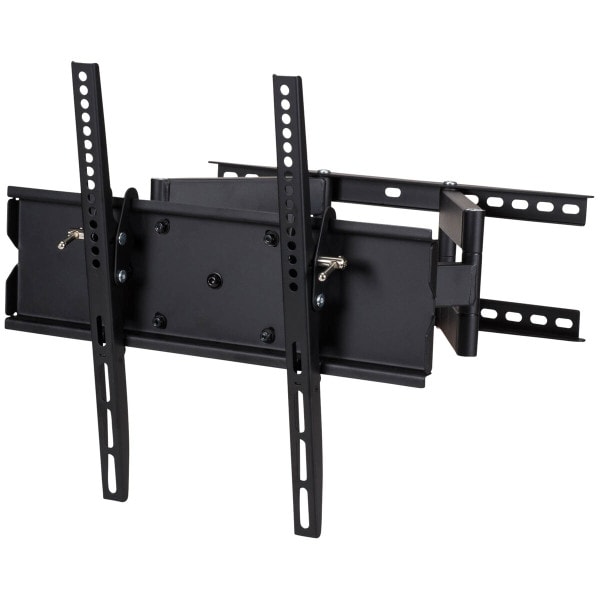

Shadow Mounts AM5516 Articulating TV Wall Mount 32"-80"Installation of the heavy-duty Shadow Mounts AM5516 means every seat in the house can be a great one. With tilt adjustments from 0 ~ -12° and 90° rotation, the TV is adjustable easily for optimum viewing. Manufactured from solid steel, the AM5516 provides you with peace of mind from knowing your HDTV investment is held securely in place for years to come.

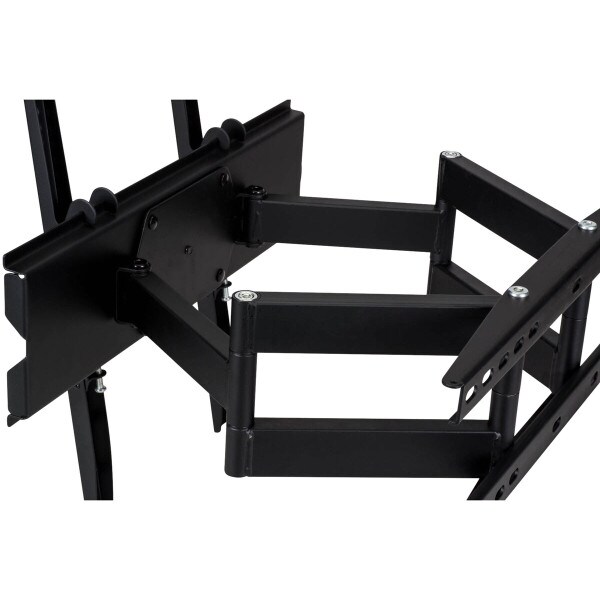

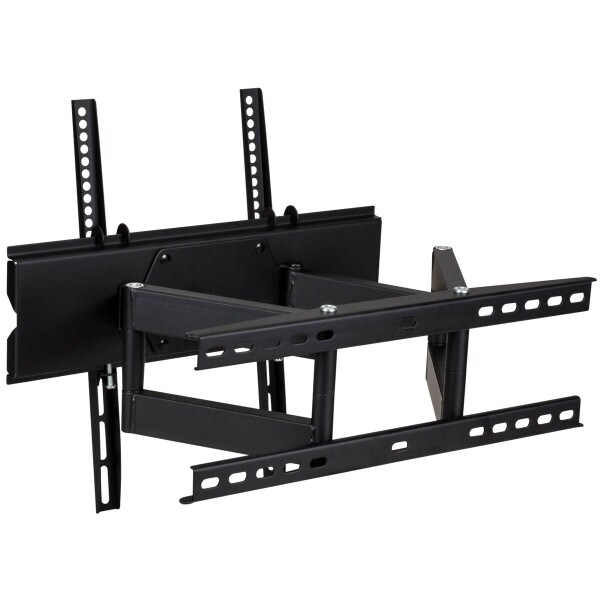

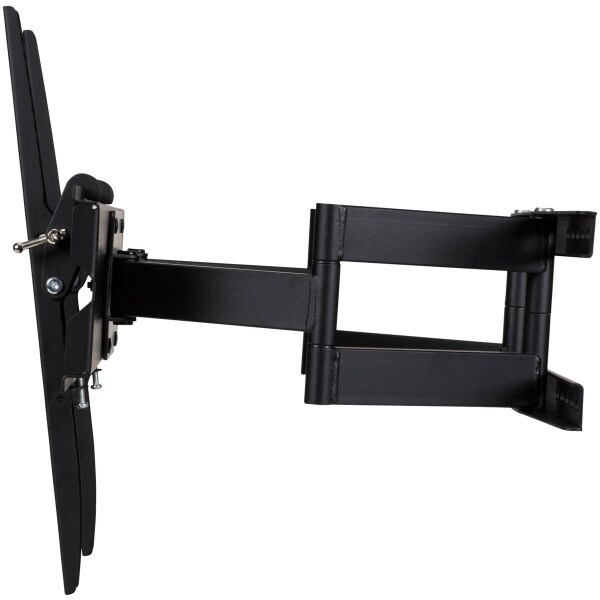

The AM5516's most important feature is the low-profile design that holds the monitor less than 3" from the wall when the TV is in the flat position, or up to 16" from the wall when completely extended. Dual articulating arms won't permit the TV to drift when pulled away from the wall, and provide fluid motion while adjusting the television's viewing angle.
The Shadow Mounts AM5516 is compatible with 32" ~ 80" televisions with up to VESA 400 mm x 400 mm bolt patterns. Note: Consult your TV owner's manual for VESA sizing information.
Specifications: • Mounting plate width: 18" (458 mm) • Mounting plate height: 5.827" (148 mm) • Mounting arm width: 1.375" (35 mm) • Mounting arm height: 16.73" (425 mm) • Tilt adjustment: 0 ~ -12° • Minimum mount to wall distance: 2.8" (70 mm) • Mounting width supported: 50-410 mm • Mounting height supported: 50-400 mm • Supported VESA sizes: up to 400 x 400 • Maximum weight capacity: 150 lbs. (70 kg).
Note: Applicable television size ranges are based on VESA standards and will fit the listed screen sizes. To ensure that this specific TV mount is not exposed behind your TV, identify the length and width of your specific TV and be sure that the mounting bracket, plate, and or articulating arm does not extend beyond your television’s measurements.
