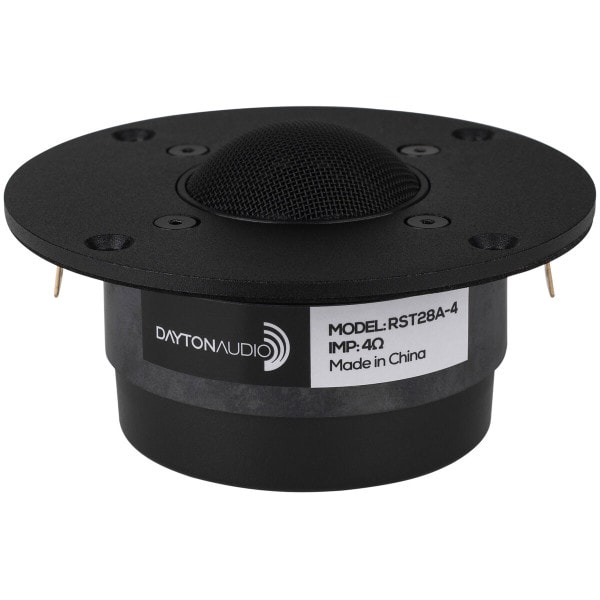

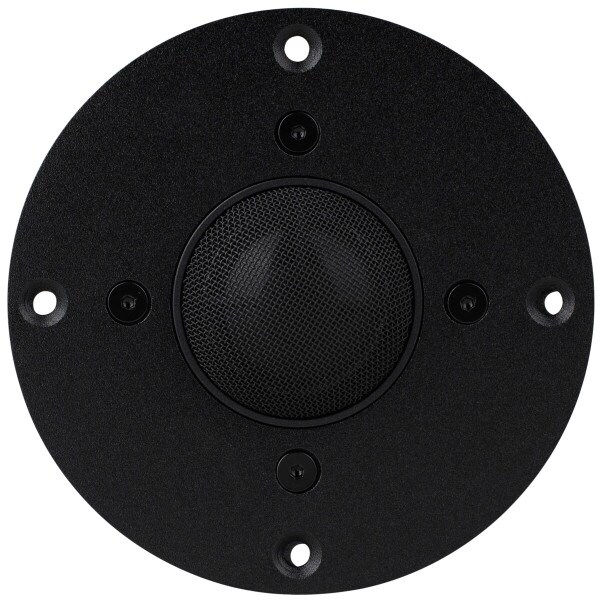

Dayton Audio RST28A-4 1-1/8" Reference Series Aluminum Dome Tweeter 4 Ohm

Dayton Audio
Part #275-131

Dayton Audio RST28A-4 1-1/8" Reference Series Aluminum Dome Tweeter 4 Ohm

Dayton Audio
Part #275-131
Model: RST28A-4
The Dayton Audio RST28A-4 1-1/8" aluminum dome Reference Series tweeter has remarkable clarity, low free air resonance, exceptional efficiency, and smooth frequency response, a combination seldom found in the industry at any price. This upgrade over the original RS28A-4 provides incredible performance at an amazing value.
Key Features
  • 1-1/8" aluminum diaphragm offers remarkable clarity without the typical harshness of metal domes
  • Exceptional efficiency at 92.5 ±3 dB from 1.5 kHz to 19 kHz and a smooth frequency response
  • Well-designed phase bridge to balance the response in the upper octave
  • Tuned rear chamber and high-quality Ferrofluid for excellent low-end response
  • Low-distortion motor system achieves a rare level of transparency
  • Matches the performance of even the most expensive audiophile high-frequency transducers
Your Price: $41.98
MSRP: $54.99
Save $13.01 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $41.98/ea
Quantity:Qty: 4+$37.78/ea
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio RST28A-4 1-1/8" Reference Series Aluminum Dome Tweeter 4 Ohm

The Dayton Audio RST28A-4 aluminum dome Reference Series tweeter offers exceptional efficiency from 1,500 Hz to 20,000 Hz with smooth and well controlled frequency response. This tweeter's unique black anodized 1-1/8" aluminum diaphragm and state-of-the-art motor system not only match the look and features of Dayton Audio's Reference Series woofers and midranges, but also the clean, detailed, and uncolored sound you have come to expect. A specialized damped rear chamber, well-designed phase bridge, rigid mesh grill, and several distortion-reducing paths in the motor are just a few of the features that allow these tweeters to outperform some the most expensive audiophile high-frequency transducers.

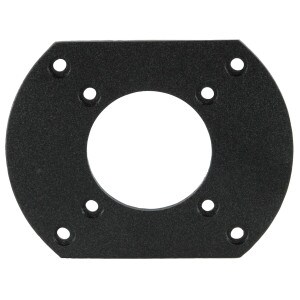

For applications like line arrays or compact mini-monitors that demand a smaller faceplate, an optional truncated faceplate is available.

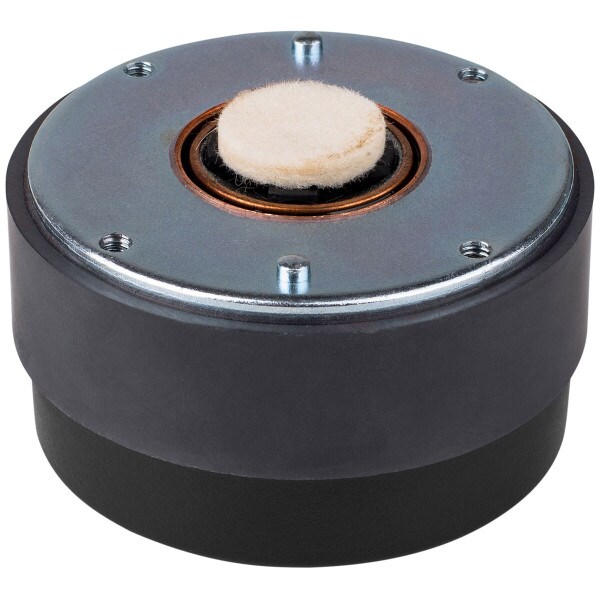

For the replacement diaphragm, see part number 275-133

Product Details

BrandDayton Audio
ModelRST28A-4
Part Number275-131
UPC848791004896
Unit of MeasureEach
Weight1.8

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter2.875
Tweeter TypeMetal Dome
Power Handling (RMS)80 Watts
Impedance
Frequency Response1,500 to 20,000Hz
Sensitivity92.5dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)775Hz
DC Resistance (Re)
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)2.15
Electromagnetic Q (Qes)1.65
Total Q (Qts)0.93

Mounting Information

Overall Outside Diameter4.125"
Depth1.75"
