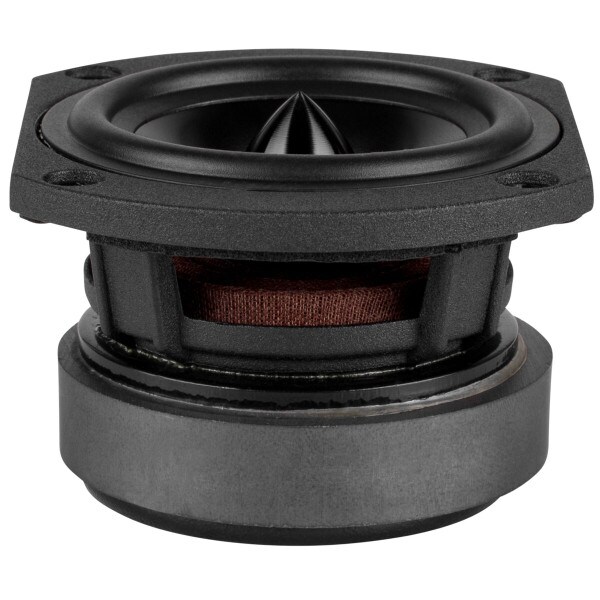

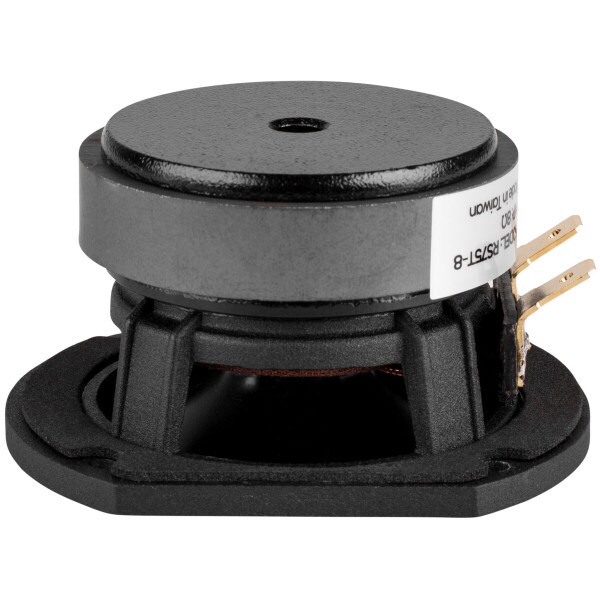

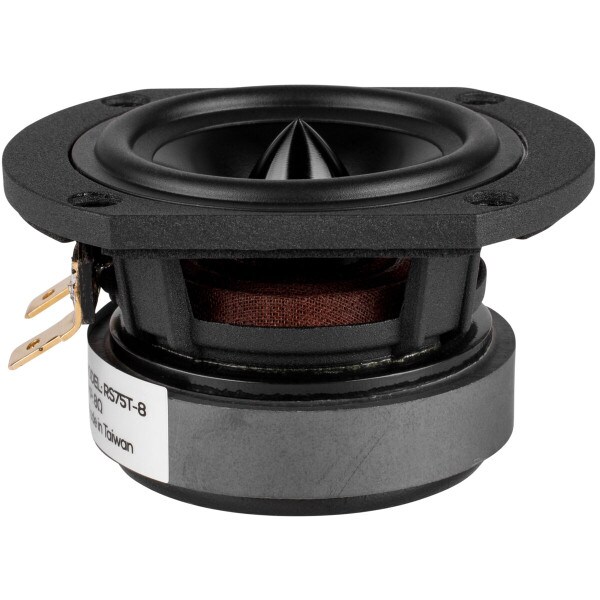

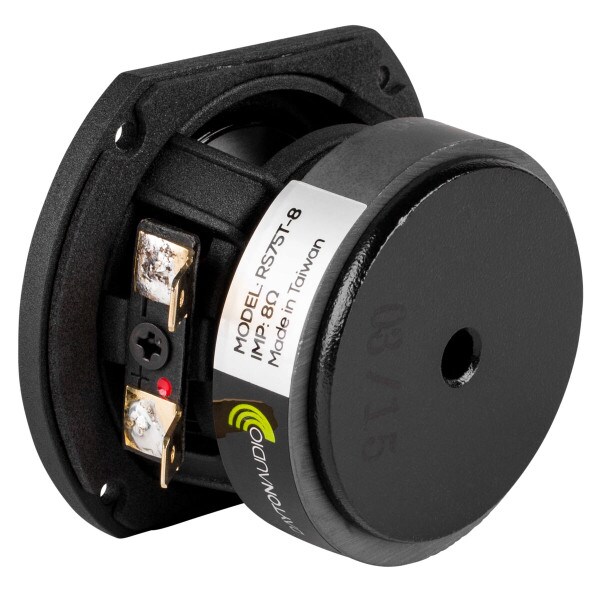

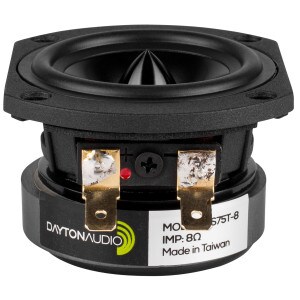

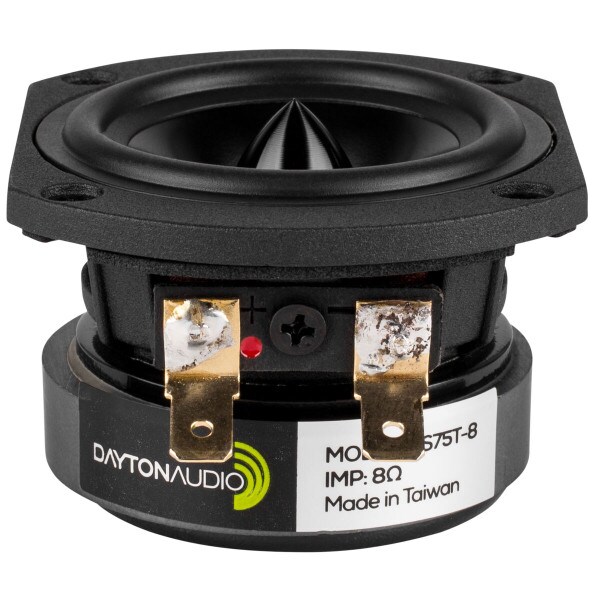

Dayton Audio RS75T-8 3" Reference Full-Range Driver Truncated Frame

Dayton Audio
Part #295-336

Dayton Audio RS75T-8 3" Reference Full-Range Driver Truncated Frame

Dayton Audio
Part #295-336
Model: RS75T-8
Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75T-8 can outperform "boutique" drivers that cost several times the price.
Key Features

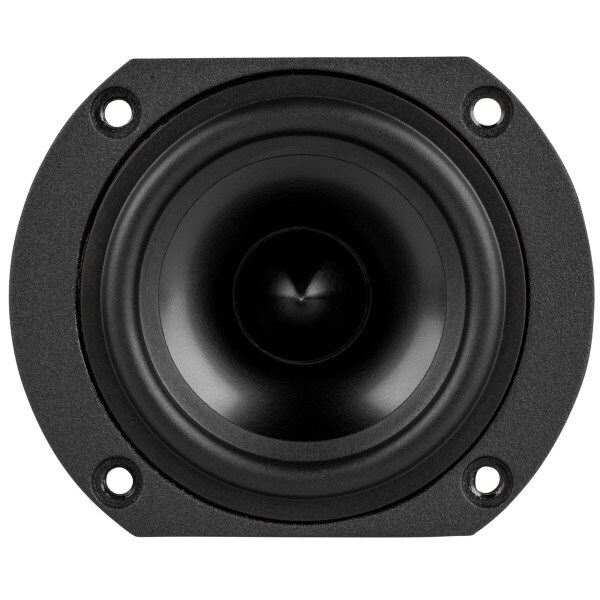

  • Truncated cast frame—great for line arrays and MTM speaker designs
  • Full-range performance
  • Low distortion and high resolution
  • Aluminum frame, aluminum cone, rubber surround
  • Distortion-reducing copper ring, copper cap, and aluminum phase plug
  • Subtle yet high-tech look makes a bold cosmetic statement
  • Designed and engineered in USA
Your Price: $22.49
MSRP: $41.99
Save $19.50 (46%)
Bulk Pricing
Ships next business day. Details

Only 17 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS75T-8 3" Reference Full-Range Driver Truncated Frame

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75T-8 can outperform "boutique" drivers that cost several times the price. The driver's truncated frame makes it ideal for line arrays and ultra-compact MTM designs requiring minimal driver-to-driver spacing. Its low-distortion characteristics and smooth response provide exceptional clarity, detail, and dynamics. Features a black anodized cone, heavy-duty 4-hole cast frame, low-loss rubber surround, and gold terminals.



Product Details

BrandDayton Audio
ModelRS75T-8
Part Number295-336
UPC844632086274
Unit of MeasureEach
Weight0.6

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter2.52
Power Handling (RMS)15 Watts
Power Handling (MAX)30 Watts
Impedance8Ω
Frequency Response170 to 20,000Hz
Sensitivity84.3dB 2.83V/1m
Voice Coil Diameter0.63"

Thiele-Small Parameters

Resonant Frequency (Fs)189Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)0.32mH
Mechanical Q (Qms)5.84
Electromagnetic Q (Qes)1.13
Total Q (Qts)0.95
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.69mm/N
BL Product (BL)2.58T·m
Diaphragm Mass Inc. Airload (Mms)1g
Maximum Linear Excursion (Xmax)1.3mm
Surface Area of Cone (Sd)12cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter2.83"
Baffle Cutout Diameter2.13"
Depth1.52"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.02ft³
Sealed F3200Hz
Vented Volume0.07ft³
Vented F3108Hz
