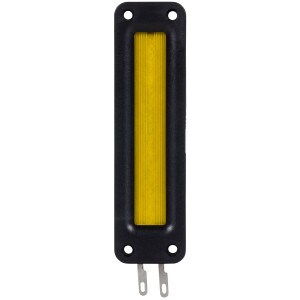

Dayton Audio PTMini-6 Planar Tweeter 6 Ohm

Dayton Audio
Part #275-083

Dayton Audio PTMini-6 Planar Tweeter 6 Ohm

Dayton Audio
Part #275-083
Model: PTMini-6
The Dayton Audio PTMini-6 is a miniature planar tweeter that is big on performance and sound quality! With 6 ohm impedance and incredibly small size this is an excellent choice for car audio or home use.
Key Features
  • Compact planar ribbon tweeter driver
  • High output and exceptional treble definition
  • Surface or flush mount installation
  • Potent neodymium magnetic design
  • Supports 4,000 Hz crossover, 12 dB/octave
Your Price: $9.98
MSRP: $18.99
Save $9.01 (47%)
Bulk Pricing
Quantity:Qty: 1-3 $9.98/ea
Quantity:Qty: 4+$8.98/ea
Order in the next 1 hr 26 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio PTMini-6 Planar Tweeter 6 Ohm

The clarity, definition, and transparency of a planar tweeter is unmatched by almost any other type of tweeter. Now Dayton Audio lets you build planar technology into more compact projects with the PTMini-6 planar tweeter! The surface-mount housing design can also be flush-mounted for a world of possible uses, such as a car A-pillar tweeter, a supertweeter for a full-range driver, a rear-mounted ambience tweeter, a conventional forward-facing tweeter configuration, or even a line array!

The membrane of a planar tweeter is an almost weightless ribbon of heat-resistant Kapton material and an etched aluminum conductor, enabling the performance of aluminum ribbon tweeters without the losses inherent in the transformer of a conventional ribbon tweeter. The result is a tweeter that is incredibly fast, dynamic, and smooth sounding with imperceptible distortion and excellent power handling. A crossover cut-off frequency of 4,000 Hz or higher is recommended with a 12 dB/octave filter slope.

Product Details

BrandDayton Audio
ModelPTMini-6
Part Number275-083
UPC848791001680
Unit of MeasureEach
Weight0.1

Product Specifications

Cutout DiameterElement: 2.375" x 0.375
Tweeter TypePlanar
Power Handling (RMS)15 Watts
Impedance6Ω
Frequency Response2,900 to 25,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)4461Hz
DC Resistance (Re)5.9Ω
Mechanical Q (Qms)1.78
Total Q (Qts)1.74

Mounting Information

Overall Outside Diameter3.27" x 0.91"
Depth0.32"
