Dayton Audio NHP25F-4 1" Soft Dome High Power Neodymium Tweeter 4 Ohm

Dayton Audio
Part #275-108

Dayton Audio NHP25F-4 1" Soft Dome High Power Neodymium Tweeter 4 Ohm

Dayton Audio
Part #275-108
Model: NHP25F-4

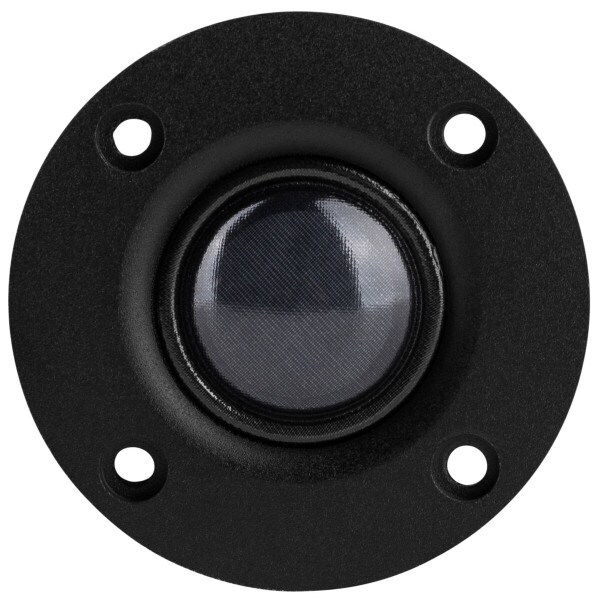

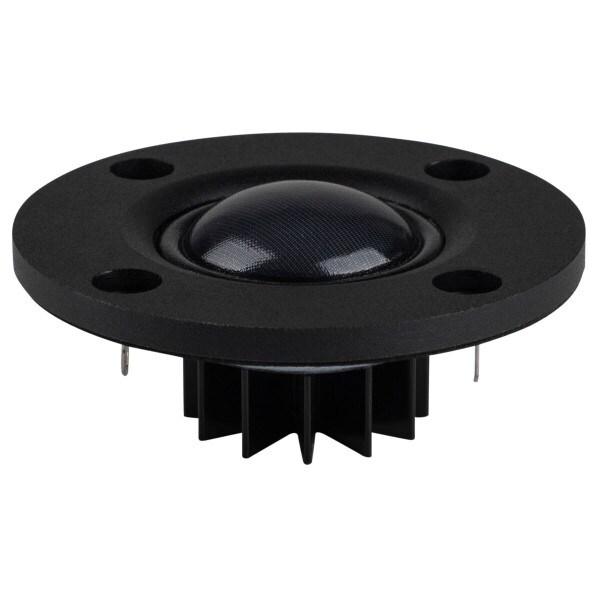

The Dayton Audio compact NHP25F-4 1" soft dome tweeter uses a high temperature neodymium motor, Ferrofluid cooling, and rear mounted heat sink for improved heat dissipation making this tweeter suitable for higher output systems and even professional line arrays. In addition, the flat response and high efficiency makes the NHP25F-4 an amazing value.
Key Features
  • Attached heat sink and ferrofluid cooling for increased power handling
  • Over 95 dB efficient is perfect for use in higher output designs
  • Compact cast aluminum faceplate minimizes center to center distance
  • High temperature neodymium motor allows high output for extended periods
  • Extremely smooth response makes for easy transition to midrange diver
Your Price: $23.49
MSRP: $30.99
Save $7.50 (24%)
Bulk Pricing
Quantity:Qty: 1-3 $23.49/ea
Quantity:Qty: 4+$21.14/ea
Ships next business day. Details

Only 2 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio NHP25F-4 1" Soft Dome High Power Neodymium Tweeter 4 Ohm

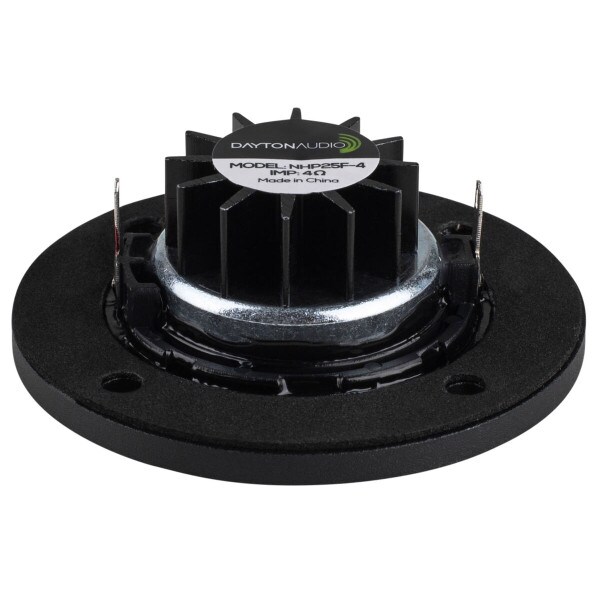

Dayton Audio's versatile NHP25F-4 is a 1" soft dome tweeter that offers the performance of more expensive tweeters in a compact and stylish package. The small yet powerful high temperature neodymium motor with attached aluminum heat sink and Ferrofluid-filled magnetic gap reduces power compression and improves long-term power handling. In addition, the carefully designed silk diaphragm provides natural treble response up to 20 kHz, excellent off-axis dispersion, and superb sonic detail.

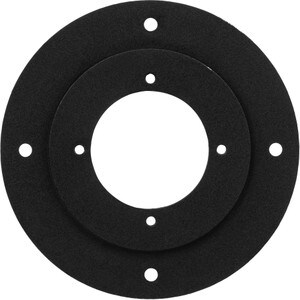

The NHP25F-4 includes a 2.5" cast aluminum faceplate, however Dayton Audio does offer an optional 4.09" (104 mm) and 4.33" (110 mm) faceplate allowing this tweeter to be used as a drop in replace for many common sized tweeters.

Product Details

BrandDayton Audio
ModelNHP25F-4
Part Number275-108
UPC848791004759
Unit of MeasureEach
Weight0.25

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.58
Tweeter TypeSoft Dome
Power Handling (RMS)40 Watts
Impedance4Ω
Frequency Response3,000 to 20,000Hz
Sensitivity95dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1689Hz
DC Resistance (Re)3.18Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)3.75
Electromagnetic Q (Qes)2.04
Total Q (Qts)1.32

Mounting Information

Overall Outside Diameter2.51"
Depth0.71"
