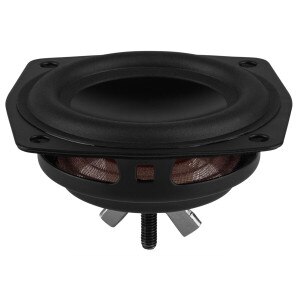

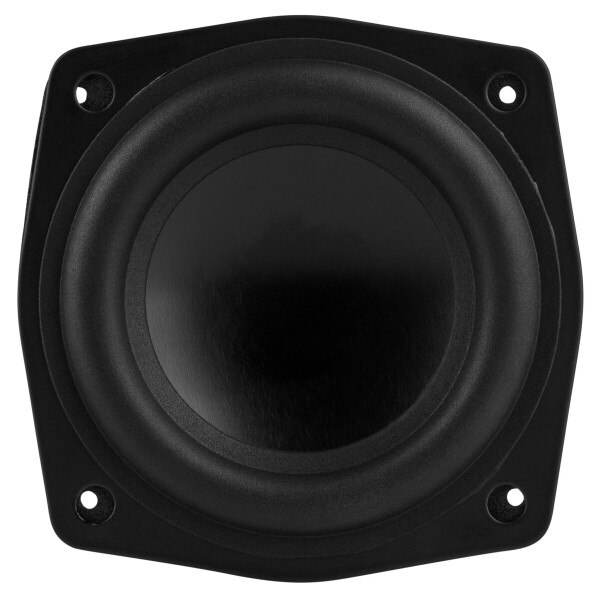

Dayton Audio ND65-PR 2-1/2" Aluminum Cone Passive Radiator

Dayton Audio
Part #290-205

Dayton Audio ND65-PR 2-1/2" Aluminum Cone Passive Radiator

Dayton Audio
Part #290-205
Model: ND65-PR
The Dayton Audio ND65-PR 2-1/2" passive radiator makes it easy to tune small enclosures lower without increasing overall enclosure size. With a one-piece aluminum cone, rubber surround, high excursion capability, and easily adjustable mass, this passive radiator is perfect for building extremely compact speaker systems capable of incredible low frequency output.
Key Features
  • Rigid black anodized aluminum alloy cone
  • High excursion capability: 10 mm peak to peak
  • Same "family look" as ND Series woofers
  • Mass adjustable for a vast range of tuning frequencies
Your Price: $6.99
MSRP: $11.99
Save $5.00 (42%)
Bulk Pricing
Order in the next 2 hr 22 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio ND65-PR 2-1/2" Aluminum Cone Passive Radiator

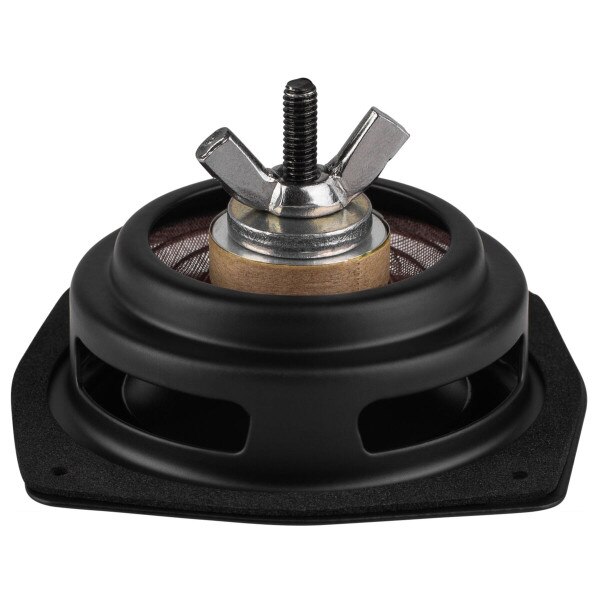

Tune small enclosures with Dayton Audio's ND65-PR 2-1/2" passive radiator in speaker designs where a conventional port is not a viable option. This compact passive radiator includes all of the features you expect with larger radiators including high excursion capability, aluminum cone, rubber surround, and adjustable mass. Visually identical to Dayton Audio's popular ND series drivers, the ND65-PR can be used with any small speaker. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a multi-driver array, sound bar, or portable Bluetooth speaker, the Dayton Audio ND65-PR introduces a new range of possibilities.

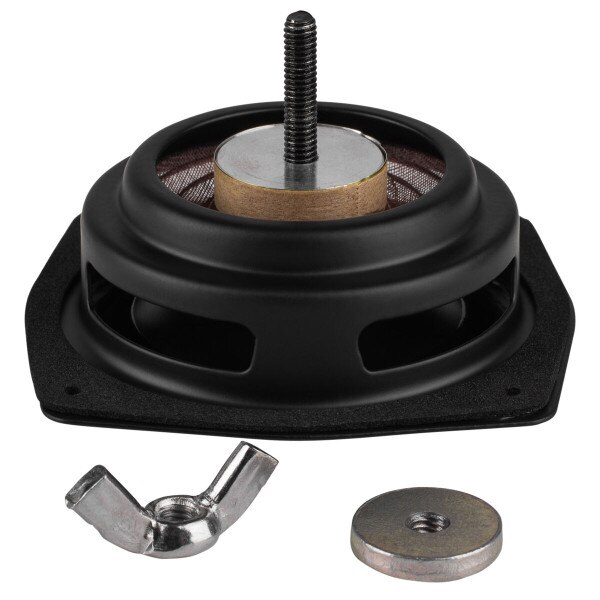

The ND65-PR 2-1/2" passive radiator includes:
(1) Passive radiator
(1) 4.3 gram disk weight
(1) Wing nut

Specifications: • Fs: 73.0 Hz • Vas: 0.02 cu. ft. (0.5 liters) • Qms: 2.69 • Cms: 1.45 mm/N • Mms: 3.2g • Rms: 0.56 kg/s • Sd: 15.6 sq. cm. • Xmech: 5 mm • Dimensions: Overall diameter: 2.52", Cutout diameter: 2.05", Depth: 1.89".

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Product Details

BrandDayton Audio
ModelND65-PR
Part Number290-205
UPC848791004827
Unit of MeasureEach
Weight0.1

Product Specifications

Nominal Diameter2-1/2"

Thiele-Small Parameters

Resonant Frequency (Fs)73Hz
Mechanical Q (Qms)2.69
Compliance Equivalent Volume (Vas)0.02ft³
Mechanical Compliance of Suspension (Cms)1.45mm/N
Diaphragm Mass Inc. Airload (Mms)3.2g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)15.6cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter2.52"
Baffle Cutout Diameter2.05"
Depth1.89"
# Mounting Holes4
