Dayton Audio ND25FN-4 1" Silk Dome Neodymium Tweeter Element 4 Ohm

Dayton Audio
Part #275-053

Dayton Audio ND25FN-4 1" Silk Dome Neodymium Tweeter Element 4 Ohm

Dayton Audio
Part #275-053
Model: ND25FN-4

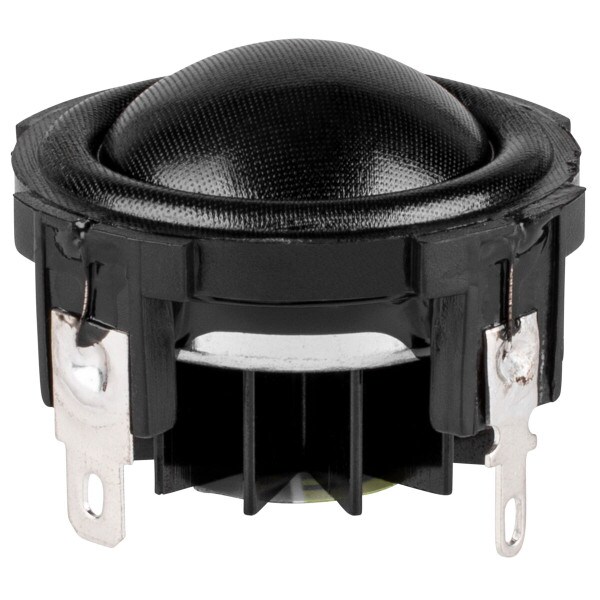

Dayton Audio's ND25FN-4 compact soft dome tweeter element features high output and smooth, low-distortion sound. The high-strength neodymium motor features an aluminum heat sink for cool operation and reduced power compression.
Key Features

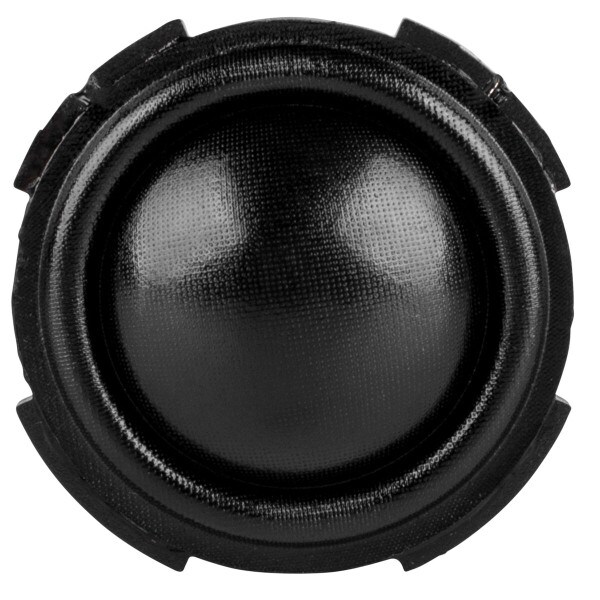

  • 1" treated silk dome diaphragm
  • Faceplate-free design enables versatile custom mounting
  • High-strength neodymium motor with heatsink and ferrofluid cooling
  • Extremely smooth and extended treble response beyond 22 kHz
  • Perfect for use with a waveguide or custom mounting plate
  • Great replacement for car door tweeters
Your Price: $9.98
MSRP: $20.99
Save $11.01 (52%)
Bulk Pricing
Quantity:Qty: 1-3 $9.98/ea
Quantity:Qty: 4+$8.98/ea
Order in the next 3 hr 28 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio ND25FN-4 1" Silk Dome Neodymium Tweeter Element 4 Ohm

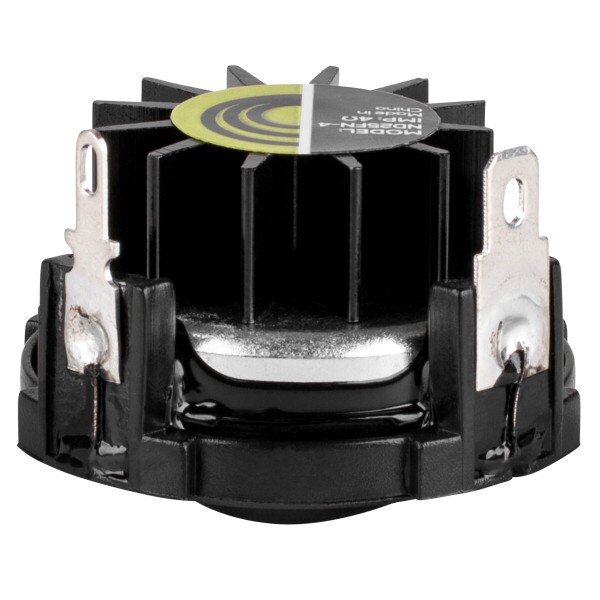

Dayton Audio’s ND25FN-4 is a versatile 1" tweeter element for use in highly customized applications requiring smooth, clean treble output. The treated silk dome diaphragm delivers excellent detail and smoothness, while the high-strength neodymium magnet enables high output from an extremely compact size. The rear-mounted heatsink and ferrofluid-filled magnetic gap provide improved heat dissipation from the compact motor structure, for reduced power compression at high levels. A copper pole cap further reduces distortion and inductance effects.

This element is identical to the round-faceplate ND25FA-4 model, but with no faceplate installed. It’s perfect for installation into a waveguide or a custom mounting plate, or in limited clearance applications such as automotive A-pillars. Simply bond the unit in place from behind, and prepare to be surprised at the clean, detailed output!

Product Details

BrandDayton Audio
ModelND25FN-4
Part Number275-053
UPC848791000867
Unit of MeasureEach
Weight0.13

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.34
Tweeter TypeSoft Dome
Power Handling (RMS)20 Watts
Impedance4Ω
Frequency Response2,500 to 20,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1350Hz
DC Resistance (Re)3.2Ω
Voice Coil Inductance (Le)0.04mH
Mechanical Q (Qms)3.87
Electromagnetic Q (Qes)2.61
Total Q (Qts)1.56

Mounting Information

Overall Outside Diameter1.61"
Depth0.83"
