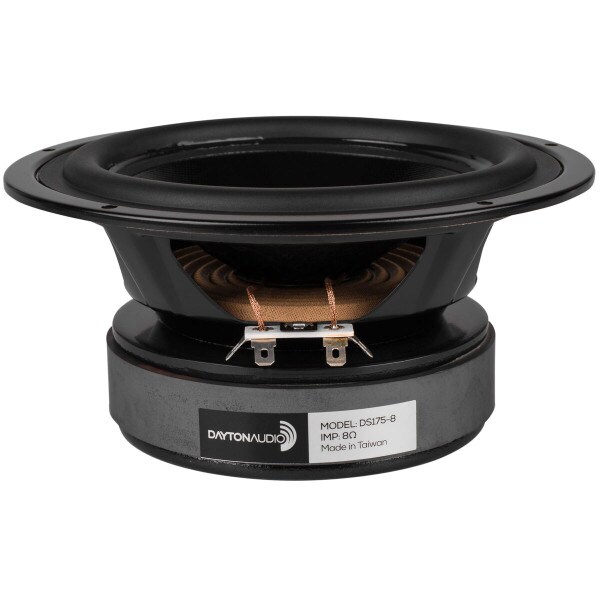

Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker

Dayton Audio
Part #295-428

Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker

Dayton Audio
Part #295-428
Model: DS175-8
Although it's true that the Dayton Audio Designer Series DS175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 40 Hz* without exceeding Xmax is very impressive!
Key Features
  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!

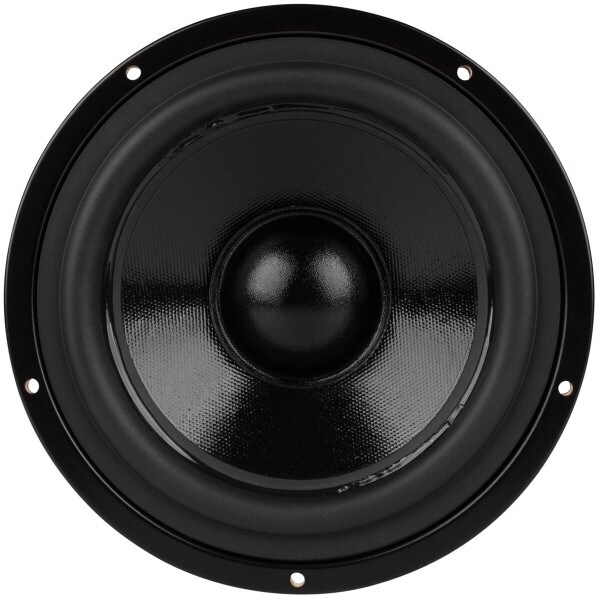

  • Coated paper cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers

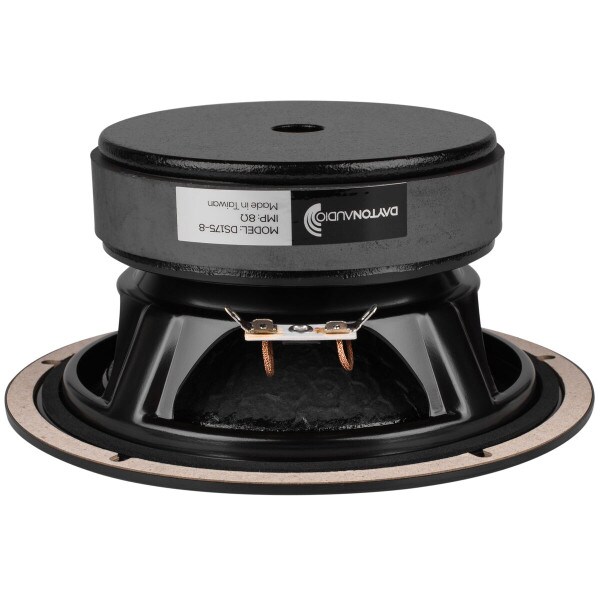

  • Vented pole piece for minimized power compression and maximized reliability
  • Generous Xmax capability encourages use of moderate bass boost to tailor the response
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Your Price: $32.89
MSRP: $57.99
Save $25.10 (43%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Dayton Audio DS175-8 6-1/2" Designer Series Woofer Speaker

The Designer Series by Dayton Audio was developed specifically with the speaker designer in mind. It is an affordable, attractive line of drivers that puts performance first. Careful engineering ensures that each speaker in the series is capable of handling full rated power at the lowest possible frequencies—without exceeding Xmax.

These speakers combine useful performance parameters with elegant style. Carefully optimized to provide superb audio reproduction when incorporated into a wide variety of enclosures and alignments, the Designer Series transducers put a beautiful face on audiophile excellence.

Product Details

BrandDayton Audio
ModelDS175-8
Part Number295-428
UPC844632095405
Unit of MeasureEach
Weight4.95

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.54
Power Handling (RMS)70 Watts
Power Handling (MAX)140 Watts
Impedance
Frequency Response40 to 4,500Hz
Sensitivity87.7dB 2.83V/1m
Voice Coil Diameter1.39"

Thiele-Small Parameters

Resonant Frequency (Fs)37Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)1.06mH
Mechanical Q (Qms)1.63
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)0.6ft³
Mechanical Compliance of Suspension (Cms)0.71mm/N
BL Product (BL)10.4T·m
Diaphragm Mass Inc. Airload (Mms)26g
Maximum Linear Excursion (Xmax)5.25mm
Surface Area of Cone (Sd)128.7cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.91"
Baffle Cutout Diameter5.67"
Depth3.17"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3109Hz
Vented Volume0.25ft³
Vented F356Hz
