Dayton Audio CE Series CE32A-4 1-1/4" Mini Speaker Driver 4 Ohm

Dayton Audio
Part #285-103

Dayton Audio CE Series CE32A-4 1-1/4" Mini Speaker Driver 4 Ohm

Dayton Audio
Part #285-103
Model: CE32A-4
Great-looking and great-sounding, the CE32A-4 miniature speaker driver from Dayton Audio has the goods in a surprisingly small package. Its high-quality design has big-speaker features like an elegant black-anodized aluminum cone, rubber surround, and a neodymium motor. 4 ohm impedance.
Key Features
  • Black anodized aluminum inverted dome diaphragm
  • Rubber surround and cloth spider for low distortion
  • High-energy double neodymium magnet motor
Your Price: $3.98
MSRP: $6.99
Save $3.01 (43%)
Bulk Pricing
Quantity:Qty: 1-3 $3.98/ea
Quantity:Qty: 4+$3.57/ea
Order in the next 10 hr 59 min to ship today. Details

3313In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio CE Series CE32A-4 1-1/4" Mini Speaker Driver 4 Ohm

Dayton Audio is pleased to introduce the new Commercial Engineering (CE) Series of small loudspeaker drivers. Engineers, designers, and integrators will benefit from how effortlessly these speaker components satisfy the diverse demands associated with consumer electronics and audio-enabled projects.

Multiple types and styles are available within the Dayton Audio CE Series driver family. Each was produced to provide excellent audio quality no matter what the overall system design goals may be, and to suit a wide spectrum of engineering requirements. These versatile yet economical loudspeakers are available in sizes from 28 mm (1-1/8") to 90 mm (3-1/2") in diameter, and with power ratings from 1.5 watts to 5 watts continuous RMS power.

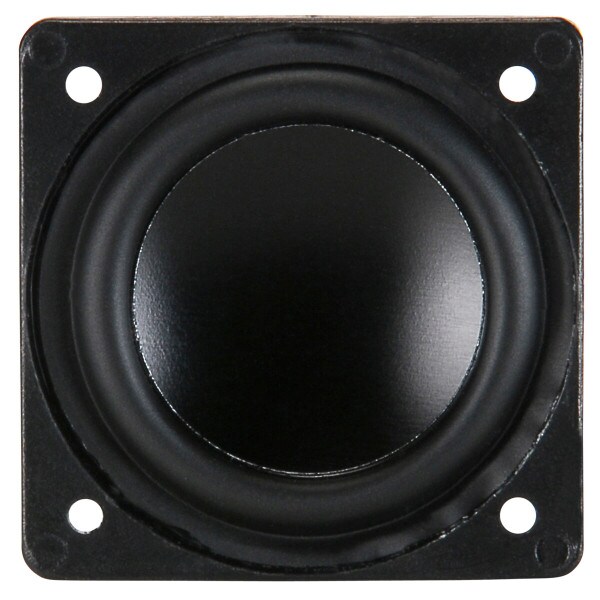

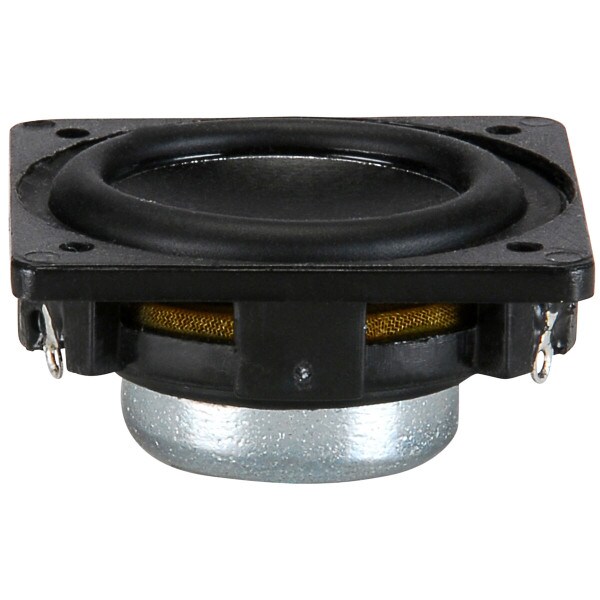

The CE32A-4 provides features you’d expect from a much larger driver, in a size that’s perfect for miniature applications that require wide dispersion and rich, natural sound. Its high-quality design features an elegant black-anodized concave aluminum diaphragm, rubber surround, textile spider, high-output neodymium motor, and a square injection-molded frame drilled for conventional mounting.

Product Details

BrandDayton Audio
ModelCE32A-4
Part Number285-103
UPC848791000423
Unit of MeasureEach
Weight0.065

Product Specifications

Nominal Diameter1"
Power Handling (RMS)2 Watts
Power Handling (MAX)4 Watts
Impedance4Ω
Frequency Response240 to 20,000Hz
Sensitivity81dB 2.83V/1m
Voice Coil Diameter0.5"

Thiele-Small Parameters

Resonant Frequency (Fs)262Hz
DC Resistance (Re)3.6Ω
Voice Coil Inductance (Le)0.15mH
Mechanical Q (Qms)2.86
Electromagnetic Q (Qes)1.24
Total Q (Qts)0.86
Compliance Equivalent Volume (Vas)0.00052ft³
Mechanical Compliance of Suspension (Cms)0.69mm/N
BL Product (BL)1.59T·m
Maximum Linear Excursion (Xmax)0.5mm
Surface Area of Cone (Sd)3.92cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter1.26"
Baffle Cutout Diameter1.24"
Depth0.57"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.000799ft³
Sealed F3280.1Hz
Vented Volume0.00233ft³
Vented F3134.3Hz
