  • Dayton Audio APA102 Class D Stereo 60 WPC Amplifier Auto On

CLEARANCE Dayton Audio APA102 Class D Stereo 60 WPC Amplifier Auto On

Dayton Audio
Part #300-591

CLEARANCE Dayton Audio APA102 Class D Stereo 60 WPC Amplifier Auto On

Dayton Audio
Part #300-591
Model: APA102
Connect with the Dayton Audio APA102 amplifier and enjoy the convenience of auto-on and auto-source switching technology that makes playing your favorite music a breeze. Use this affordable, versatile amp when more power is needed in a multi-zone system, or in a powerful, audiophile-grade stereo hi-fi setup.
Key Features
  • Delivers precise, uncolored audio power
  • Convenient signal sensing power on and trigger modes
  • Dual stereo RCA line level inputs switch sources automatically
  • RCA stereo looping outputs to feed additional zone amplifier(s)
  • A/B speaker selector simplifies connectivity
  • 5-way binding posts on both sets of L/R speaker outputs
Similar items that may interest you:
See all items in Legacy Items

Overview

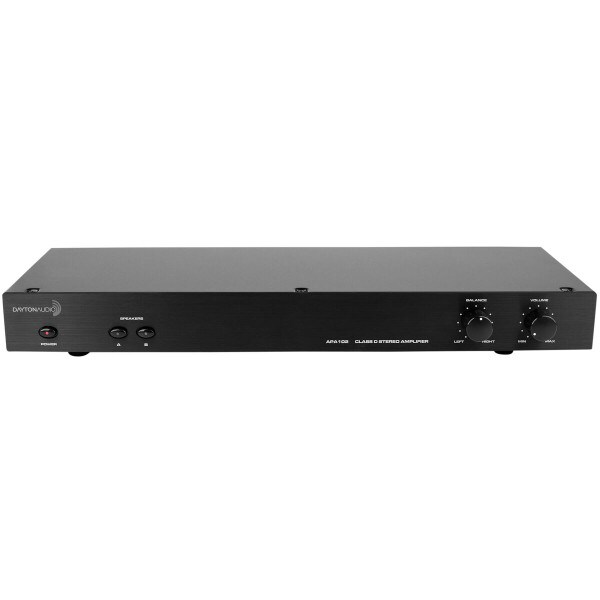

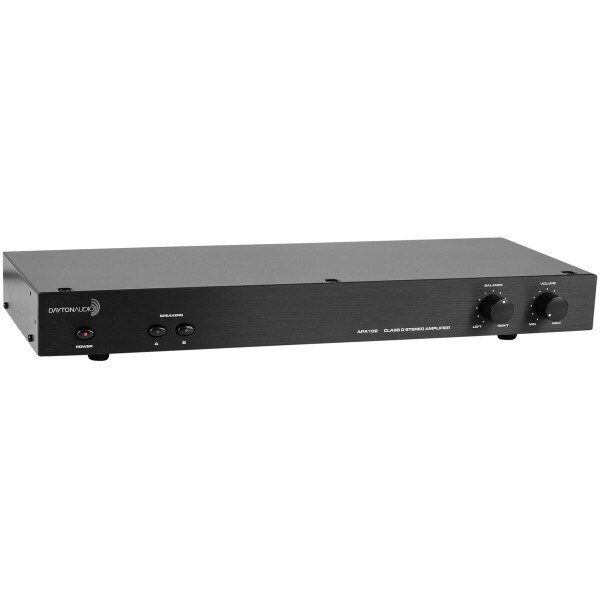

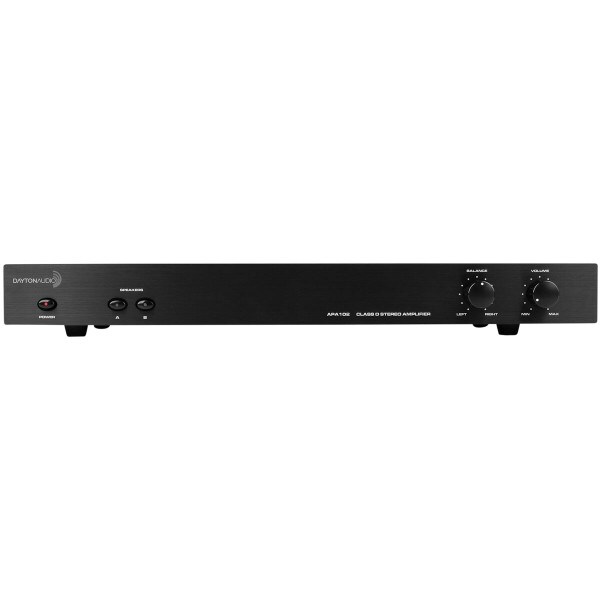

Dayton Audio APA102 Class D Stereo 60 WPC Amplifier Auto On

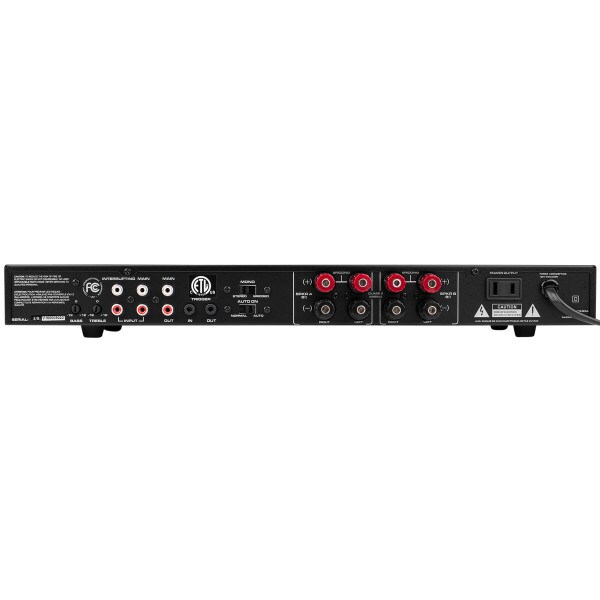

The Dayton Audio APA102 high fidelity power amplifier switches sources and powers on (in auto-on mode) automatically when a source signal is detected. Two-sources, two-channels, and Class D topology make Dayton Audio's APA102 amplifier the heavyweight in its class. The APA102 features two pairs of RCA line level inputs and a loop-out from the second source to feed additional zones, receivers, or other devices. Use the APA102 for additional power when connected to a multi-zone audio system, or by itself to power a stereo speaker system.

The APA102 is rated at 75 watts RMS per channel into 4 ohms, and 60 watts RMS per channel into 8 ohms. In bridged mono mode, both amplifier channels are combined for high-power monaural output. The amplifier is rated at 160 watts RMS into a single 8 ohm load when bridged. Each amplifier output channel incorporates robust protection circuitry for reliability and safety. Rack ears are included.

Specifications: • Output power: 60 watts RMS @ 8 ohms, 75 watts RMS @ 4 ohms, 160 watts RMS @ 8 ohms (minimum impedance) bridged mono • Total harmonic distortion: <1.0% @ 1 kHz • Signal to noise ratio: 100 dB, A-weighted • Frequency response: 10-30,000 Hz +0.0 dB/-3.0 dB • Input sensitivity: 700 mV • Power: 120 VAC, 60 Hz, 1.7A • Dimensions: 16.9" W x 7.65" D x 2.15" H.

Product Details

BrandDayton Audio
ModelAPA102
Part Number300-591
UPC848791003806
Unit of MeasureEach
Weight6.2

Product Specifications

Power (RMS/Channel 8 ohms)51 - 100 Watts
Weight Range< 10 lbs.
