CLEARANCE Dayton Audio APA100 Class AB Stereo Amplifier 60 Watts Per Channel

Dayton Audio
Part #300-590

CLEARANCE Dayton Audio APA100 Class AB Stereo Amplifier 60 Watts Per Channel

Dayton Audio
Part #300-590
Model: APA100
Connect with the Dayton Audio APA100 amplifier and enjoy the convenience of auto-on and auto-source switching technology that makes playing your favorite music a breeze. Use this affordable, versatile amp when more power is needed in a multi-zone system, or in a powerful, audiophile-grade stereo hi-fi setup.
Key Features
  • Delivers precise, uncolored audio power
  • Convenient auto-on and auto-source switching features

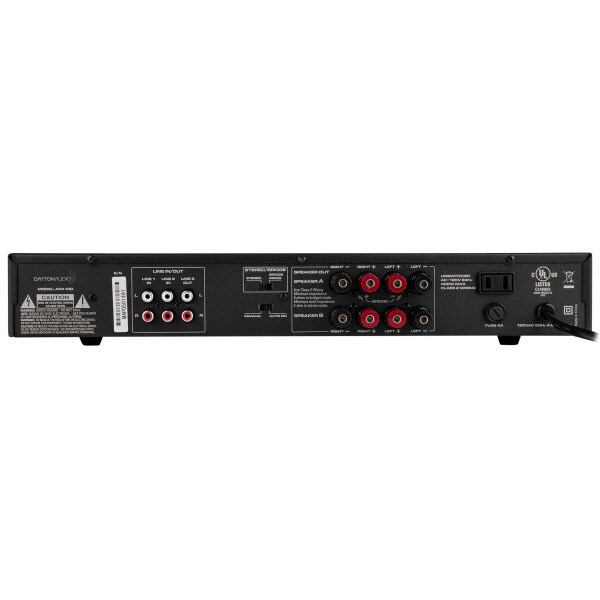

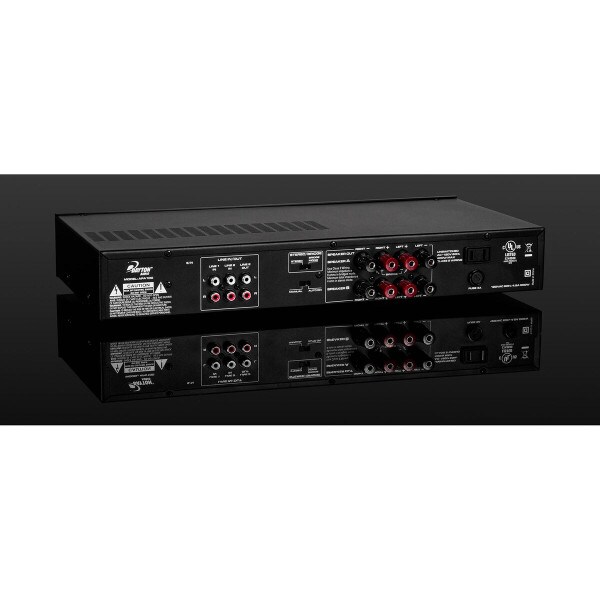

  • Dual stereo RCA line level inputs switch sources automatically
  • RCA stereo looping outputs to feed additional zone amplifier(s)
  • A/B speaker selector simplifies connectivity
  • 5-way binding posts on both sets of L/R speaker outputs
Similar items that may interest you:
See all items in Legacy Items

Overview

Dayton Audio APA100 Class AB Stereo Amplifier 60 Watts Per Channel

The Dayton Audio APA100 high fidelity power amplifier switches sources and powers on (in auto-on mode) automatically when a source signal is detected. Two-sources, two-channels, and Class AB topology make Dayton Audio's APA100 amplifier the heavyweight in its class. The APA100 features two pairs of RCA line level inputs and a loop-out from the second source to feed additional zones, receivers, or other devices. Use the APA100 for additional power when connected to a multi-zone audio system, or by itself to power a stereo speaker system.

The APA100 is rated at 75 watts RMS per channel into 4 ohms, and 60 watts RMS per channel into 8 ohms. In bridged mono mode, both amplifier channels are combined for high-power monaural output. The amplifier is rated at 160 watts RMS into a single 8 ohm load when bridged. Each amplifier output channel incorporates robust protection circuitry for reliability and safety.

Specifications: • Output power: 60 watts RMS @ 8 ohms, 75 watts RMS @ 4 ohms, 160 watts RMS @ 8 ohms (minimum impedance) bridged mono • Total harmonic distortion: <1.0% @ 1 kHz • Signal to noise ratio: 100 dB, A-weighted • Frequency response: 10-30,000 Hz +0.0 dB/-3.0 dB • Input sensitivity: 900 mV (50 watts @ 8 ohms) • Crosstalk: >70 dB @ 1,000 Hz • Power: 120 VAC, 60 Hz, 4.2A • Dimensions: 16.5" W x 8" D x 2.5" H.

c|net Review - March 2, 2016

Product Details

BrandDayton Audio
ModelAPA100
Part Number300-590
UPC848791001703
Unit of MeasureEach
Weight11.85

Product Specifications

Power (RMS/Channel 8 ohms)51 - 100 Watts
Weight Range10 to 19 lbs.
