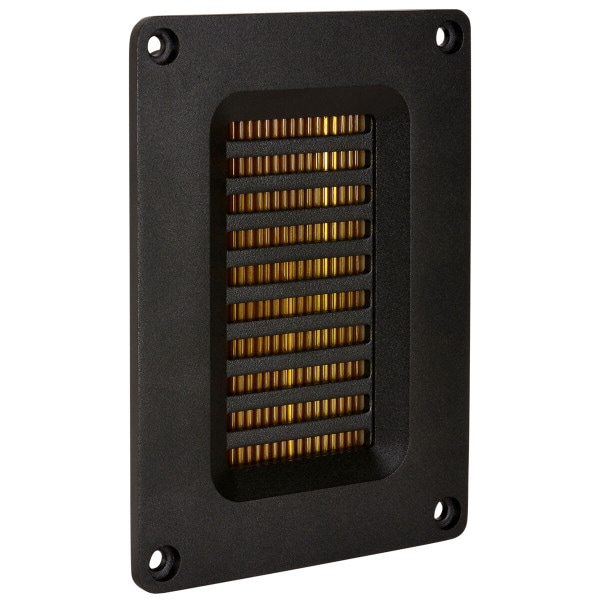

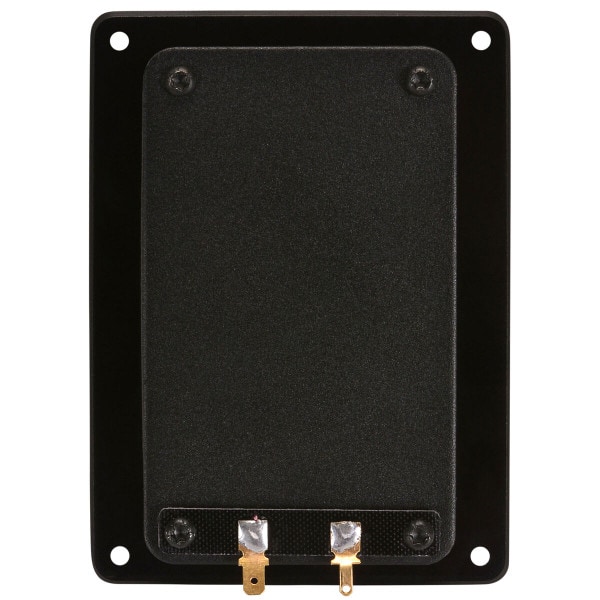

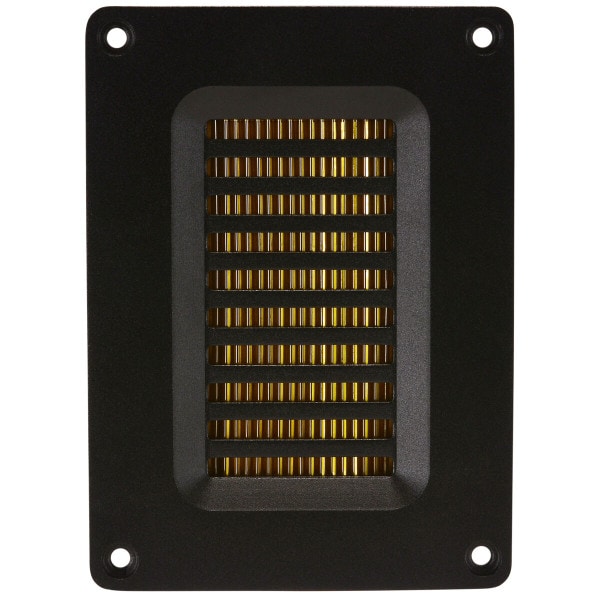

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio
Part #275-093

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm

Dayton Audio
Part #275-093
Model: AMT3-4
Dayton Audio's AMT3-4 Air Motion Transformer mid-tweeter brings clarity, transient speed, and musical finesse to your design. The large AMT-technology diaphragm and high-strength neo motor offer extremely wide bandwidth and high sensitivity.
Key Features
  • Robust metal faceplate provides secure, stable mounting
  • Powerful, lightweight neodymium magnet structure for low distortion and high efficiency
  • Wide bandwidth facilitates integration with large midwoofers
  • 25 watt RMS power handling
Your Price: $74.98
+ FREE SHIPPING
MSRP: $142.99
Save $68.01 (48%)
Bulk Pricing
Quantity:Qty: 1-3 $74.98/ea
Quantity:Qty: 4+$71.98/ea
Order in the next 0 hr 51 min to ship today. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio AMT3-4 Air Motion Transformer Tweeter 4 Ohm

The Dayton Audio AMT3-4's generous radiating area extends response from lower frequencies into the upper midrange, making the transducer great for use as a wideband "mid-tweeter" in a 2-way design with larger woofers, or as a midrange in a 3-way design. The robust metal faceplate adds the distinctive feel of quality, while the sealed rear chamber design eliminates the need for a separate enclosure chamber.

Dayton Audio AMT (Air Motion Transformer) tweeters use groundbreaking transducer technology from the original Heil Air Motion Transformer to provide ultra-clean, detailed, and dynamic treble output. The pleated ribbon diaphragm of an AMT provides a large acoustic radiating area condensed into a compact chassis, for extremely high output and improved power handling.

Product Details

BrandDayton Audio
ModelAMT3-4
Part Number275-093
UPC848791000638
Unit of MeasureEach
Weight1.45

Product Specifications

Cutout Diameter4.45" x 2.68
Tweeter TypeAMT Air Motion Transformer
Power Handling (RMS)25 Watts
Impedance4Ω
Frequency Response1,900 to 18,000Hz
Sensitivity93dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1900Hz
DC Resistance (Re)3Ω
Mechanical Q (Qms)6.26
Total Q (Qts)6.15

Mounting Information

Overall Outside Diameter5.12" x 3.74"
Depth0.75"
